- Capacity: 750 VA / 600 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 120 VAC ± 5%
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Communication: USB, Serial, SNMP, Relay, EPO
- Management software: PowerPanel® Business Edition
- Remote management: Yes
- Warranty: 3 year
General | |
UPS Topology | Line Interactive |
Energy Saving | GreenPower UPS™ Bypass |
Active PFC Compatible | Yes |
Input | |
Voltage | Nominal 120V VAC |
Frequency Range | 57 – 63 Hz |
Plug Type | NEMA 5-15P |
Plug Style | Right Angle, 45° Offset Right |
Cord Length | 10 ft |
Input Voltage Range | 80 – 150 VAC |
Output | |
VA | 750 VA |
Watts | 600 W |
Automatic Voltage Regulation |
Boost 1 +30%
Boost 2 +14% Buck -12% |
On Battery Voltage | 120 VAC ± 5% |
On Battery Frequency | 60 Hz ± 1% |
On Battery Waveform | Sine Wave |

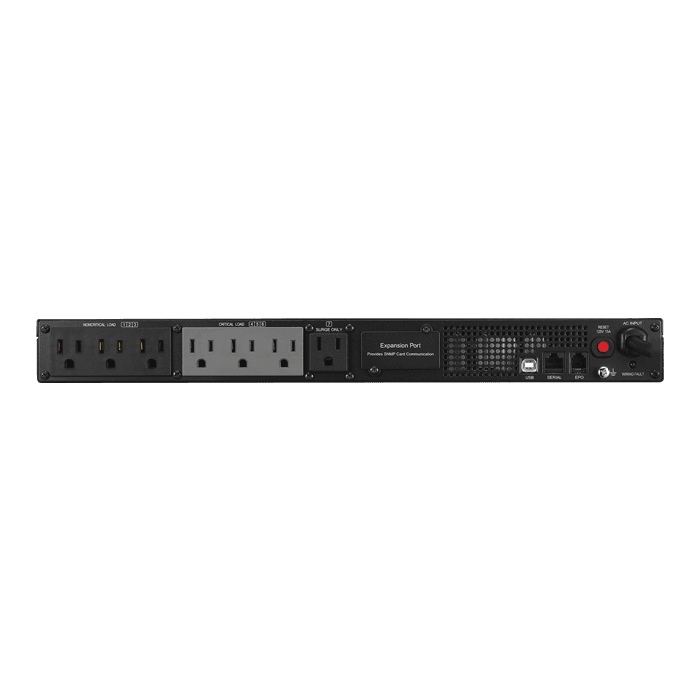

Outlet Type | NEMA 5-15R |
Outlets – Total | 7 |
Outlets – Critical Load | 3 |
Outlets – Battery & Surge Protected | 6 |
Outlets – Surge-Only Protected | 1 |
Overload Protection |
Internal Circuitry Limiting
Circuit Breaker |
Transfer Time | 10 ms |
Rated Power Factor | 0.8 |
Battery | |
Runtime at Half Load | 10 minutes |
Runtime at Full Load | 3 minutes |
Battery Type | Sealed Lead-Acid |
Battery Size | 6V/7Ah |
Battery Quantity | 4 |
Hot-Swappable | Yes |
User Replaceable | Yes |
Replacement Battery Cartridge | RB0670X4A |
Replacement Battery Cartridge Quantity | 1 |
Typical Recharge Time | Less than 6 hours (90% charged) |
Surge Protection & Filtering | |
Surge Suppression | 1,030 J |
EMI/RFI Filtration | Yes |
Management & Communications | |
Multifunction LCD Panel |
Displays:Current/Load Level
Runtime Battery Level Battery In Use Input Voltage Output Voltage Overload Silent Mode Normal Mode |
HID Compliant USB Port | Yes |
Serial Port | Yes |
Emergency Power Off (EPO) Port | Yes |
LED Indicators |
Power On
Wiring Fault |
Audible Alarms |
On Battery
Low Battery Overload |
Software | PowerPanel® Business Edition |
SNMP / HTTP Remote Monitoring | Yes, with optional RMCARD205 |
Contact Closure | No |
Cable Management |
USB Cable
Serial Cable EPO Cable |
Physical | |
Rack Size | 1U |
Form Factor | Rack/Tower |
Dimensions – W×H×D (in) | 17.25 × 1.75 × 15.8 inches |
Weight (lbs) | 30.7 lbs |
Shipping Dimensions – W×H×D (in) | 20.8 × 6.2 × 19.4 inches |
Shipping Weight (lbs) | 37.3 lbs |
Environmental | |
Operating Temperature | 32 – 104 °F (0 – 40 °C) |
Operating Humidity | 0 – 95% (non-condensing) |
Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
Maximum Operating Elevation | 10,000 ft (3,000 m) |
Maximum Storage Elevation | 50,000 ft (15,000 m) |
AC Mode Thermal Dissipation | 46 BTU/Hr |
Certifications | |
Safety |
UL1778
CSA C22.2 NO.107.3-05 FCC DOC Class A |
Environmental | RoHS Compliant |
Warranty | |
Product Warranty | 3 Years Limited |
Connected Equipment Guarantee | Lifetime |
