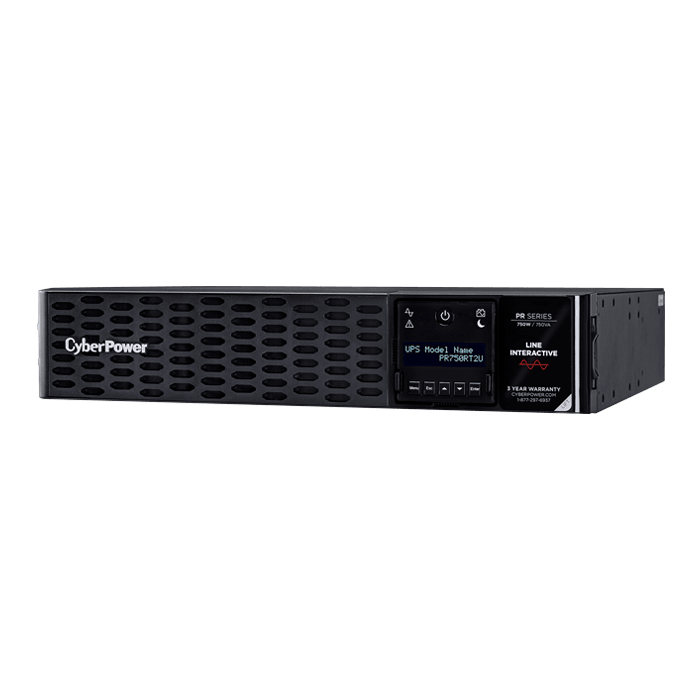

Smart App Sinewave PR750RT2U, LCD, 750 VA/750 W, Sine Wave, 2U Rackmount/Tower UPS
Quantity:
- SKU: 12361410
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: PR750RT2U
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$465.95
- Capacity: 750 VA / 750 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 100-125 VAC ± 5%
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Outlet types: 8 × NEMA 5-15R
- Communication: USB, Serial, SNMP, Relay, EPO
- Management software: PowerPanel® Business Edition
- Remote management: Yes, with optional RMCARD205
- Warranty: 3 year
- ENERGY STAR® qualified: Yes
| General | |
| UPS Topology | Line Interactive |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| ENERGY STAR® Compliant | Yes |
| Active PFC Compatible | Yes |
| Input | |
| Input Voltage Range | 70 – 155 VAC |
| Frequency Range | 47 – 63 Hz |
| Plug Type | NEMA 5-15P |
| Plug Style | Right Angle, 45° Offset Right |
| Cord Length (ft) | 10 |
| Output | |
| VA | 750 VA |
| Watts | 750 W |
| Automatic Voltage Regulation | Double boost, single buck |
| On Battery Voltage | 100/110/120/125 Vac ± 5% |
| On Battery Frequency | 50/60 Hz ± 1% |
| On Battery Waveform | Sine Wave |
| Outlet Type | NEMA 5-15R |
| Outlets – Total | 8 |
| Outlets – Critical Load | 4 |
| Outlets – Battery & Surge Protected | 8 |
| Outlets – Surge-Only Protected | 0 |
| Overload Protection | Circuit Breaker (15A) |
| Transfer Time | 4 ms typical |
| Rated Power Factor | 1 |
| Battery | |
| Runtime at Half Load | 19 minutes |
| Runtime at Full Load | 7.5 minutes |
| Battery Type | Sealed Lead-Acid |
| Battery Size | 12V/5Ah |
| Battery Quantity | 4 |
| Hot-Swappable | Yes |
| User Replaceable | Yes |
| Replacement Battery Cartridge | RB1250X4 |
| Replacement Battery Cartridge Quantity | 1 |
| Typical Recharge Time | 3 Hrs |
| Surge Protection & Filtering | |
| Surge Suppression | 2430 J |
| EMI/RFI Filtration | Yes |
| Phone RJ11 / Ethernet RJ45 | 1-in, 1-out |
| Coaxial Protection RG6 | Optional 1-in, 1-out (to replace RJ45) |
| Management & Communications | |
| Multifunction LCD Panel | 47 Settings (27 setup and control items + 20 status updates and log menus) |
| HID Compliant USB Port | Yes |
| Serial Port | Yes |
| Emergency Power Off (EPO) Port | Yes |
| LED Indicators | Power on, Line mode, Battery mode, Fault, Night mode, Wiring Fault |
| Audible Alarms | Battery Mode, Low Battery, Overload, Overcharge, Overheat |
| Software | PowerPanel® Business Edition |
| SNMP / HTTP Remote Monitoring | Yes – with optional RMCARD205 |
| Communication Cable | USB Cable, Serial Cable, EPO Cable |
| Physical | |
| Rack Size | 2U |
| Color | Black |
| Form Factor | Rack/Tower |
| Dimensions – W×H×D (in) | 17.1 x 3.4 x 16.2 inches |
| Weight (lbs) | 43.2 lbs |
| Environmental | |
| Operating Temperature | 32 °F to 104°F (0°C to 40°C) |
| Operating Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 5°F to 113°F (-15°C to 45°C) |
| Maximum Operating Elevation | 10,000 ft (3,000 m) |
| Maximum Storage Elevation | 50,000 ft (15,000 m) |
| AC Mode Thermal Dissipation | 41.3 BTU/Hr |
| Certifications | |
| Safety |
UL1778 cUL107.1 FCC Class B |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | 3 Years Limited |
| Connected Equipment Guarantee | Lifetime |
