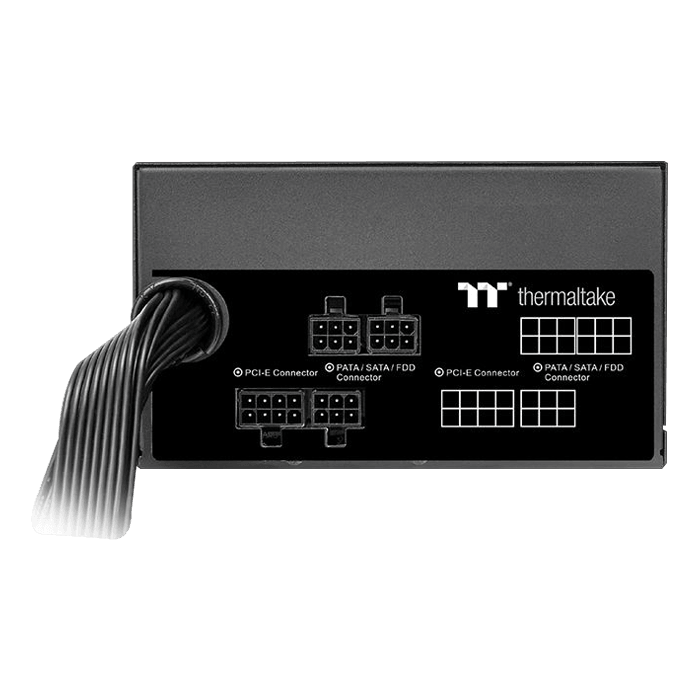

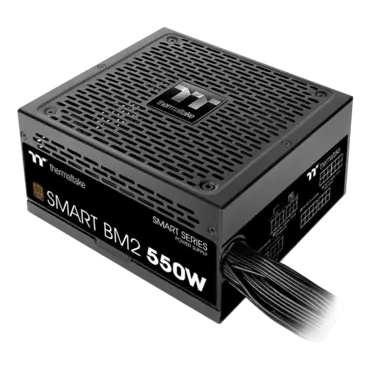

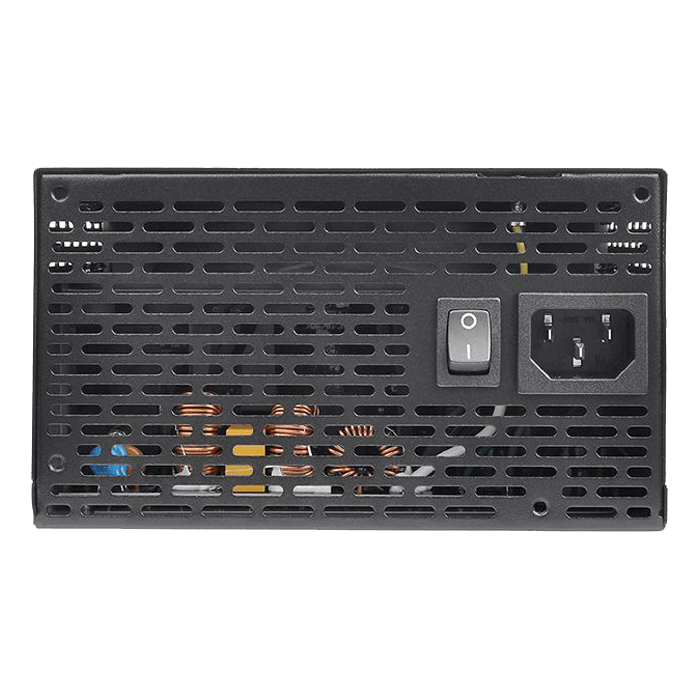

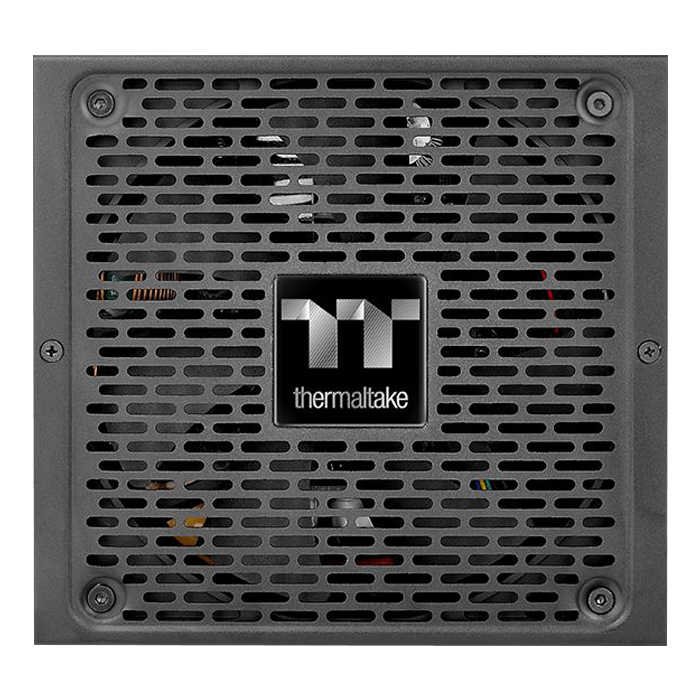

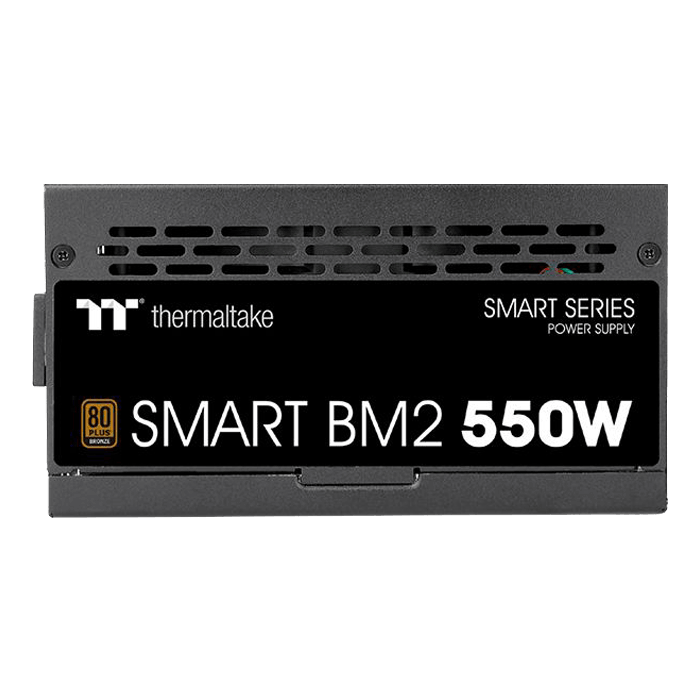

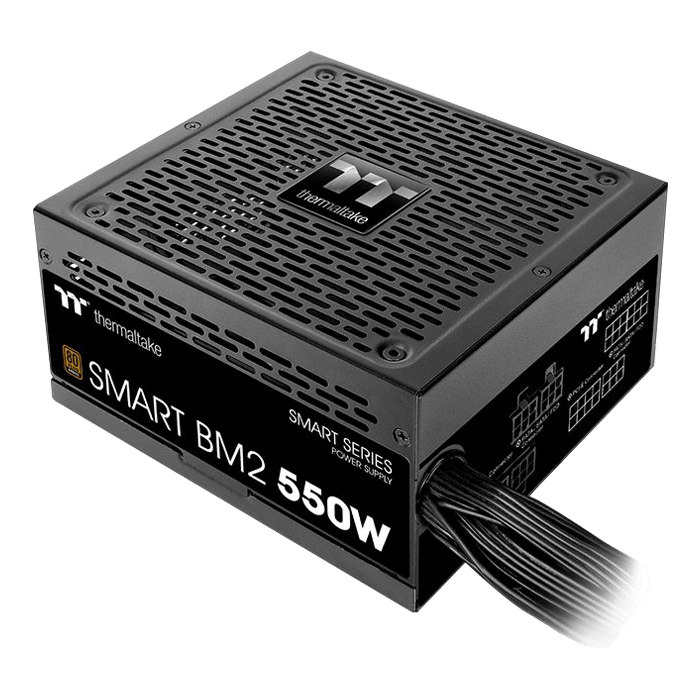

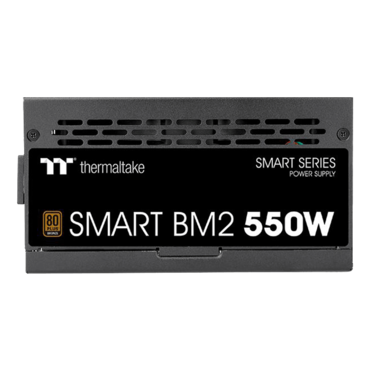

Smart BM2 SP-550AH3CCB-B, 80 PLUS Bronze 550W, Semi Modular, ATX Power Supply

SKU: 13649390

Manufacturer: THERMALTAKE

MPN: PS-SPD-0550MNFABU-1

Availability: Available


Price: $82.75
or as low as $3/month
Quantity:

Smart BM2 550W - TT Premium Edition

Built to deliver 80 PLUS Bronze efficiency with up to 85% of it, the Smart BM2 series is available in 450W/550W/650W/750W. Constructed with a 140mm rifle bearing fan, Japanese main capacitors and other premium components, the Smart BM2 550W delivers a continuous and stable power output at 40?, allowing near silent operation and reliable performance. With an ample 5-year warranty, the Smart BM2 550W is able to satisfy the market, where value-oriented users are looking for a new power supply with all the latest features.

P/N PS-SPD-0550MNFABU-1
WATTS 550W
RGB FAN No
MODEL SP-550AH3CCB-B
TYPE ATX 12V v2.4 and EPS v2.92
MAX. OUTPUT CAPACITY 550W
PEAK OUTPUT CAPACITY 660W
COLOR Black
DIMENSION ( W / H / D ) 150mm(W) x 86mm(H) x 160mm(D)
PFC (POWER FACTOR CORRECTION) Active PFC
POWER GOOD SIGNAL 100-500 msec
HOLD UP TIME > 12msec at 80% of full load at 230Vac input
INPUT CURRENT 8A max.
INPUT FREQUENCY RANGE 47Hz -63Hz
INPUT VOLTAGE 100V-240V~
OPERATING TEMPERATURE 0°C to +40°C
OPERATING HUMIDITY 20% to 90%,non-condensing
STORAGE TEMPERATURE -20 °C to +70 °C
STORAGE HUMIDITY 5% to 95%, non-condensing
COOLING SYSTEM 140mm Fan: 2300 R.P.M. ± 10%
EFFICIENCY Meet 80 PLUS®Bronze at 115Vac input.
MTBF 100,000 hrs minimum
SAFETY APPROVAL OVP/OCP/cTUVus/TUV/CE/FCC/S-mark/EAC/BSMI/C-TICK/CCC
PCI-E 6+2PIN 2
