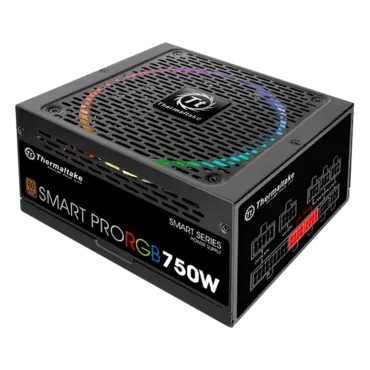

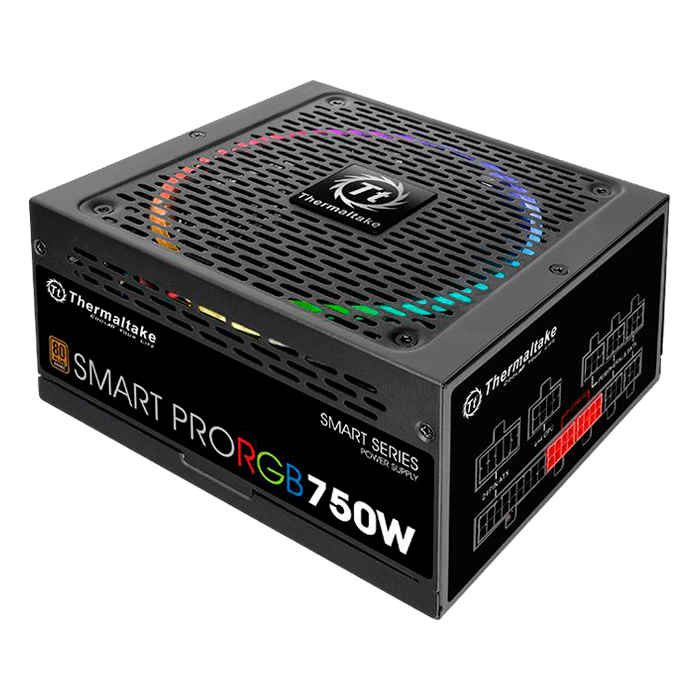

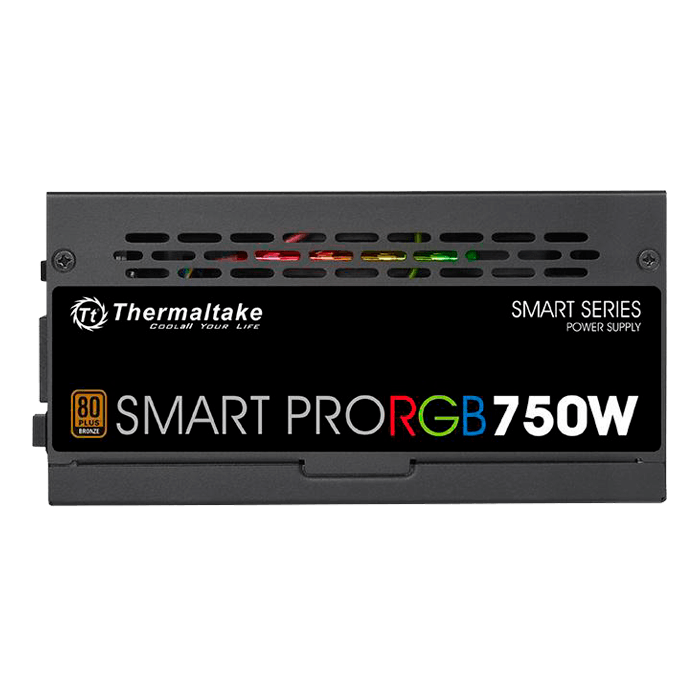

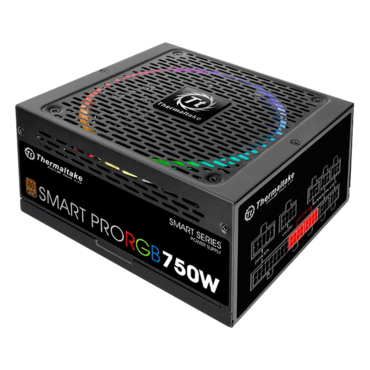

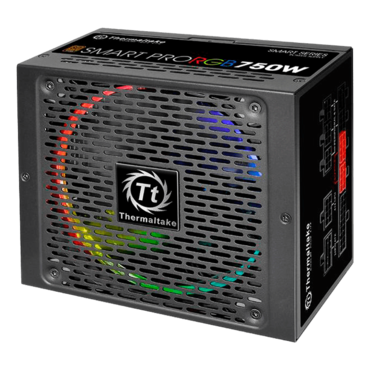

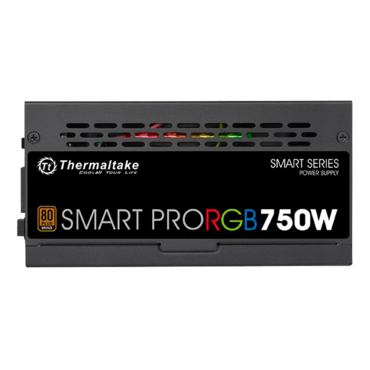

Smart Pro RGB, 80 PLUS Bronze 750W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 11023743
- Manufacturer: THERMALTAKE
- MPN: PS-SPR-0750FPCBUS-R
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$100.54
Smart Pro RGB, 80 PLUS Bronze 750W, Fully Modular, ATX Power Supply
Smart Pro RGB 750W Bronze Fully Modular

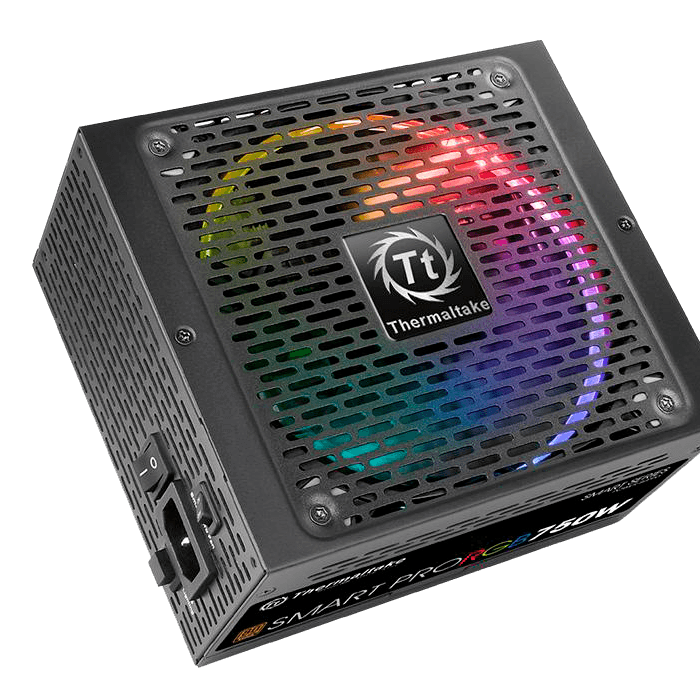

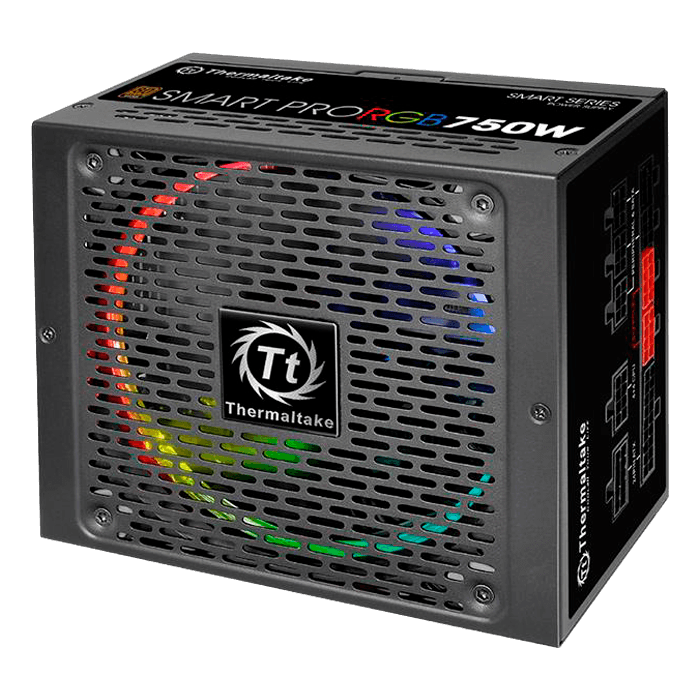

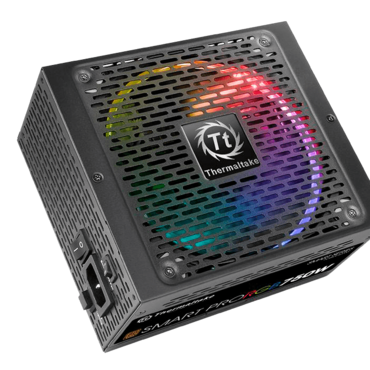

Thermaltake, as the pioneer who incorporates RGB lights into PSU, has launched the Thermaltake Smart Pro RGB Bronze Series, coming with a pre-installed, patented 256 Colors Riing 14 RGB fan with 5 lighting modes to choose from and built-in memory.
Featuring capacities ranging from 650W to 850W and 80 PLUS Bronze certification, Smart Pro RGB Bronze Series adopts the highest quality components and fully modular design that always accommodate any mainstream build under any circumstances.
| P/N | PS-SPR-0750FPCBxx-R |
| Short P/N | SPR-0750F-R |
| Model | SPR-750AH3FSB-R |
| Type | ATX 12V v2.4 and EPS v2.92 |
| Max. Output Capacity | 750W |
| Peak Output Capacity | 900W |
| Color | Black |
| Dimension ( W / H / D ) | 150mm(W) x 86mm(H) x 170mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 16msec at 75% load |
| Input current | 12A |
| Input Frequency Range | 50Hz - 60Hz |
| Input Voltage | 100V – 240V~ |
| Operating Temperature | 0°C to + 40°C |
| Operating Humidity | 20% to 90%,non-condensing |
| Storage Temperature | -40°C to + 70°C |
| Storage Humidity | 20% to 95%, non-condensing |
| Cooling System | 14cm hydraulic bearing fan |
| Efficiency | Meet 80 PLUS® Bronze at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/cTUVus/TÜV SÜD/FCC/CCC/BSMI/EAC |

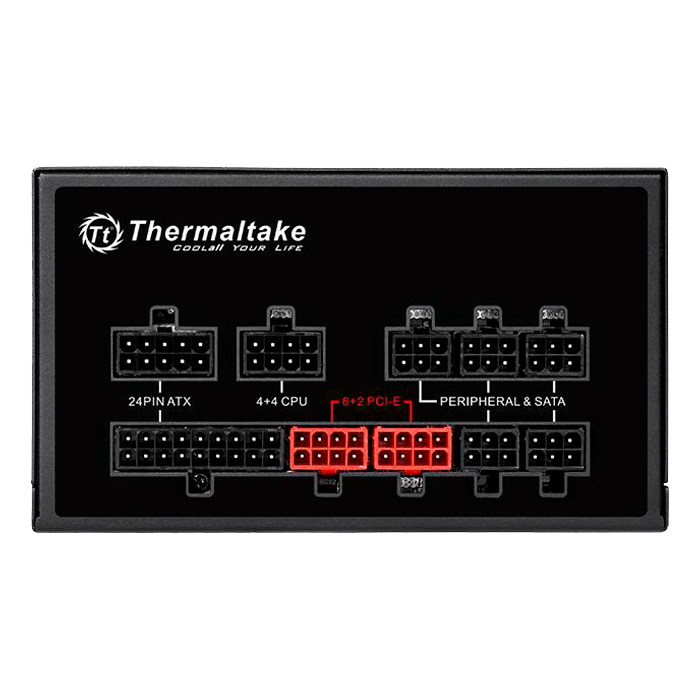

| Connector | PCI-E 6+2pin X 4 |
| AC INPUT | Input Voltage: 100V-240V~ Input Current: 12A Frequency: 50Hz-60Hz |
||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 22A | 22A | 62.5A | 0.3A | 2.5A |
| Max Output Power | 120W | 750W | 3.6W | 12.5W | |
| Total Power | 750W | ||||
