Smart-UPS X SMX3000LVNC, LCD, 3000 VA/2700 W, Sine Wave, 4U Rackmount/Tower UPS

  • SKU: 7814785
  • Manufacturer: APC
  • MPN: SMX3000LVNC
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
Smart-UPS X SMX3000LVNC, LCD, 3000 VA/2700 W, Sine Wave, 4U Rackmount/Tower UPS

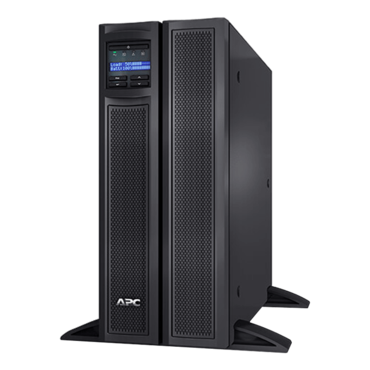

Protect your servers, switches, routers, telecom equipment with the APC Smart-UPS SMX3000LVNC. This UPS provides backup battery power in the event of a power outage, monitoring and safeguarding your equipment from harmful power conditions, spikes and surges. An automatic green mode ensures you are operating at the highest level of efficiency while smart battery management maximizes performance. Use the intuitive LCD interface and PowerChute software to configure settings and monitor usage. This Smart-UPS has a 2,700-watt power capacity, 10 outlets, three switchable outlet groups and the capability to add external battery packs to extend the runtime needed for network applications. This model converts between tower and rack-mount for convenient installation and includes a network management card to manage and control the UPS remotely.

  • 2700 Watts /2880 VA
  • Input 120V /Output 120V
  • Rack Height 4 U
  • Interface Port SmartSlot
  • Extended runtime model
Brand APC
Series Smart-UPS
Model SMX3000LVNC
International Version 120V
Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input Connection NEMA L5-30P
VA Rating 2880VA
Watts 2700W
Output Voltage 120V
Output Frequency 50/60Hz +/- 3 Hz

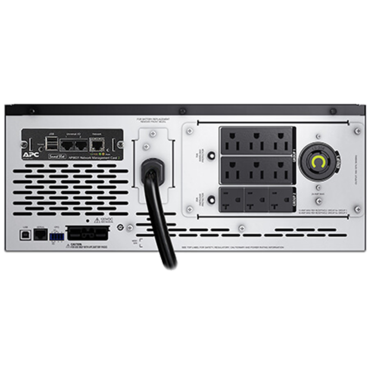

Outlets 10
Outlet Type 1 x NEMA L5-30R
6 x NEMA 5-15R
3 x NEMA 5-20R
Battery Recharge Time 3 hour(s)
Battery Replaceable APCRBC143
Alarms Alarm when on battery : distinctive low battery alarm : configurable delays
Interface Port Smart-Slot
Management Software YES
Approvals BSMI, CSA, EN 50091-2, EN 55022 Class A, ENERGY STAR (USA), FCC Part 15 Class A, NOM, TUV, UL 1778, VCCI Class A
Rackmountable 4U
Surge Protection
Surge Energy Rating 540 joules
Features APC Smart-UPS,2700 Watts /2880 VA,Input 120V /Output 120V, Interface Port SmartSlot, Extended runtime model, Rack Height 4 U
Dimensions & Weight
Dimensions 7.00" x 19.00" x 17.00" (H x W x D)
Weight 85.00 lbs.
Package Contents
Package Contents APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V with Network Card, CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, USB cable, Web/SNMP Management Card
