Main | |
Main Input Voltage | 120 V |
Other Input Voltage |
100 V 110 V 127 V |
Main Output Voltage | 120 V |
Other Output Voltage |
100 V 110 V 127 V |
Kw Rating | 2700 W |
rated power in VA | 2880 VA |

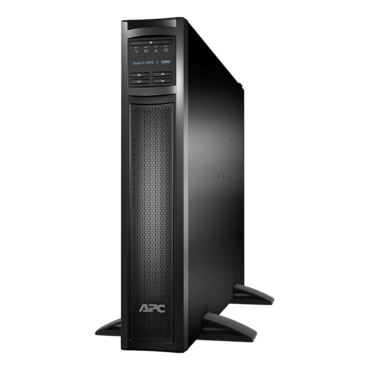

Product or Component Type | Uninterruptible power supply (UPS) |
Input Connection Type | NEMA L5-30P |
output connection type |
3 NEMA 5-15R 3 NEMA 5-20R 1 NEMA L5-30R |
Number of rack unit | 2U |
Cable length | 8 ft (2.4 m) |
Number of cables | 1 |
Battery Type | Lead-Acid battery |
Provided equipment |
CD with software Documentation CD Installation guide Rack mounting hardware Rack Mounting brackets Rack Mounting support rails Removable support feet Smart UPS signalling RS-232 cable USB cable |
Range of Product | Smart-UPS |
Complementary | |
Communication port type | SmartSlot |
Batteries & Runtime | |
Run Time |
View Runtime Graph
|
Efficiency |
View Efficiency Graph
|
Extendable Run Time | 1 |
Included Battery Modules | 0 |
Battery Slots Empty | 0 |
Typical recharge time | 3 h |
RBC Quantity | 1 |
Battery life | 3…5 year(s) |
Replacement battery |
APCRBC117
|
Battery Charge Power (Watts) | 245 W rated |
General | |
Number of power module | 0 |
Number of power module filled slots | 0 |
Number of power module free slots | 0 |
product web sub-family | TAA compliance |
Redundant | No |
Physical | |
color | Black |
Height | 3.35 in (8.5 cm) |
Width | 17.01 in (43.2 cm) |
Depth | 26.26 in (66.7 cm) |
Net Weight | 84.77 lb(US) (38.45 kg) |
Mounting Location | Front |
Mounting preference | Lower |
Mounting Mode | Rack-mounted |
Two post mountable | 0 |
USB compatible | Yes |
Input | |
Efficiency at full load | 70...153 V |
Input Frequency | 50/60 Hz +/- 3 Hz auto-sensing |
Output | |
Harmonic distortion | Less than 5% |
Maximum configurable power in VA | 2880 VA |
Max Configurable Power (Watts) | 2700 W |
Transfer Time |
2-4 ms 4ms typical : 8ms maximum |
Topology | Line Interactive |
Wave type | Sine wave |
Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz sync to mains |
Conformance | |
Product Certifications |
BSMI CSA NOM TAA compliance TÜV VCCI Class A |
Environmental | |
Acoustic level | 55 dBA |
Online Thermal Dissipation | 276 Btu/h |
Operating altitude | 0...10000 ft |
Ambient air temperature for operation | 32…104 °F (0…40 °C) |
Ambient Air Temperature for Storage | 5…113 °F (-15…45 °C) |
Storage altitude | 0…50000 ft (0.0000000000…15240.0000000000 m) |
Relative Humidity | 0…95 % |
Storage Relative Humidity | 0…95 % |
Communications & Management | |
control panel | Multi-function LCD status and control console |
Emergency Power Off (EPO) | Yes |
Free slots | 1 |
Control panel | LED status display with on line : on battery : replace battery and overload indicators |
Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering | |
Surge energy rating | 540 J |
Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m |
Ordering and shipping details | |
GTIN | 731304340423 |
Country of origin | US |
Packing Units | |
Unit Type of Package 1 | PCE |
Number of Units in Package 1 | 1 |
Package 1 Height | 9.57 in (24.3 cm) |
Package 1 Width | 34.21 in (86.9 cm) |
Package 1 Length | 23.46 in (59.6 cm) |
Package 1 Weight | 100.002 lb(US) (45.36 kg) |
Pallet unit layers | 2 |
Pallet layers | 4 |
Contractual warranty | |
Warranty | 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available |
