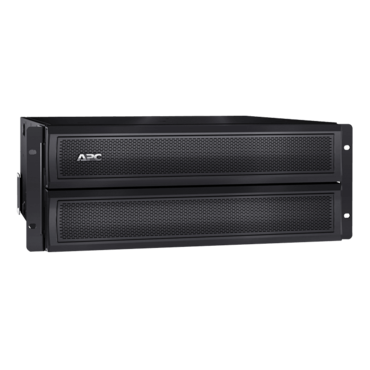

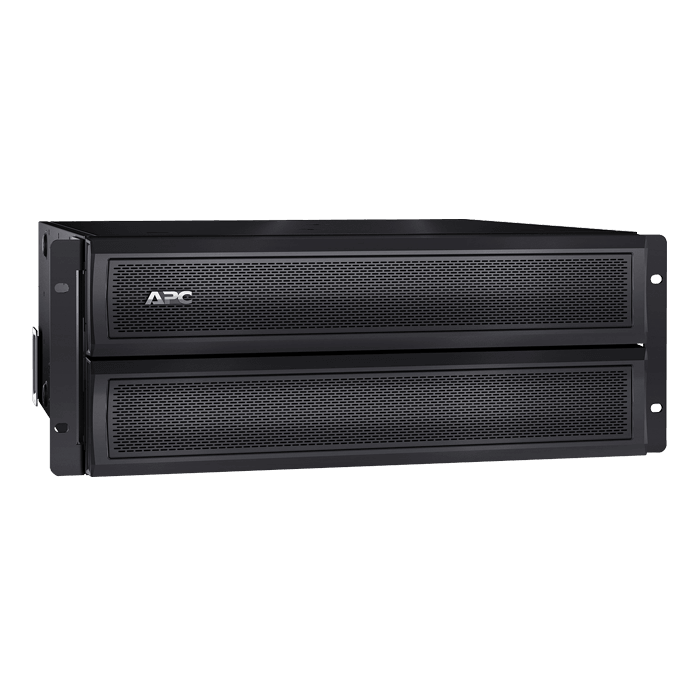

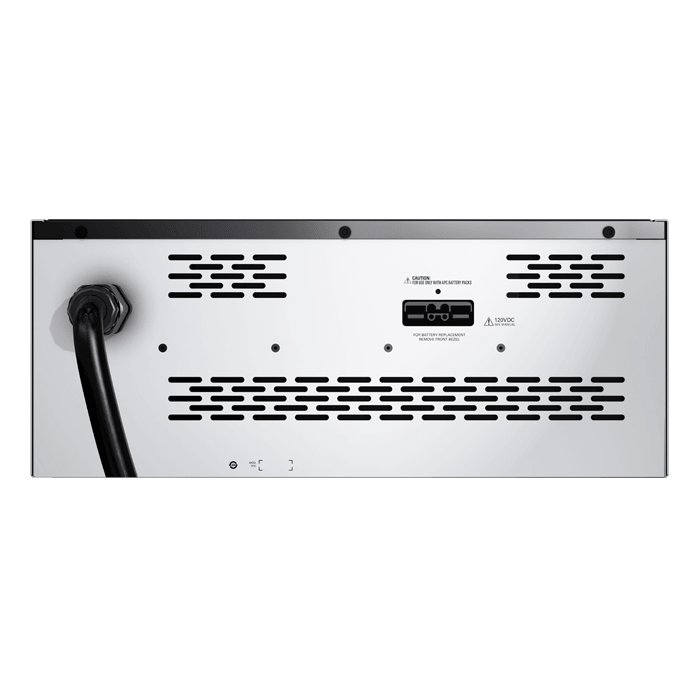

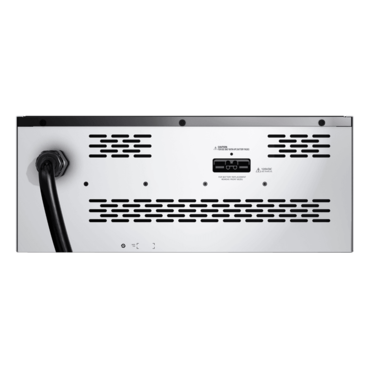

Smart-UPS X-Series SMX120BP, 120V/1200VAh, Black, Tower/4U Rackmount Battery Pack

Quantity:
  • SKU: 7814788
  • Manufacturer: APC
  • MPN: SMX120BP
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$857.72
Quantity:
Technical Information
  • Battery Characteristics: Spill-proof/Maintenance-free
  • Battery Chemistry: Sealed Lead Acid
  • Hot Swappable: Yes
  • Minimum Battery Life: 3 Year
  • Maximum Battery Life: 5 Year
  • Capacity: 1200 VAh
  • Output Voltage: 120
Physical Characteristics
  • Height: 17"
  • Width: 7"
  • Depth: 19"
  • Weight (Approximate): 134.28 lb
Miscellaneous
  • Compatibility:

    APC Smart-UPS:

      • SMX2000RMLV2
      • SMX2200RMHV2U
      • SMX2200RMLV2U
      • SMX3000RMHV2U
      • SMX3000RMHV2UNC
      • SMX3000RMLV2U
      • SMX3000RMLV2UNC

Main
Product or Component Type Battery
Number of rack unit 4U
Battery Type Lead-Acid battery
Provided Equipment Installation guide
Rack Mounting brackets
Batteries & Runtime
Battery blocks per string 10
device mounting Enclosed battery cartridge
Included Battery Modules 0
Battery Slots Empty 0
RBC Quantity 2
Battery Voltage 120 V
Replacement battery
APCRBC143
APCRBC143US
Physical
Color Black
Height 17.01 in (43.2 cm)
Widtd 7.01 in (17.8 cm)
Deptd 19.02 in (48.3 cm)
Net Weight 134.28 lb(US) (60.91 kg)
Mounting Mode Rack-mounted
Environmental
Ambient air temperature for operation 32…104 °F (0…40 °C)
Relative Humidity 0…95 %
Operating altitude 0...10000 ft
Ambient Air Temperature for Storage 5…113 °F (-15…45 °C)
Storage Relative Humidity 0…95 %
Storage altitude 0…50000 ft (0.00…15240.00 m)
Ordering and shipping details
Category 11309-APC RESALE PRODUCTS
Discount Schedule APC1
GTIN 731304292562
Returnability No
Country of origin PH
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 12.99 in (33 cm)
Package 1 Widtd 23.07 in (58.6 cm)
Package 1 Lengtd 24.92 in (63.3 cm)
Package 1 Weight 144.29 lb(US) (65.45 kg)
Contractual warranty
Warranty 2 years repair or replace
