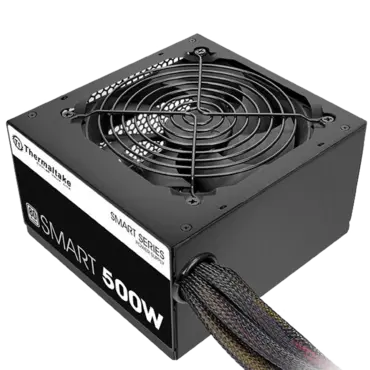

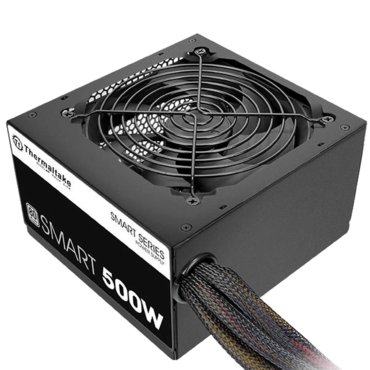

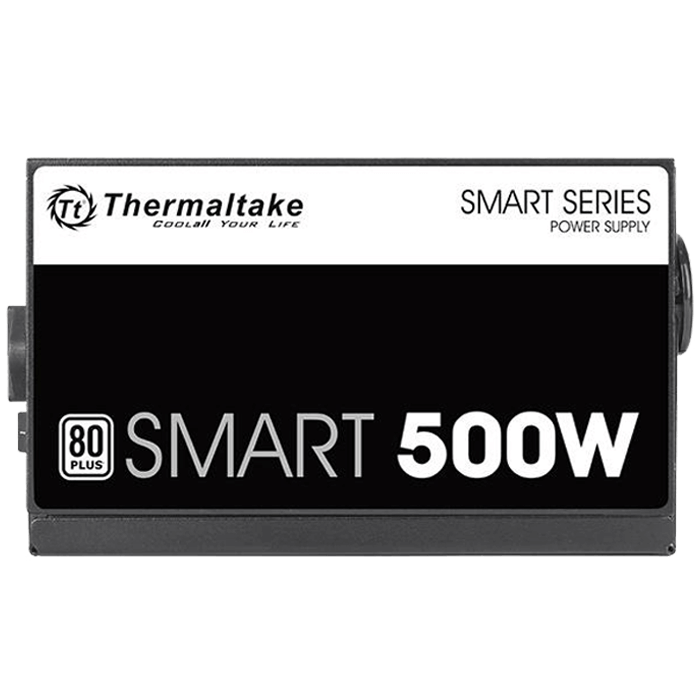

Smart White, 80 PLUS Standard 500W, No Modular, ATX Power Supply

SKU: 10013136

Manufacturer: THERMALTAKE

MPN: PS-SPD-0500NPCWUS-W

Availability: Available


Price: $52.81
or as low as $2/month
Quantity:
P/N PS-SPD-0500NPCW-W
Short P/N

SPD-0500P

Model

SP-500AH2NKW

Type

Intel ATX 12V 2.3

Max. Output Capacity 500W
Color

Black

Dimension (H x W x D)

86mm x 150mm x 140mm

PFC (Power Factor Correction)

Active PFC

Power Good Signal

100-500 msec

Hold Up Time

16msec (minimum) within 60% load

Input current

8A max

Input Frequency Range

50 Hz - 60 Hz

Input Voltage 100Vac – 240Vac
Operating Temperature 5° to +40°
Operating Humidity 20% to 85%,non-condensing
Operating Temperature -40° to +55°
Operating Humidity

10% to 95%, non-condensing

Cooling System 120mm Fan: 1800 R.P.M. ± 10%
Efficiency

82-86% efficiency @ 20-100% load

MTBF

100,000 hrs minimum

Safety Approval

CE/CB/TUV/ UL/ FCC

PCI-E Connector

PCI-E 6+2pin x 2

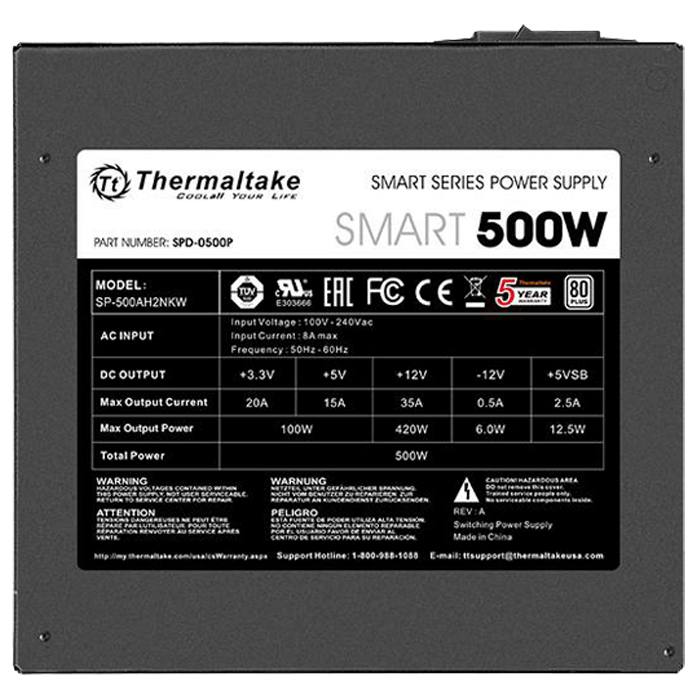

AC INPUT Input Voltage: 100V - 240V
Input Current: 8A max
Frequency: 50Hz - 60Hz
DC OUTPUT +3.3V +5V +12V -12V +5Vsb
Max Output Current 20A 15A 35A 0.5A 2.5A
Max Output Power 100W 420W 6.0W 12.5W
Continuous Power 500W
