Smart White, 80 PLUS Standard 600W, No Modular, ATX Power Supply
Quantity:
- SKU: 10013139
- Manufacturer: THERMALTAKE
- MPN: PS-SPD-0600NPCWUS-W
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$57.94
| P/N | PS-SPD-0600NPCW**-W |
| Short P/N |
SPD-0600P |
| Model |
SP-600AH2NKW |
| Type | Intel ATX 12V 2.3 |
| Max. Output Capacity |
600W |
| Color |
Black |
| Dimension (H x W x D) |
86mm x 150mm x 140mm |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal |
100-500 msec |
| Hold Up Time |
16msec (minimum) within 60% load |
| Input current |
10A max |
| Input Frequency Range | 50 Hz - 60 Hz |
| Input Voltage |
100Vac - 240Vac |
| Operating Temperature |
5° to +40° |
| Operating Humidity | 20% to 85%,non-condensing |
| Operating Temperature |
-40° to +55° |
| Storage Humidity |
10% to 95%, non-condensing |
| Cooling System | 120mm Fan: 1800 R.P.M. ± 10% |
| Efficiency |
82-86% efficiency @ 20-100% load |
| MTBF |
100,000 hrs minimum |
| Safety Approval |
CE/CB/TUV/ UL/ FCC |
| PCI-E Connector |
PCI-E 6+2pin x 2 |

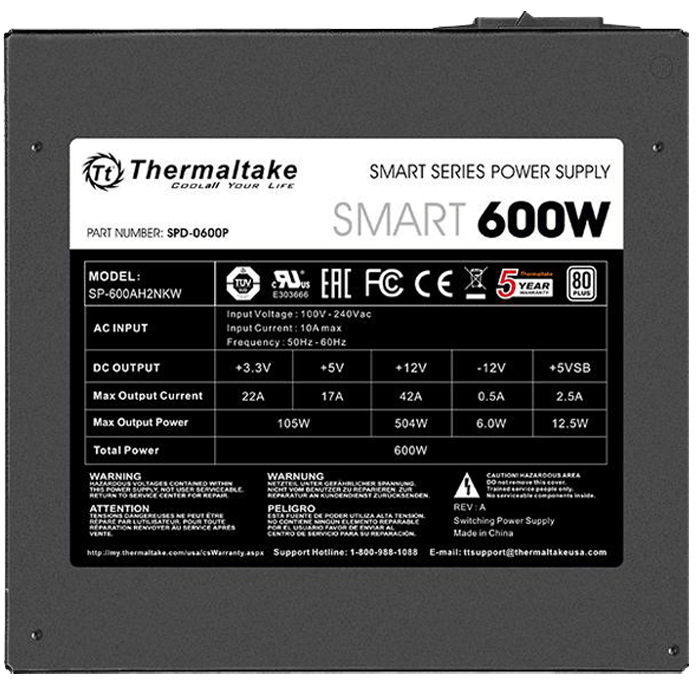

| AC INPUT | Input Voltage: 100V - 240V Input Current: 10A max Frequency: 50Hz - 60Hz |
||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 22A | 17A | 42A | 0.5A | 2.5A |
| Max Output Power | 105W | 504W | 6.0W | 12.5W | |
| Continuous Power | 600W | ||||
