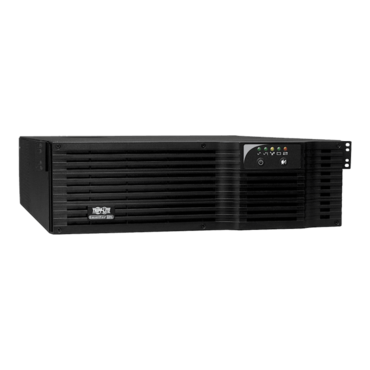

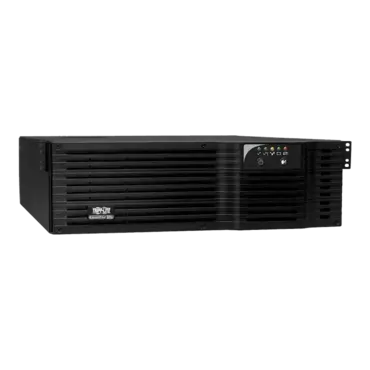

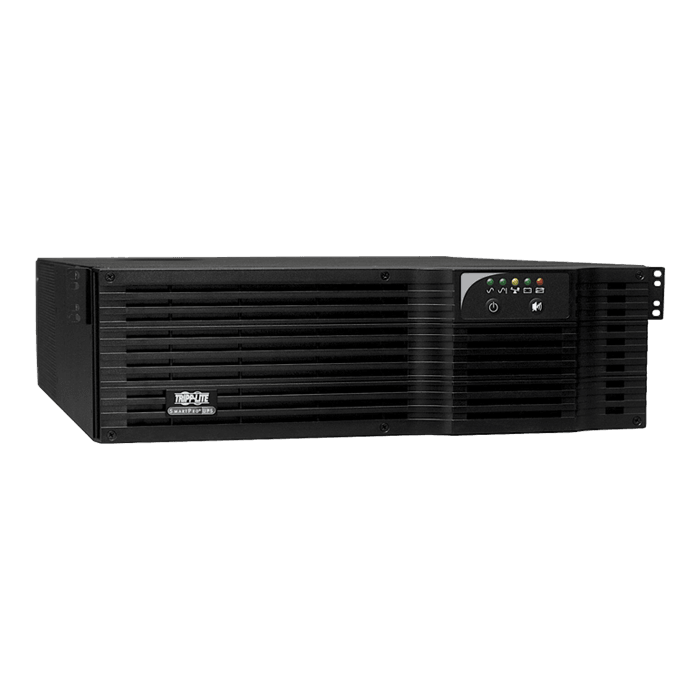

SmartPro SMART5000TEL3U, 5000 VA/3750 W, Sine Wave, 3U Rackmount/Tower UPS
Quantity:
- SKU: 4449
- Manufacturer: TRIPP LITE
- MPN: SMART5000TEL3U
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$3,559.02
SmartPro SMART5000TEL3U, 5000 VA/3750 W, Sine Wave, 3U Rackmount/Tower UPS
Tripp Lite's SMART5000TEL3U intelligent, line interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and surges in a compact rackmount housing. Completely self-contained UPS system occupies only 3 rack spaces (3U) in a standard 19 inch rack, making this model one of the smallest 5kVA UPS systems available. Included accessories support mounting 4 post rack enclosures. Large capacity 5000 VA/3750 watt UPS system accepts raw AC input, adjusting output to regulated 208V levels. One pair of 120V outlets support up to 600VA monitors and other low voltage accessories. Includes slot for internal Network Management Card option. Includes 2 DB9 and 2 USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Five outlets (two L6-20R, one L6-30R and two 5-15R) allow the connection of high current 20 and 30 amp 208V connectors and up to two 120V devices (max 600VA at 120V).
- arge 5000VA/3750-watt output capacity accommodates solitary large loads or multiple low-power loads
- High power density 5kVA power module occupies only 3 rack spaces(3U)
- 16 minutes half-load runtime(with a continuous load 2500VA; much longer runtime available at smaller loads)
- Line-interactive voltage regulation corrects severe brownouts and overvoltages without using battery power
- High voltage output supports 208V server, internetworking and telecom applications
- Pair of 120V outlets supports up to 600VA for standard 120V monitors, voicemail and other low-power networking devices

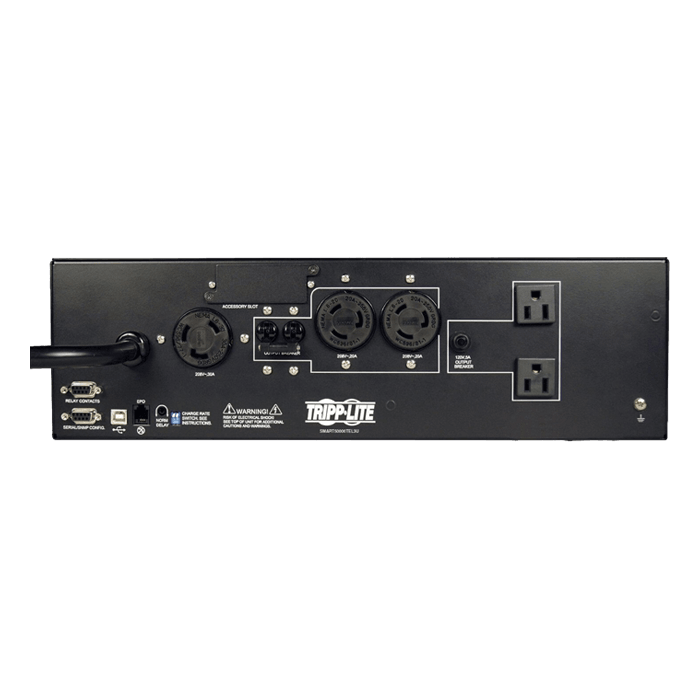

- Five total outlets(two L6-20R, one L6-30R and two 5-15R)
- Diagnostic LEDs provide visual indication of 17 separate performance conditions
- USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert
- 4 built-in communications ports(2 USB/2 DB9) for remote monitoring and unattended shutdown
- Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLXand SNMPWEBCARD
- Emergency Power Off(EPO) interface for emergency shutoff in large facilities
- Hot-swappable/user-replaceable batteries allow on-site battery replacement through the front panel without powering off connected equipment or removing the UPS from the rack
- Intelligent battery management system extends battery life
- UPS ships fully assembled and ready for installation; no time-consuming user battery connections required
Package Includes
- SMART5000TEL3U UPS System
- USB & DB9 Serial cabling
- Mounting hardware
- Instruction manual
| OUTPUT | |
|---|---|
| Output Volt Amp Capacity (VA) | 5000 |
| Output kVA Capacity (kVA) | 5 |
| Output Watt Capacity (Watts) | 3750 |
| Output kW Capacity (kW) | 3.75 |
| Output Capacity Details | 120V 5-15R outlets are limited to 450 watts (max.) |
| Power Factor | 0.75 |
| Nominal Output Voltage(s) Supported | 208V |
| Nominal Voltage Details | 120V output is limited to 450 watts |
| Frequency Compatibility | 60 Hz |
| Output Voltage Regulation (Line Mode) | 208 & 120V (-6%, +20%) |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
| Output Receptacles | (2) 5-15R; (2) L6-20R; (1) L6-30R |
| Output Circuit Breakers | 20A double pole breaker supports L6-20R outlets, 5A breaker supports 5-15R outlets, L6-30R outlet is unbreakered |
| Output AC Waveform (AC Mode) | Sine wave |
| Output AC Waveform (Battery Mode) | Pure Sine wave |
| INPUT | |
| Rated input current (Maximum Load) | 24A |
| Nominal Input Voltage(s) Supported | 208V AC |
| UPS Input Connection Type | L6-30P |
| UPS Input Cord Length (ft.) | 10 |
| Recommended Electrical Service | 30A 208V |
| Input Phase | Single-Phase |
| BATTERY | |
| Full Load Runtime (min.) | 8.5 min. (3750w) |
| Half Load Runtime (min.) | 20 min. (1875w) |
| DC System Voltage (VDC) | 48 |
| Battery Recharge Rate (Included Batteries) | Less than 4 hours from 10% to 90% (typical, full load discharge) |
| Internal UPS Replacement Battery Cartridge | RBC94-3U(quantity 3) |
| Battery Access | Front panel battery access door |
| Battery Replacement Description | Hot-swappable, user replaceable batteries |
| Expandable Runtime | No |
| VOLTAGE REGULATION | |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 167 to 260 |
| Overvoltage Correction | Input voltages between 228V and 260V are reduced by 12% |
| Undervoltage Correction | Input voltages between 167V and 194V are boosted by 12% |
| USER INTERFACE, ALERTS & CONTROLS | |
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation |
| Alarm Cancel Operation | Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status |
| Audible Alarm | Audible alarm indicates power-failure, overload and low-battery conditions |
| LED Indicators | 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status |
| SURGE / NOISE SUPPRESSION | |
| UPS AC Suppression Joule Rating | 1020 |
| UPS AC Suppression Response Time | Instantaneous |
| EMI / RFI AC Noise Suppression | Yes |
| PHYSICAL | |
| Installation Form Factors Supported with Included Accessories | 4 post 19 inch rackmount |
| Installation Form Factors Supported with Optional Accessories | 2 post rackmount(2POSTRMKITHD); Tower(2-9USTAND) |
| Primary Form Factor | Rackmount |
| UPS Power Module Dimensions (hwd, in.) | 5.25 x 17.5 x 25 |
| Rack Height (U Spaces) | 3 |
| Minimum Required Rack Depth (inches) | 30 |
| UPS Power Module Weight (lbs.) | 143.3 |
| UPS Shipping Dimensions (hwd / in.) | 11.2 x 23 x 31.5 |
| Shipping Weight (lbs.) | 181.9 |
| Cooling Method | Fan |
| UPS Housing Material | Steel |
| Minimum Required Rack Depth (mm) | 762 |
| Primary UPS Height (mm) | 133 |
| Primary UPS Width (mm) | 444 |
| Primary UPS Depth (mm) | 635 |
| Shipping Height (mm) | 284 |
| Shipping Width (mm) | 584 |
| Shipping Depth (mm) | 800 |
| ENVIRONMENTAL | |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Relative Humidity | 0 to 95%, non-condensing |
| AC Mode BTU / Hr. (Full Load) | 366 |
| Battery Mode BTU / Hr. (Full Load) | 1423 |
| AC Mode Efficiency Rating (100% Load) | 97% |
| COMMUNICATIONS | |
| Communications Interface | USB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface |
| Network Management Cards | SNMPWEBCARD; TLNETCARD; WEBCARDLX |
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions |
| PowerAlert Software | For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| Communications Cable | USB and DB9 cabling included |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| LINE / BATTERY TRANSFER | |
| Transfer Time | 7 milliseconds (AC to Battery), 1 millisecond (Battery to AC) |
| Low Voltage Transfer to Battery Power (Setpoint) | 167 |
| High Voltage Transfer to Battery Power (Setpoint) | 260 |
| SPECIAL FEATURES | |
| Grounding Lug | Back panel grounding lug |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| High Availability UPS Features | Hot swappable batteries |
| Green Energy-Saving Features | Greater than 95% efficiency - GREEN UPS |
| CERTIFICATIONS | |
| UPS Certifications | Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15 Category A (EMI) |
| WARRANTY | |
| Product Warranty Period (Worldwide) | 2-year warranty, 3 year with registration. Note: Registration is requiredfor 3-year warranty. |
| Connected Equipment Insurance (U.S., Canada & Puerto Rico) | $250,000 Ultimate Lifetime Insurance |
