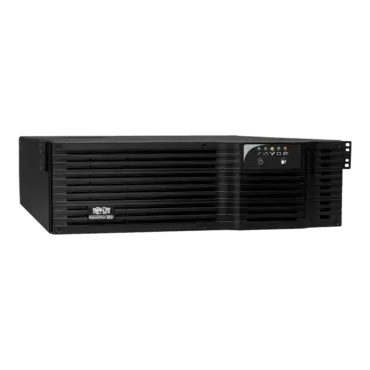

SmartPro SMART5000TEL3U, 5000VA/3750W, 208V/120V, 5 Outlets, Black, 3U Rackmount UPS

SKU: 4449

Manufacturer: TRIPP LITE

MPN: SMART5000TEL3U

Availability: Available


Price: $2,467.60
or as low as $80/month
Quantity:

Tripp Lite's SMART5000TEL3U intelligent, line interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and surges in a compact rackmount housing. Completely self-contained UPS system occupies only 3 rack spaces (3U) in a standard 19 inch rack, making this model one of the smallest 5kVA UPS systems available. Included accessories support mounting 4 post rack enclosures. Large capacity 5000 VA/3750 watt UPS system accepts raw AC input, adjusting output to regulated 208V levels. One pair of 120V outlets support up to 600VA monitors and other low voltage accessories. Includes slot for internal Network Management Card option. Includes 2 DB9 and 2 USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Five outlets (two L6-20R, one L6-30R and two 5-15R) allow the connection of high current 20 and 30 amp 208V connectors and up to two 120V devices (max 600VA at 120V).

  • arge 5000VA/3750-watt output capacity accommodates solitary large loads or multiple low-power loads
  • High power density 5kVA power module occupies only 3 rack spaces(3U)
  • 16 minutes half-load runtime(with a continuous load 2500VA; much longer runtime available at smaller loads)
  • Line-interactive voltage regulation corrects severe brownouts and overvoltages without using battery power
  • High voltage output supports 208V server, internetworking and telecom applications
  • Pair of 120V outlets supports up to 600VA for standard 120V monitors, voicemail and other low-power networking devices

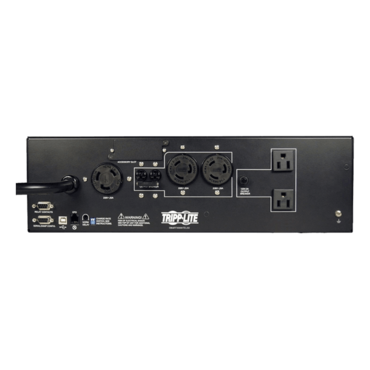

  • Five total outlets(two L6-20R, one L6-30R and two 5-15R)
  • Diagnostic LEDs provide visual indication of 17 separate performance conditions
  • USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert
  • 4 built-in communications ports(2 USB/2 DB9) for remote monitoring and unattended shutdown
  • Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLXand SNMPWEBCARD
  • Emergency Power Off(EPO) interface for emergency shutoff in large facilities
  • Hot-swappable/user-replaceable batteries allow on-site battery replacement through the front panel without powering off connected equipment or removing the UPS from the rack
  • Intelligent battery management system extends battery life
  • UPS ships fully assembled and ready for installation; no time-consuming user battery connections required

Package Includes

  • SMART5000TEL3U UPS System
  • USB & DB9 Serial cabling
  • Mounting hardware
  • Instruction manual
OUTPUT
Output Volt Amp Capacity (VA) 5000
Output kVA Capacity (kVA) 5
Output Watt Capacity (Watts) 3750
Output kW Capacity (kW) 3.75
Output Capacity Details 120V 5-15R outlets are limited to 450 watts (max.)
Power Factor 0.75
Nominal Output Voltage(s) Supported 208V
Nominal Voltage Details 120V output is limited to 450 watts
Frequency Compatibility 60 Hz
Output Voltage Regulation (Line Mode) 208 & 120V (-6%, +20%)
Output Voltage Regulation (Battery Mode) +/- 5%
Output Receptacles (2) 5-15R; (2) L6-20R; (1) L6-30R
Output Circuit Breakers 20A double pole breaker supports L6-20R outlets, 5A breaker supports 5-15R outlets, L6-30R outlet is unbreakered
Output AC Waveform (AC Mode) Sine wave
Output AC Waveform (Battery Mode) Pure Sine wave
INPUT
Rated input current (Maximum Load) 24A
Nominal Input Voltage(s) Supported 208V AC
UPS Input Connection Type L6-30P
UPS Input Cord Length (ft.) 10
Recommended Electrical Service 30A 208V
Input Phase Single-Phase
BATTERY
Full Load Runtime (min.) 8.5 min. (3750w)
Half Load Runtime (min.) 20 min. (1875w)
DC System Voltage (VDC) 48
Battery Recharge Rate (Included Batteries) Less than 4 hours from 10% to 90% (typical, full load discharge)
Internal UPS Replacement Battery Cartridge RBC94-3U(quantity 3)
Battery Access Front panel battery access door
Battery Replacement Description Hot-swappable, user replaceable batteries
Expandable Runtime No
VOLTAGE REGULATION
Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 167 to 260
Overvoltage Correction Input voltages between 228V and 260V are reduced by 12%
Undervoltage Correction Input voltages between 167V and 194V are boosted by 12%
USER INTERFACE, ALERTS & CONTROLS
Switches 2 Switches control off/on power status and alarm-cancel/self-test operation
Alarm Cancel Operation Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
Audible Alarm Audible alarm indicates power-failure, overload and low-battery conditions
LED Indicators 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating 1020
UPS AC Suppression Response Time Instantaneous
EMI / RFI AC Noise Suppression Yes
PHYSICAL
Installation Form Factors Supported with Included Accessories 4 post 19 inch rackmount
Installation Form Factors Supported with Optional Accessories 2 post rackmount(2POSTRMKITHD); Tower(2-9USTAND)
Primary Form Factor Rackmount
UPS Power Module Dimensions (hwd, in.) 5.25 x 17.5 x 25
Rack Height (U Spaces) 3
Minimum Required Rack Depth (inches) 30
UPS Power Module Weight (lbs.) 143.3
UPS Shipping Dimensions (hwd / in.) 11.2 x 23 x 31.5
Shipping Weight (lbs.) 181.9
Cooling Method Fan
UPS Housing Material Steel
Minimum Required Rack Depth (mm) 762
Primary UPS Height (mm) 133
Primary UPS Width (mm) 444
Primary UPS Depth (mm) 635
Shipping Height (mm) 284
Shipping Width (mm) 584
Shipping Depth (mm) 800
ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity 0 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load) 366
Battery Mode BTU / Hr. (Full Load) 1423
AC Mode Efficiency Rating (100% Load) 97%
COMMUNICATIONS
Communications Interface USB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
Network Management Cards SNMPWEBCARD; TLNETCARD; WEBCARDLX
Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions
PowerAlert Software For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
Communications Cable USB and DB9 cabling included
WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
LINE / BATTERY TRANSFER
Transfer Time 7 milliseconds (AC to Battery), 1 millisecond (Battery to AC)
Low Voltage Transfer to Battery Power (Setpoint) 167
High Voltage Transfer to Battery Power (Setpoint) 260
SPECIAL FEATURES
Grounding Lug Back panel grounding lug
Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported
High Availability UPS Features Hot swappable batteries
Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS
CERTIFICATIONS
UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15 Category A (EMI)
WARRANTY
Product Warranty Period (Worldwide) 2-year warranty, 3 year with registration. Note: Registration is requiredfor 3-year warranty.
Connected Equipment Insurance (U.S., Canada & Puerto Rico) $250,000 Ultimate Lifetime Insurance
