SmartRack, SR12UB, 12U, Mid-Depth, Rack Enclosure Cabinet

  • SKU: 4358295
  • Manufacturer: TRIPP LITE
  • MPN: SR12UB
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At

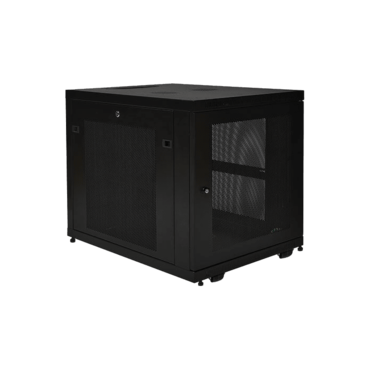

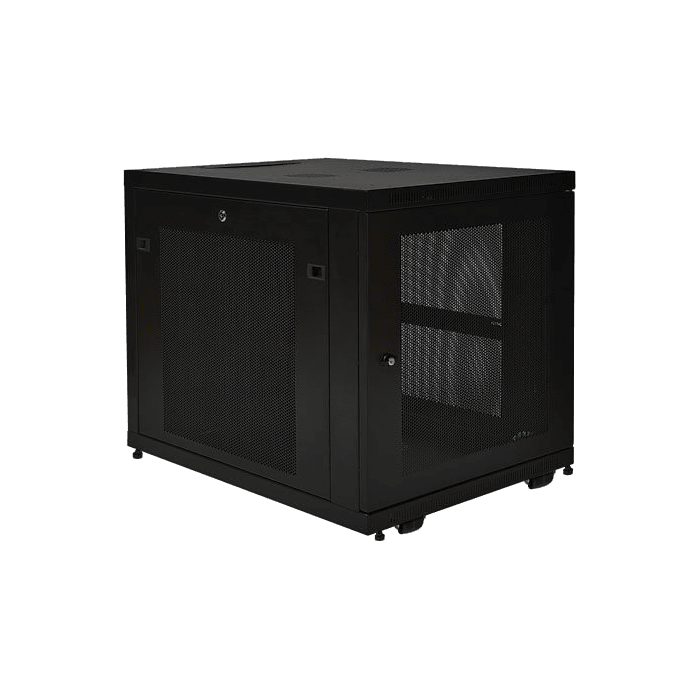

SmartRack, SR12UB, 12U, Mid-Depth, Rack Enclosure Cabinet

Tripp Lite’s SR12UB premium SmartRack 12U Enclosure Cabinet is designed to simplify rack equipment installations and rack equipment maintenance. Compatible with all standard 19-inch rack equipment, it features front and rear pairs of vertical rails with square mounting holes. The rails are adjustable in quarter-inch increments to accommodate equipment depths from 3 to 32.5 inches, ideal for standard server installation. The rails are capable of supporting up to 1,000 lbs of equipment. The top and bottom panels are provided with ports for cable routing, and are furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection. The panels also support installation of standard user-supplied case fans (Tripp Lite SRFANWM). With a locking reversible front door and locking removable side panels, the SR12UB provides for the safe, secure installation of all equipment. To simplify deployment, the SR12UB comes with an accessory caster kit so it can easily be maneuvered into the desired location, and then secured in place by adjusting the unit’s levelers. It ships fully assembled for quick installation.

  • Premium SmartRack extra-depth enclosure cabinet
  • 12U of rack space; 1,000-lb. load capacity
  • Extended depth of 33" allow for standard server installation
  • Locking, reversible front door and locking, removable side panels
  • Casters and leveling feet
  • Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance
Installed Whole System Maximum Rack Depth (in.) 32.5
Installed Whole System Maximum Rack Depth (cm) 82.6
Installed Whole System Minimum Rack Depth (in.) 3
Installed Whole System Minimum Rack Depth (cm) 7.62
Rack Height (U Spaces) 12
Shipping Dimensions (hwd / in.) 29.7 x 27 x 36.6
Shipping Dimensions (hwd / cm) 75.44x 68.58 x 92.96
Shipping Weight (lbs.) 123
Shipping Weight (kg) 55.79
Unit Dimensions (hwd / in.) 25.1 x 23.63 x 33.5
Unit Weight (lbs.) 105
Unit Weight (kg) 47.63
Unit Dimensions (cm) 63.75 x 60.02 x 85.09
Color Black
Weight Capacity - Stationary (lbs.) 1,000
Factory Preset Rack Depth (in.) 28.31
Factory Preset Rack Depth (cm) 71.91
Cable Access Hole Measurement (inches) 9.812 x 2.35 (l x w)
Grounding Lug Front and Back door frames
Certifications EIA-310-E
NOM (Mexico) Tested to NOM (Mexico)
Approvals UL60950; RoHS
Product Warranty Period (Worldwide) 5-year limited warranty
