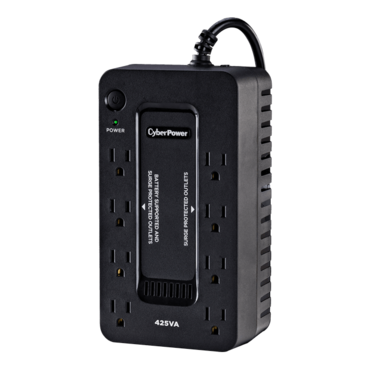

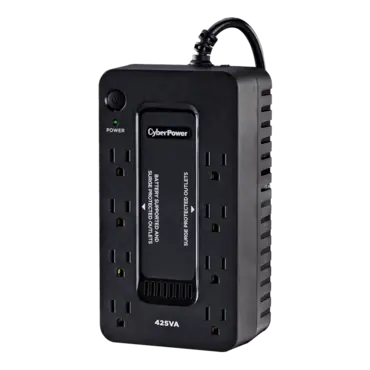

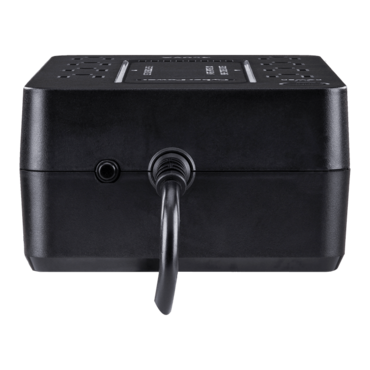

Standby ST425, 425 VA/260 W, Simulated Sine Wave, Tower UPS
- SKU: 12293644
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: ST425
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$59.95
- Capacity: 425 VA / 260 W
- Topology: Standby
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 5%
- Plug type & cord: NEMA 5-15P, 5 ft. cord
- Outlet types: 8 × NEMA 5-15R
- ENERGY STAR® qualified: Yes
- Warranty: 3 year
| General | |
| UPS Topology | Standby |
| Energy Saving | GreenPower UPS™ High Efficiency |
| ENERGY STAR® Compliant | Yes |
| Input | |
| Input Voltage Range | 96Vac – 140Vac |
| Frequency Range | 47 – 63 Hz |
| Circuit Breaker | 7 A |
| Plug Type | NEMA 5-15P |
| Cord Length (ft) | 5 |
| Output | |
| VA | 425 |
| Watts | 260 |
| On Battery Voltage | 120Vac ± 5% |
| On Battery Frequency | 50Hz/60Hz ± 1% |
| On Battery Waveform | Simulated Sine Wave |
| Outlet Type | NEMA 5-15R |
| Outlets – Total | 8 |
| Outlets – Battery & Surge Protected | 4 |
| Outlets – Surge-Only Protected | 4 |
| Outlets – Widely Spaced | 4 |
| Overload Protection | Internal circuitry limiting / Circuit Breaker |
| Transfer Time | Typical 8ms |
| Battery | |
| Runtime at Half Load | 6 min |
| Runtime at Full Load | 1.5 min |
| Battery Type | Sealed Lead-Acid |
| Battery Size | 12V / 2.9AH |
| Battery Quantity | 1 |
| User Replaceable | Field Replacement |
| Typical Recharge Time | 8 hours |
| Surge Protection & Filtering | |
| Surge Suppression | 890 |
| EMI/RFI Filtration | Yes |
| Management & Communications | |
| HID Compliant USB Port | No |
| Serial Port | No |
| Management Cable | None |
| LED Indicators | Power On |
| Audible Alarms |
On Battery Low Battery Overload Fault |
| Physical | |
| Form Factor | Compact |
| Keyhole Mounting Slots | Yes, 2 x 2-direction slots |
| Color | Black |
| Dimensions – W×H×D (in) | 8.3 x 4.5 x 3.2 |
| Weight (lbs) | 3.8 |
| Environmental | |
| Maximum Operating Elevation | 10,000 ft (3,000 m) |
| Maximum Storage Elevation | 50,000 ft (15,000 m) |
| Operating Relative Humidity | 0 – 95% (non-condensing) |
| Operating Temperature | 32 °F to 104°F (0°C to 40°C) |
| Storage Temperature | 5°F to 113°F (-15°C to 45°C) |
| Certifications | |
| Safety |
UL1778 cUL FCC DOC Class B CEC |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | 3 Years Limited |
| Connected Equipment Guarantee | Lifetime |
