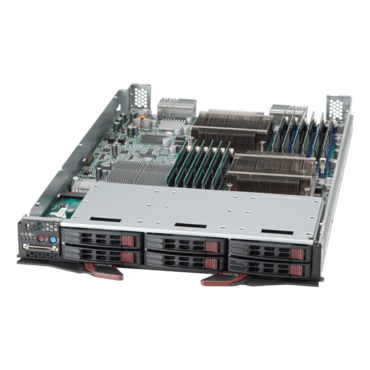

SuperBlade SBI-7126T-S6, Processor Blade, Intel 5500, 6x SATA/SAS, Broadcom SAS2 2008, 12x DDR3, Dual 1Gb Ethernet

SKU: 2381900

Manufacturer: SUPERMICRO

MPN: SBI-7126T-S6

Availability: Low Stock


Price: $931.50
or as low as $30/month
Quantity:
  1. Dual Intel® 5500 series Xeon® Quad/
    Dual-Core, with QPI up to 6.4 GT/s
    and 95W
  2. Intel® 5500 (Tylersburg) Chipset
  3. Up to 192GB DDR3 1333/ 1066/ 800MHz
    ECC Registered DIMM / 24GB
    Unbuffered DIMM
  4. Intel® 82576 Dual-Port Gigabit
    Ethernet
  5. LSI 2008 SAS2 Controller;
    RAID 0, 1, 10; RAID 5 optional
  6. Integrated IPMI2.0 w/ remote KVM and
    virtual media
  7. 6 x 2.5" Hot-Plug SAS/SATA
    Drive Trays

  8. Integrated Matrox G200eW Graphics
Product SKUs
SBI-7126T-S6
  • Processor Blade SBI-7126T-S6 (Black)
Motherboard
Super B8DT6
Processor/Cache
CPU
  • Dual 1366-pin LGA Sockets
  • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
    • Quad-Core Intel®
      Xeon®Processor 5500 sequence (Nehalem-EP processor)
  • NOTE: Support processors with Max TDP < 100W
QPI
  • up to 6.4 GT/s
System Memory
Memory Capacity
  • 12x 240-pin DIMM sockets
  • Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
  • Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC Unbuffered memory
  • Memory Mirroring supported
Memory Type
  • 1333 / 1066 / 800MHz ECC Registered / ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 1GB, 2GB, 4GB, 8GB, 16GB
Memory Voltage
  • 1.5 V and 1.35 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
  • Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
On-Board Devices
Chipset
  • Intel® 5500 (Tylersburg) chipset
  • ICH10R + IOH-24D
Infiniband Support
  • 4x DDR (20Gb/s) Infiniband mezzanine HCA (Optional)
SAS
    • LSI SASII 2008
    • RAID 0, 1, 10 support
    • (Optional: TSOC) RAID 5 support
IPMI
  • Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
Network Controllers
  • Intel® 82576 Dual-Port Gigabit Ethernet
  • Intel® I/OAT 3 support for fast, scaleable, and reliable networking
  • VMDq support for better performance of virtualization
Super I/O
  • Winbond 83827HF chip
Clock Generator
  • CK505 chip
System BIOS
BIOS Type
  • 32Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • PCI 2.2
  • ACPI up to 3.0
  • USB Keyboard support
Dimensions
Height
  • 11.32" (288 mm)
Width
  • 1.67" (42.4 mm)
Depth
  • 18.9" (480mm)
Gross Weight
  • 8.6 lbs (3.9 kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • KVM button
LEDs
  • Power LED
  • UID / KVM LED
  • Network Activity LED
  • Fault LED
Connector
  • SUV (Serial/USB/Video) & KVM Connector
Drive Bays
Hot-swap
  • 6x 2.5" SAS/SATA Hot-swap drive bays
Input / Output
KVM
  • 1 Front Connector for Supermicro KVM Card
Operating Environment / Compliance
Environmental Spec.
  • Operating Temperature: 10°to 35°C (50°to 95°F)
  • Non-operating Temperature: -40°to 70°C (-40°to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5 to 95% (non-condensing)
Electromagnetic Compatibility (EMC)
United States / Canada
  • FCC- Emissions (US) Verification
Europe
  • EN55022 - Emissions
  • EN55024 - Immunity
  • EN61000-3-2 - Harmonics
  • EN61000-3-3 - Voltage Flicker
  • CE - EMC Directive 89/336/EEC
Safety Compliance
United States / Canada
  • UL60950-1 - CSA/CUL 60950-1
Europe
  • EN60950-1, CE - Low Voltage Directive 73/23/EEE
Germany
  • TUV

Included Parts List:

  Part Number Qty Descriptin
Motherboard / Chassis MBD-B8DT6-O-P
CSE-710M-260B
1
1
Super B8DT6 Motherboard
Black Front Blade Chassis (B = Black)
Hard Drive Backplane BPN-SB-SAS2-O-P 1 SAS Hard Drive Backplane
Hard Drive Tray MCP-220-00047-0B 6 Black 2.5" SAS/SATA HDD Tray
KVM MCP-280-KVM1 1 Front KVM Board for B8DT6

Optional Parts List:

  Part Number Qty Description
Heatsink / Retention SNK-P0033P - Heatsink for Intel CPU
Networking AOC-IBH-XDD - InfiniBand Dual ports 4x DDR 20Gbps Mezzanine HCA
(Mellanox ConnectX chip)
