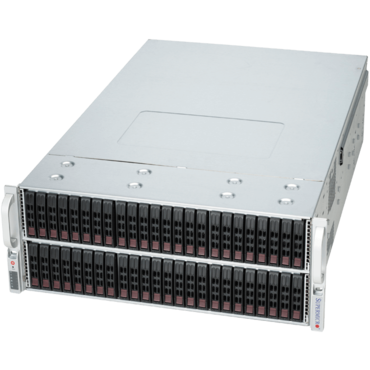

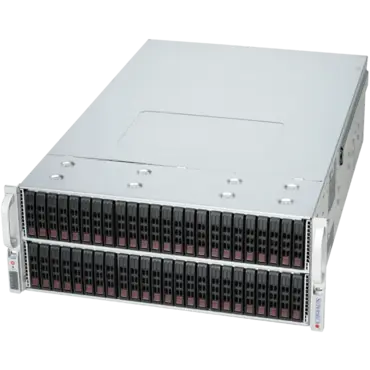

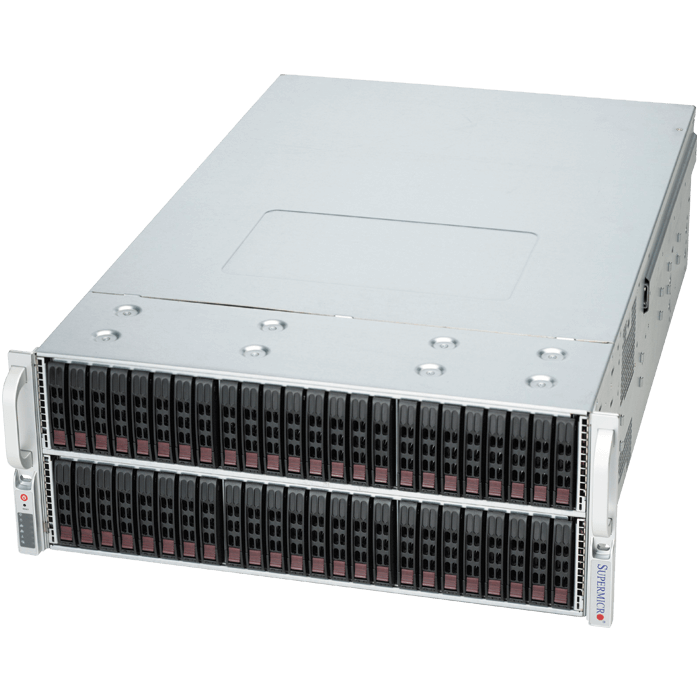

SuperChassis 417BE2C-R1K28LPB, 72x 2.5" Hotswap Bays, 1280W Rdt PSU, EE-ATX, Black, 4U Chassis

Quantity:
  • SKU: 9623103
  • Manufacturer: SUPERMICRO
  • MPN: CSE-417BE2C-R1K28LPB
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$4,716.55
Quantity:
  • Extremely high-density 4U storage server chassis (saves 2U space)
  • Maximum drives per enclosure: 72x (48 front + 24 rear) 2.5" hot-swap HDD bays for server chassis
  • Optional 2x 2.5" Hot-swap SATA3 Drive Bays for OS mirroring
  • E2C: SAS3 (12Gbps) dual expander backplanes
  • 1280W Platinum Level (1+1) redundant power supplies with PMBus
  • Optimized thermal solution with 100% redundant cooling design
Product SKUs
CSE-417BE2C-R1K28LPB
  • SuperChassis 417BE2C-R1K28LPB
Form Factor
  • 4U chassis - supports for maximum motherboard sizes: 13.68" x 13", E-ATX
Processor Support
  • Dual and Single Intel® and AMD processors
Dimensions
Height
  • 7" (178 mm)
Width
  • 17.2" (437 mm)
Depth
  • 27.5" (699 mm)
Gross Weight
  • 80 lbs (36.29 kg)
Packaging (W x H x L)
  • 27.2" (691 mm) x 17.4" (442 mm) x 39.6" (1006 mm)
Available Color
  • Black
Expansion Slots
  • 7 low-profile expansion slot(s)
Drive Bays
  • 72 x 2.5" hot-swap SAS/SATA drive bay
  • Optional 2 x 2.5" hot-swap drive bay
  • SAS or enterprise SATA HDD only recommended
Backplane
  • 24-port 2U SAS3 12Gbps dual-expander backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD
Peripheral Drives
  • Optional 4 x 2.5" internal fixed drive bay
  • Optional 4 x 2.5" internal fixed drive bay
Front Panel
Buttons
  • Power On/Off button
  • System Reset Button
  • Unit Identification (UID) button
LEDs
  • 2 Network Activity LEDs
  • Fan Fail/System Over Heat LED
  • HDD activity LED
  • Power Status LED
Systems Cooling
Fans
  • 7 x 8cm hot-swap redundant PWM cooling fan(s)
System Monitoring
  • Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 60°C (-40°F - 140°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply 1U 1280W Redundant Platinum 95%+ Super Quiet Power Supply with PMbus
Power Efficiency
  • 95%
Total Output Power and Input
  • 1000W with Input 100 - 140Vac
  • 1280W with Input 200 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 83A / Min: 0.5A (100Vac - 140Vac)
  • Max: 106.7A / Min: 0.5A (200Vac - 240Vac)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT416-8824
  • O/P: 12V/135
  • +5V Max: 100
  • +3.3V Max: 30
  • -12V Max: 0.6
Certification
  • Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class B
  • TUV/CB
  • UL/CUL
Standard Parts List
  Part Number Qty Description
Air Shroud MCP-310-49004-0N 1 SC847/417 DP X9 universal PC air shroud 1368x13/12x13MB
HD Backplane BPN-SAS3-216EL2 3 24-port 2U SAS3 12Gbps dual-expander backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD
Cable(S) CBL-0071L 1 ROUND 16 pin TO 16 PIN RIBBON FP CABLE 75cm. 28AWG
Cable(S) CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
Cable(S) CBL-0217L 1 16 pin control panel converter cable for SC826,846, 23.5cm, PBF
Fan(s) FAN-0126L4 7 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
Front Panel MCP-280-82601-0N 1 Front control board adapter (TB826) for SC216,826,936,846
Drive Tray(s) MCP-290-82607-0N 1 826B/216B rear dummy cover for 2 X 2.5" HDD cage
Drive Tray(s) MCP-220-00047-0B 72 Black gen 3rd hot-swap 2.5inch HDD tray
Drive Tray(s) MCP-220-84708-ASM 1 SC847B LP MB Tray assembly,HF,RoHS/REACH
Drive Tray(s) MCP-220-84710-0N 1 SC847B LP Motherboard tray with rear 2.5"; HDD bracket
Power Distributor PDB-PT416-8824 1 SC416 24PIN OUTPUT PDB SUPPORT X8
Power Supply & Accessory PWS-1K28P-SQ 2 1U 1280W, redundant single output power supply
Mounting Rail(s) MCP-290-00057-0N 1 set Rail set, quick/quick, default for 4U 17.2"; W
Mounting Rail(s) MCP-290-00115-0N 1 Inner rail, quick-release type
Mounting Rail(s) MCP-290-00117-0N 1 Outer rail, quick-release type
Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF



Optional Parts List
  Part Number Qty Description
HDD Kit MCP-220-82609-0N - Optional rear 2.5" HDD kit for 826BA/E16/E26 only
Drive Trays MCP-220-84701-0N - Internal drive bay for one 3.5" HDD or two 2.5" HDD
Front Bezel MCP-210-84601-0B - Front Bezel Cover, Black with Key Lock
Rail MCP-290-00061-0N - Non-threaded rail adapter optional for round thread rack
HDD Kit MCP-220-82616-0N - 12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B
