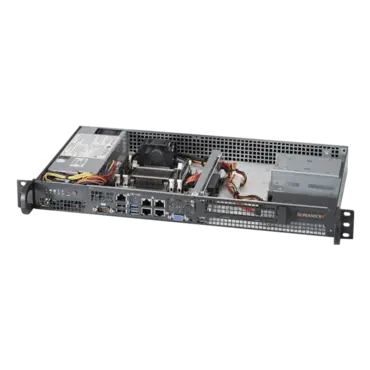

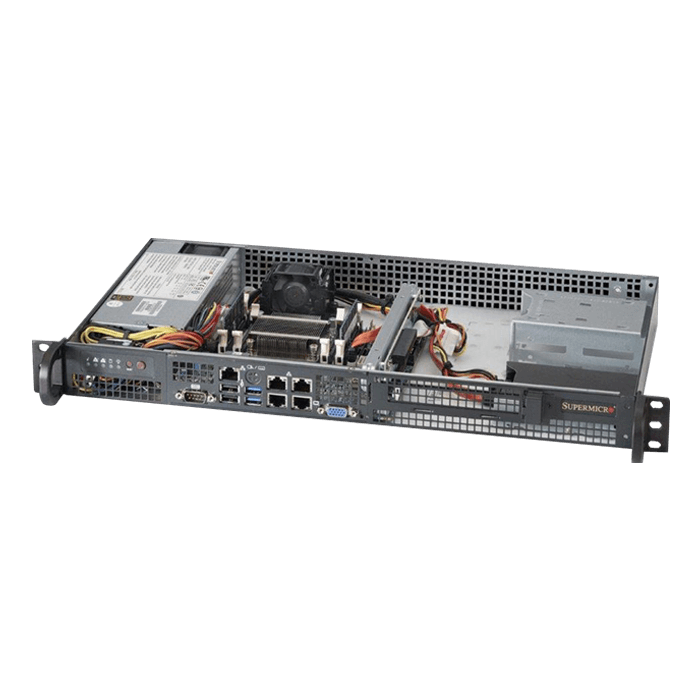

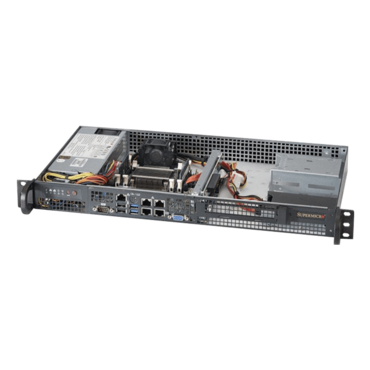

SuperChassis 505-203B, 1x Internal 3.5" Bay 1x Slot(s), 200W Gold PSU, Mini-ITX, Black, 1U Chassis

SKU: 7777529

Manufacturer: SUPERMICRO

MPN: CSE-505-203B

Availability: Low Stock


Price: $157.05
or as low as $5/month
Quantity:
  • 9.8" depth small form factor 1U, 200W Gold level power supply
  • Optimized for Mini-ITX (6.75"x 6.75") Motherboard
  • Front I/O Ports
  • 1x 3.5" Internal Drive Bay with 1x Half-height, Half-length PCI-E
  • OR 2x 3.5" Internal Drive Bay
  • OR 2x 2.5" Internal Drive Bay with 1x Full-height, Half-length PCI (need HDD bracket)
  • OR 4x 2.5" Internal Drive Bay(need HDD bracket)
  • Power Switch, Reset Button and 5x LED Indicators
Product SKUs
CSE-505-203B
  • SuperChassis 505-203B
Form Factor
  • 9.8" Mini 1U chassis support for maximum motherboard size: Mini-ITX 6.75" x 6.75"
Processor Support
  • 3rd Generation Intel® Core™ i7/i5/i3, up to 35W
Dimensions
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 9.8" (249 mm)
Gross Weight
  • 10 lbs (4.54 kg)
Packaging (W x H x L)
  • 25.8" (655 mm) x 6.1" (155 mm) x 18.3" (465 mm)
Available Color
  • Black
Expansion Slots
  • Up to Up to 1x full-height, half-length PCI expansions slot* *NOTE: Riser Card Required, See 'Drive Bays' for possible configurations
Drive Bays
  • 1 x 3.5" Internal Drive Bay with 1 Full-height, Half-length PCI
  • Or 2 x 3.5" Internal Drive Bay
  • Or 2 x 2.5" Internal Drive Bay with 1 Full-height, Half-length PCI
  • Or 4 x 2.5" Internal Drive
  • Ony SAS or enterprise SATA HDD recommended
Front Panel
Buttons
  • Power On/Off button
  • System Reset Button
LEDs
  • 2 Network Activity LEDs
  • Fan Fail/System Over Heat LED
  • HDD activity LED
  • Power Status LED
Ports
  • 1x VGA, IPMI, 4xLANs, 1x COM, 4xUSB, 1xKeyboard/Mouse
Systems Cooling
Fans
  • 1 x High-efficiency power supply with thermal control fan(s)
Operating Environment (System)
Operating Temperature Range
  • 0°C - 40°C (32°F - 104°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply 1U 200W Multi-output power supply Gold level w/20pin
Power Efficiency
  • 91%
Total Output Power and Input
  • 200W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 192 x 76 x 40.3 mm
Output Type
  • 20pin ATX
-12V
  • Max: 0.5A / Min: 0A
+12V
  • Max: 16A / Min: 0.1A (100Vac - 240Vac)
+5V
  • Max: 8AA / Min: 0.1A
+3.3V
  • Max: 8A / Min: 0.1A
+5Vsb
  • Max: 2A / Min: 0A
Certification
  • Gold Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class B
  • TUV/CB
  • UL/CUL
