| Main Specifications |
| Device Type |
SuperChassis |
| Form Factor |

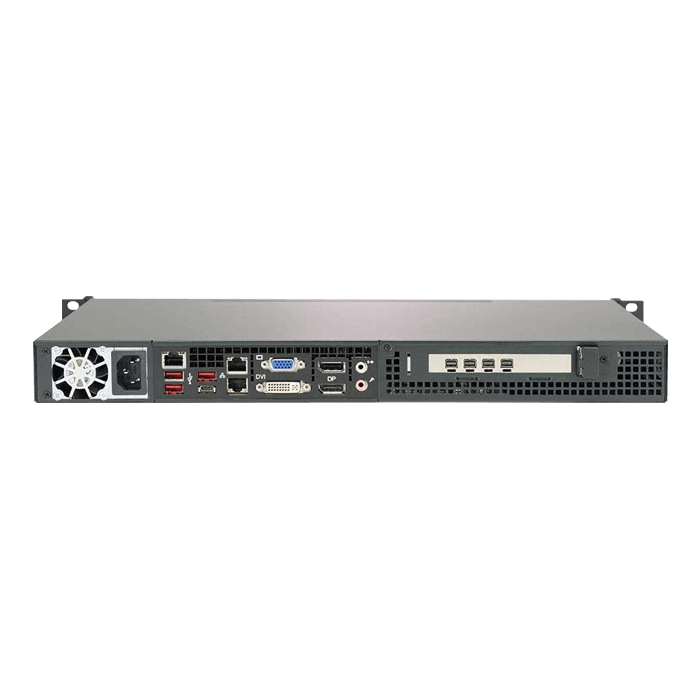

1U Rackmount - CSE-510FT-203B |
| Dimensions (WxDxH) |
Height 1.7" (43mm) x Width 17.2" (437mm) xDepth 11.3" (287mm) |
| Weight |
Gross Weight: 14.1 lbs (6.4 kg) - Net Weight: 10.0 lbs (4.54 kg) |
| Enclosure Color |
Black |
| Supported Motherboards |
uATX 9.6" x 9.6" (24.38cm x 24.38cm) |
| Processor |
| Compatible Processors |
Single Intel processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) |
1 Half Height, Half Length slot |
| Expansion Bays Total (Free) |
2 Hot-swap 2.5" SATA3 drive bays (maximum 12mm-thick drive) |
| Front Panel |
| Buttons |
Power On/Off button, System Reset button |
| LEDs |
Power LED, Hard drive activity LED, 2 Network activity LEDs, System Information LED |
| Power Supply |
| Power Supply |
200W Low Noise AC-DC power supply with PFC |
| Certification |
80 PLUS Gold Certified |
| Environmental |
| Operating Environment |
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 10°C to 40°C (50°F to 104°F) |
| Miscellaneous |
| Compliant Standards |
RoHS |
