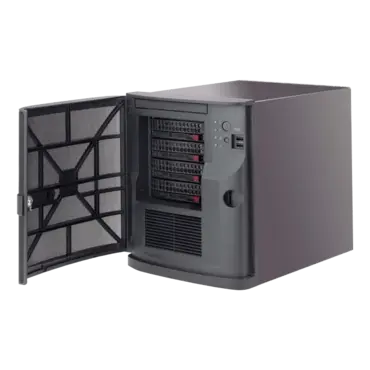

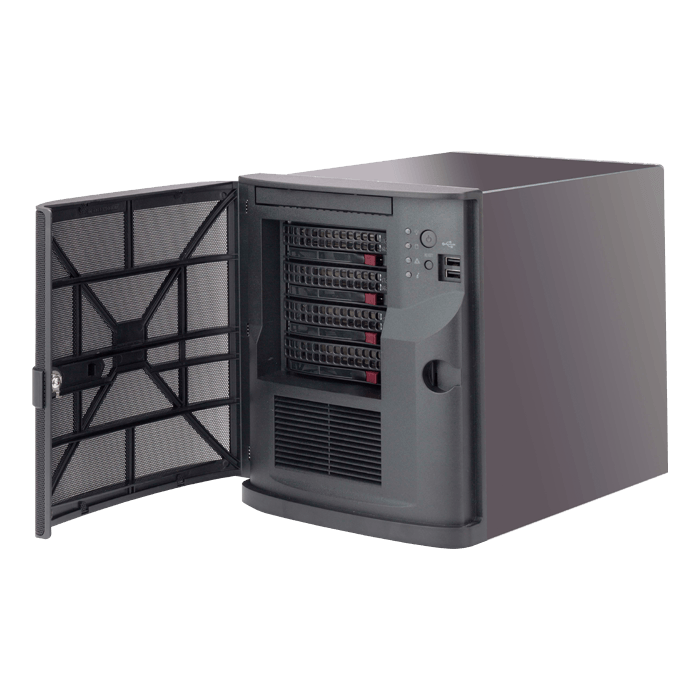

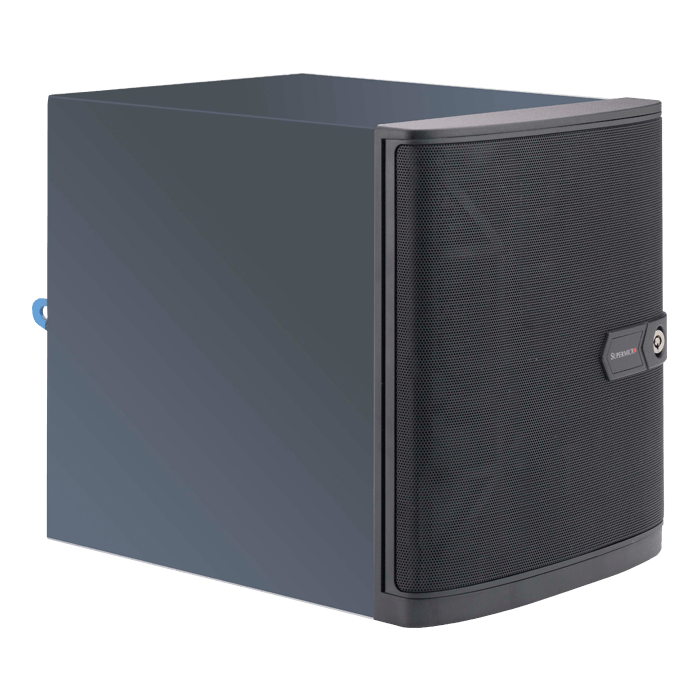

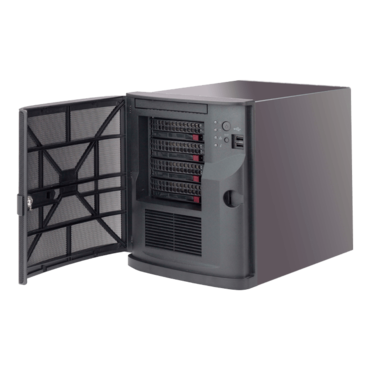

SuperChassis 721TQ-350B2, 4x 3.5" Hot-swap, 2x 2.5 Internal Bays, 350W PSU, Mini-ITX, Black, Mini Tower Chassis

SKU: 14623143
Manufacturer: SUPERMICRO
MPN: CSE-721TQ-350B2
Availability: USUALLY SHIPS WITHIN 1-3 WEEKS

Price

$363.28

Product SKUs
CSE-721TQ-350B2	SuperChassis 721TQ-350B2
Form Factor
Compact Mini-Tower chassis support for motherboard size 6.75" x 6.75"
Dimensions
Height	9.45" (240.03 mm)
Width	8.27" (210.06 mm)
Depth	11" (279.4 mm)
Gross Weight	15 lbs (6.8 kg)
Net Weight	13.5 lbs (6.12 kg)
Packaging (W x H x L)	12.4" (315 mm) x 13.78" (350 mm) x 16.14" (410 mm)
Available Color	Black
Expansion Slots
1x Low-profile expansion slot(s)
Drive Bays
2x 2.5" fixed drive bay 4x 3.5" hot-swap SAS/SATA drive bay
Backplane
4x3.5" SAS2/SATA3 backplane w/SES-II
Peripheral Drives
1x slim DVD-ROM drive bay
Front Panel
Button	Power On/Off button System Reset button
LED	Power status LED HDD activity LED 1 Network activity LEDs Fan Fail/System Over Heat LED
Port	2x USB 3.0 Port(s)
Systems Cooling
Fans	1x 12cm rear exhaust fan(s)
System Monitoring
Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range	0°C - 40°C (32°F - 104°F)
Non-Operating Temperature Range	-20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range	10% - 85% (non-condensing)
Non Operating Relative Humidity Range	10% - 95% (non-condensing)
Power Supply
350W 1U multi-output power supply
Total Output Power and Input	350W with Input 100 - 240Vac
AC Input Frequency	50-60Hz
Dimensions (L x W x H)	150 x 81.5 x 40.5 mm
Output Type	24pin ATX
-12V	Max: 0.3A / Min: 0.05A
+12V	Max: 28A / Min: 0.1A (100Vac - 240Vac)
+5V	Max: 15A / Min: 0.2A
+3.3V	Max: 10A / Min: 0.1A
+5Vsb	Max: 2A / Min: 0.05A
Certification	Gold Certified
Regulatory (Power Supply)
Power Supply Safety / EMC	BSMI CCC FCC class B TUV/CB UL/CB
