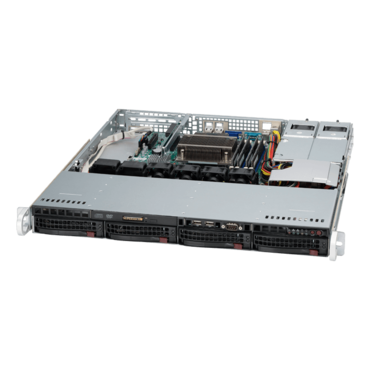

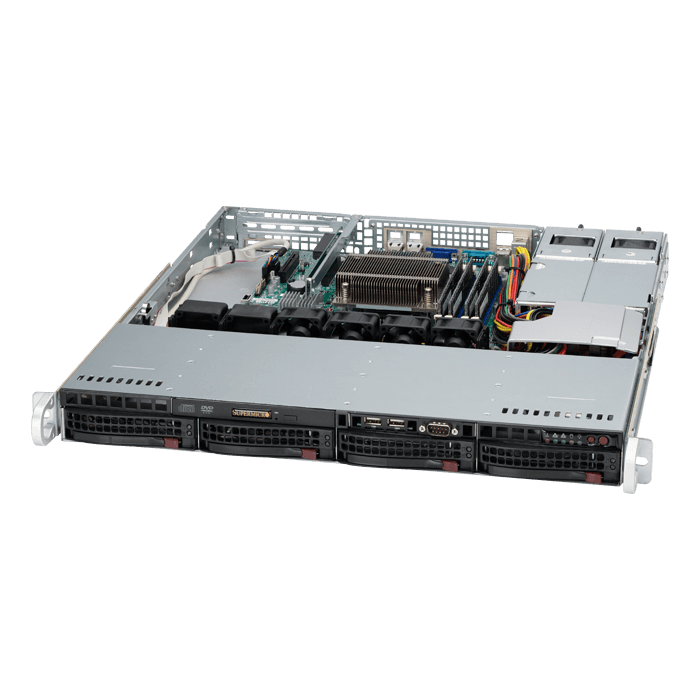

SuperChassis 813MFTQC-R407CB, 4x 3.5" Hot-swap Bays, 400W Rdt PSU, ATX, Black, 1U Chassis

SKU: 10639189

Manufacturer: SUPERMICRO

MPN: CSE-813MFTQC-R407CB

Availability: Out of Stock


Product SKUs
CSE-813MFTQC-R407CB
  • SuperChassis 813MFTQC-R407CB
Form Factor
  • 1U chassis, support motherboard size ATX 12" x 10" and Micro ATX 9.6" x 9.6".
Processor Support
  • Dual and Single Intel® and AMD processors
Dimensions
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 19.85" (503 mm)
Gross Weight
  • 33.5 lbs (15.2 kg)
Packaging (W x H x L)
  • 23.4" (594 mm) x 8.5" (216 mm) x 29.7" (754 mm)
Available Color
  • Black
Expansion Slots
  • 1 full height expansion slot(s)
Drive Bays
  • 4 x 3.5" hot-swap SAS/SATA
Backplane
  • 1U 4-Port 12Gbps Backplane Support 4x3.5" SAS3/SATA3 HDD/SSD
Peripheral Drives
  • Optional 1 x Slim DVD-ROM Drive
  • Optional 1 x USB + COM port tray
Front Panel
Buttons
  • Power On/Off button
  • System Reset Button
LEDs
  • 2 Network Activity LEDs
  • HDD activity LED
  • Power Status LED
  • System Information LED
Motherboard (for CSE- 813MFTQC-R407CB)
X10SRM-TF X10SRM-F
X11SSH-GTF-1585 X11SSH-GF-1585
X11SSH-GTF-1585L X11SSH-GF-1585L
Systems Cooling
Fans
  • 4 x 40x28mm PWM fan(s)
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply
1U 400W Redundant Power Supply Platinum with PMBUS, W54.5xL220xH40mm
Power Efficiency
  • 94%
Total Output Power and Input
  • 400W with Input 100 - 240Vac
  • 400W with Input 200 - 240Vdc
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 220 x 54.5 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 33A (100Vac - 240Vac)
+5Vsb
  • Max: 3A / Min: 0A
Certification
  • 80 Plus Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • UL/CB
  • UL/CUL
