1000W Redundant High-efficiency Titanium Level Power Supplies
8x 3.5" Hot-swap SAS3/SATA3 drive bays; space to support 2x 5.25" Drive Bays & 1x Slim DVD
Optional hot-swap Slim HDD/SSD drive Kit and Mobile Racks for additional storage
7x Full-height, Full-length Expansion Slots
Five Fans (3 middle, 2 rear) & Adjustable Air Shroud for 100% Cooling Redundancy
Product SKUs
CSE-835TQC-R1K03B

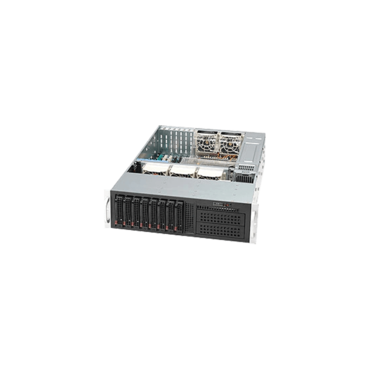

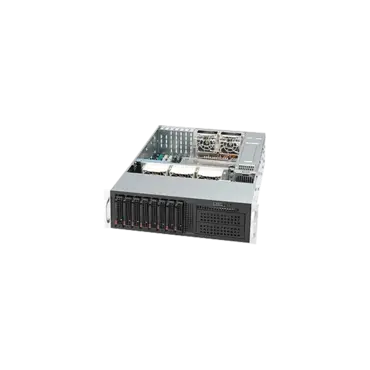

SuperChassis 835TQC-R1K03B
Form Factor
3U chassis support for motherboard size - E-ATX and ATX.
Processor Support
Dual and Single Intel® and AMD processors
Dimensions
Height
5.2" (132 mm)
Width
17.2" (437 mm)
Depth
25.5" (647 mm)
Gross Weight
75 lbs (34.02 kg)
Packaging (W x H x L)
26.6" (676 mm) x 13" (330 mm) x 33.9" (861 mm)
Available Color
Black
Expansion Slots
7 full-height & full-length expansion slot(s)
Drive Bays
8 x 3.5" hot-swap SAS/SATA
Backplane
3U 8-Port Backplane Supports 8 x 3.5"; SAS3/SATA3 HDD/SSD for X11 Platform
Peripheral Drives
1 x slim DVD-ROM drive bay
Front Panel
Buttons
Power On/Off button
System Reset Button
LEDs
2 Network Activity LEDs
HDD activity LED
Power LED
Power Fail LED
System Overheat LED
Systems Cooling
Fans
3 x 80mm Hot-swap PWM Fans
2 x 80mm rear hot-swap exhaust PWM fan(s)
System Monitoring
Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range
5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
Power Supply
1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus
Power Efficiency
96%
Total Output Power and Input
800W with Input 100 - 127Vac
1000W with Input 200 - 240Vac
1000W with Input 200 - 240Vdc
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
336 x 76 x 40 mm
Output Type
Backplanes (gold finger)
+12V
Max: 66.7A (100Vac - 127Vac)
Max: 83A (200Vac - 240Vac)
Max: 83A (200 - 240)
+5Vsb
Max: 4A / Min: 0A
Power Distributor
PDB-PT825-8824
O/P: 12V/75
+5V Max: 30
+3.3V Max: 24
-12V Max: 0.6
Certification
Titanium Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL
