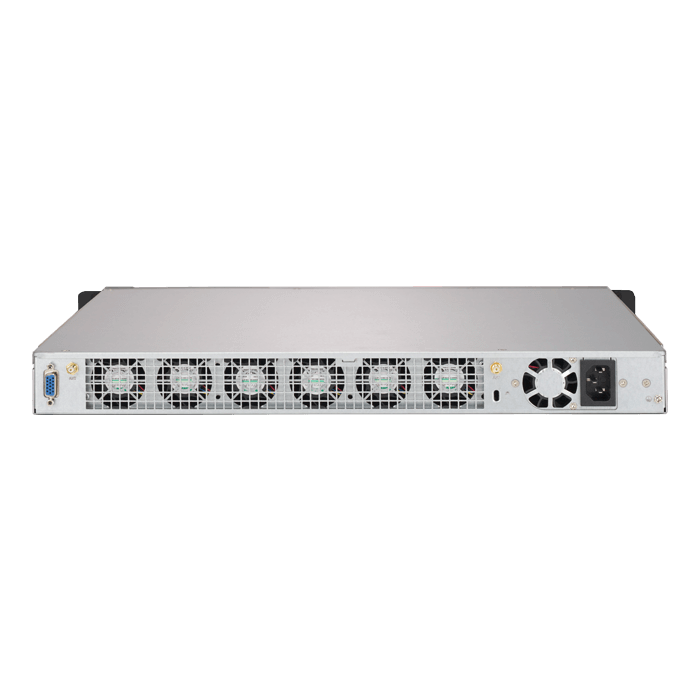

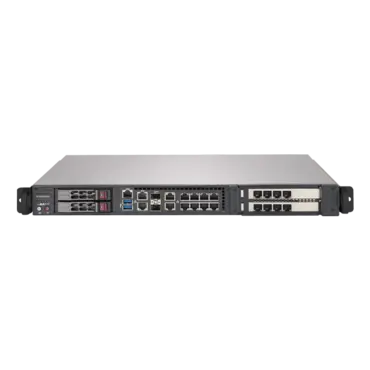

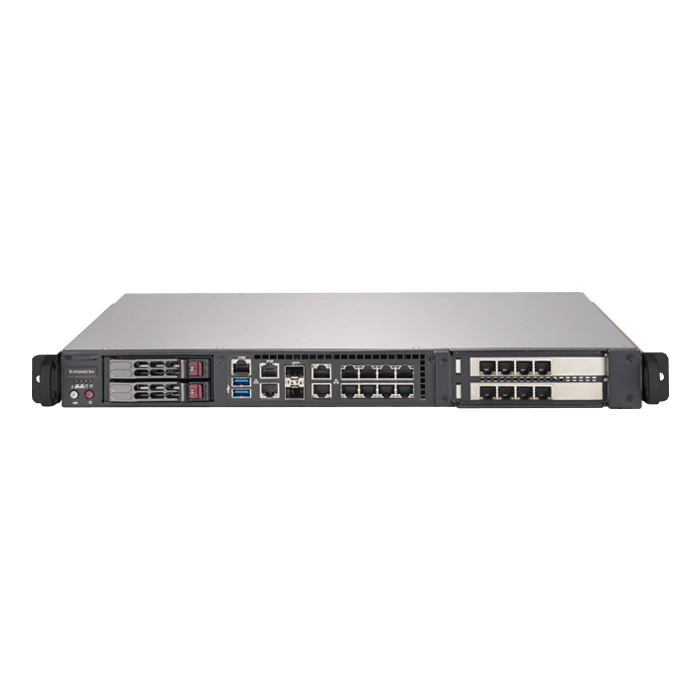

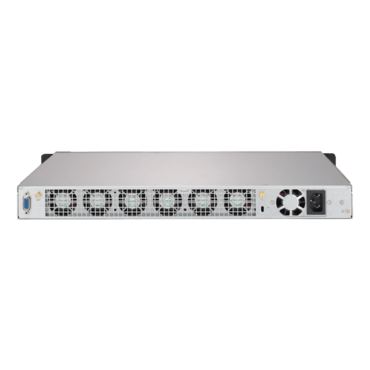

SuperServer 1019D-4C-FHN13TP, 1U, Intel® Xeon® D-2123IT, 4x SATA, 1x M.2, 4x DDR4, 2x 10G SFP+, 2x 10GbE, 9x 1GbE, 350W PSU

SKU: 12803248

Manufacturer: SUPERMICRO

MPN: SYS-1019D-4C-FHN13TP

Availability: Low Stock


Price: $1,213.42
or as low as $39/month
Quantity:
  • Multi-Access Edge Computing (MEC)
  • Centralized/Cloud Radio Access
    Network (C-RAN)
  • Universal Customer Premise
    Equipment (uCPE)
  • Software Defined WAN (SD-WAN)
  • Network Function Virtualization (NFV)
  • Artificial Intelligence (AI)
  1. Intel® Xeon® D-2123IT Processor,
    4-Core, 8 Threads, 2.2 GHz, 60W
  2. Up to 512GB ECC LRDIMM,
    up to 256GB reg. ECC RDIMM
    DDR4-2400Mz; in 4 DIMM slots
  3. 2 PCI-E 3.0 x16 (FHFL) slots
  4. 2 Hot-swap 2.5" drive bays,
    2 Internal 2.5" SSD bays
  5. 1 M-Key, 2280/22110,
    1 E-Key, 2230, 1 B-Key, 3042
  6. 9 GbE (1 port is used for management),
    2x 10GbE, 2x 10G SFP+, and
    1 Dedicated IPMI LAN ports
  7. 2 USB 3.0, 1 VGA,
    1 COM via RJ45
  8. 350W AC-DC Multi-output
    Platinum Level Power Supply
Product SKUs
SYS-1019D-4C-FHN13TP
  • SuperServer 1019D-4C-FHN13TP (Black)
Motherboard
  • Super X11SDW-4C-TP13F
  • Processor
    CPU
    • Intel® Xeon® processor D-2123IT,
      CPU TDP support 80W
    Cores / Cache
    • 4 Cores, 8 Threads
    System Memory
    Memory Capacity
    • Up to 512GB DDR4 ECC LRDIMM
    • Up to 256GB DDR4 ECC RDIMM
    • 4 DIMM slots
    Memory Type
    • 2666/2400/2133MHz ECC DDR4 L/RDIMM
    • Operating speed up to 2400MHz
    DIMM Sizes
    • 128GB, 64GB, 32GB, 16GB
    Memory Voltage
    • 1.2 V
    On-Board Devices
    Chipset
    • System on Chip (SoC)
    SATA
    • SATA3 (6Gbps) ports via SoC controller
    Network Controllers
    • Dual 10G SFP+ via SoC
    • Dual 10GBase-T via Intel X557
    • Octave 1GbE with Intel I350-AM4
    • Single 1GbE with Intel I210
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Video
    • VGA via Aspeed AST2500 BMC
    Input / Output
    SATA
    • 4 SATA3 (6Gbps) ports
    LAN
    • 9 RJ45 Gigabit Ethernet LAN ports
    • 2 RJ45 10GbE LAN ports
    • 2 10G SFP+ LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (front)
    Video
    • 1 VGA port
    Serial Port / Header
    • 1 COM via RJ45
    System BIOS
    BIOS Type
    • 128Mb SPI Flash with AMI BIOS
    Management
    Software
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-513BTS-350WB
    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 15" (381mm)
    Package
    • 6.9" (H) x 19.5" (W) x 22.4" (D)
    Weight
    • Gross Weight: 25 lbs (11.34 kg)
    • Net Weight: 14 lbs (6.35 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED
    Expansion Slots
    PCI-Express
    • 2 PCI-E 3.0 x16 (FHFL) slots
    M.2
    • 1 M.2 M-Key , 2280/22110
    • 1 M.2 E-Key , 2230
    • 1 M.2 B-Key , 3042
    Drive Bays
    Hot-swap
    • 2 Hot-swap 2.5" drive bays
    Internal
    • 2 Internal 2.5" SSD bays
    System Cooling
    Fans
    • 4x 40x28mm PWM fans (up to 6)
    Power Supply
    • 350W AC power supply w/ PFC
    AC Voltage
    • 100-240 V, 50-60 Hz, 4.2-1.8 Amp
    +5V
    • Max.: 15 Amp
    • Min.: 0.2 Amp
    +5V standby
    • Max.: 3 Amp
    • Min.: 0 Amp
    +12V
    • Max.: 29 Amp
    • Min.: 0.5 Amp
    -12V
    • Max.: 0.2 Amp
    • Min.: 0 Amp
    +3.3V
    • Max.: 12 Amp
    • Min.: 0.2 Amp
    Certification
    • Platinum Level Certified
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
      0°C to 45°C (32°F to 113°F)
    • Non-operating Temperature:
      -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
      8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
      5% to 95% (non-condensing)
