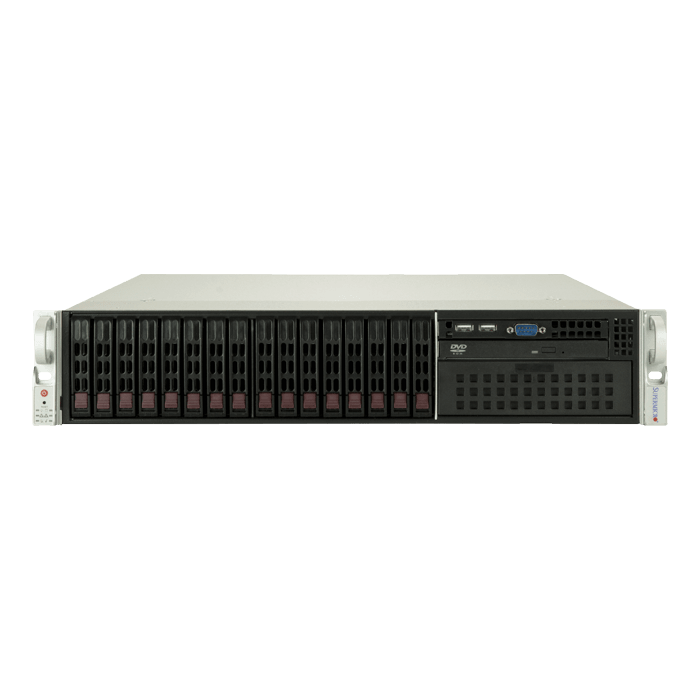

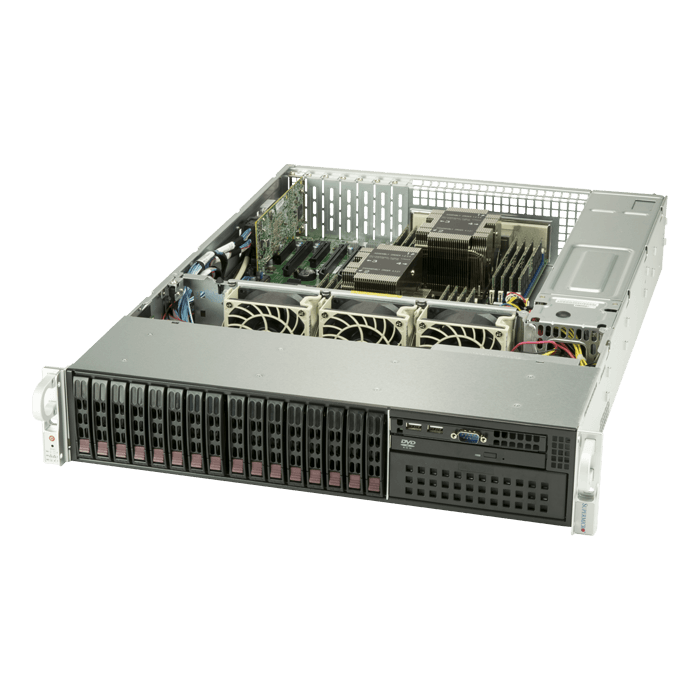

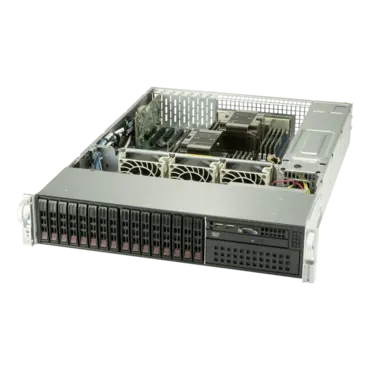

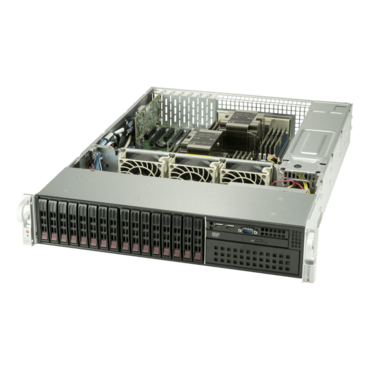

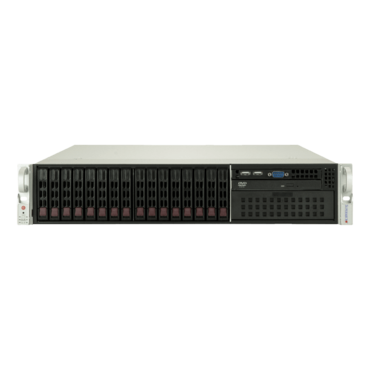

SuperServer 2029P-TXRT, 2U, Intel C621, 16x SAS/SATA, 16x DDR4, Dual 10Gb Ethernet, 1000W Rdt PSU

SKU: 11862896

Manufacturer: SUPERMICRO

MPN: SYS-2029P-TXRT

Availability: Low Stock


Price: $2,389.98
or as low as $77/month
Quantity:
  • Industrial Server Solutions
  • Networking Telephony
  • Surveillance DCR
  • GPU Pass-through VM server
  • Flash Array Server
  • Head-node Controller
  1. Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
  2. Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM slots
  3. 2 PCI-E 3.0 x16 slots (HSSI), 2 PCI-E 3.0 x16 slots (or 4 PCI-E 3.0 x8), 4 PCI-E 3.0 x8 slots, 1 PCI-E 3.0 x4 (in x8 slot)
  4. 16 Hot-swap 2.5" SAS/SATA drive bays, 1 slim DVD-ROM drive bay
  5. 2x 10GBase-T ports via Intel X550-AT2
  6. Integrated IPMI 2.0 with KVM and Dedicated LAN
  7. 1 PCI-E 3.0 x4 M.2 2280 slot from PCH
  8. 4 middle fans
  9. 1000W Redundant Power Supplies Titanium Level (96%)
Product SKUs
SYS-2029P-TXRT
  • SuperServer 2029P-TXRT (Black)
Motherboard
Super X11DPX-T
Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • Intel® Xeon® Scalable Processors,
    3 UPI up to 10.4GT/s
  • Support CPU TDP 205W
Cores
  • Up to 28 Cores with Intel® HT Technology
System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type
  • 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers
  • Intel® X550-AT2 Dual Port 10GBase-T
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC
Input / Output
Serial ATA
  • 10 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
  • 2 USB 2.0 ports (rear)
Serial Port / Header
  • 1 COM port (rear)
VGA
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
TPM
  • 1 TPM 2.0 Header
System BIOS
BIOS Type
  • AMI UEFI
Management
Software
  • Intel® Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • NMI
  • SSM, SPM, SUM
  • SuperDoctor® 5
Power Configurations
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-213XAC-R1K05LP
Dimensions
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 25.6" (650mm)
Package
  • 14.8" (H) x 27" (W) x 37.3" (D)
Weight
  • Net Weight: 36 lbs (16.4 kg)
  • Gross Weight: 72 lbs (32.7 kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • Network activity LEDs
  • System information (overheat/UID) LED
  • Power fail LED
Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 slots (HSSI)
  • 2 PCI-E 3.0 x16 slots (or 4 PCI-E 3.0 x8 by MUX)
  • 4 PCI-E 3.0 x8 slots
  • 1 PCI-E 3.0 x4 (in x8 slot)
Drive Bays
Hot-swap
  • 16 Hot-swap 2.5" drive bays
  • 10 SATA3 ports by default
  • Optional drive support: 16 SAS3

    Note: optional storage card is required to support more than 10 drives
Peripheral Bay
Peripheral
  • 1 slim DVD-ROM drive
Backplane
1 SAS/SATA backplane
System Cooling
Fans
  • 4 Middle fans
PowerStick Power Supply
1000W 1U Redundant Power Supplies with PMBus
Total Output Power
  • 800W/1000W
Dimension
(W x H x L)
  • 38 x 40 x 360 mm
Input
  • 100-127Vac / 9-7.5A / 50-60Hz
  • 200-240Vac / 6-5A / 50-60Hz
+12V
  • Max: 66.7A / Min: 0A (100-127Vac)
  • Max: 83A / Min: 0A (200-240Vac)
+5Vsb
  • Max: 4A / Min: 0A
Output Type
  • Gold Finger Connector (16 Power Pin, 14 Signal Pin)
Certification 80 Plus UL/cUL/CB/BSMI/CE/CCC
Titanium Level
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
