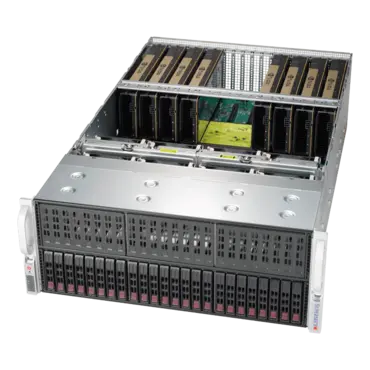

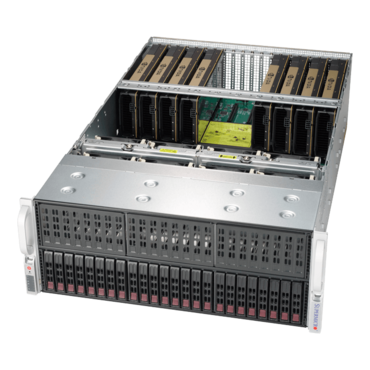

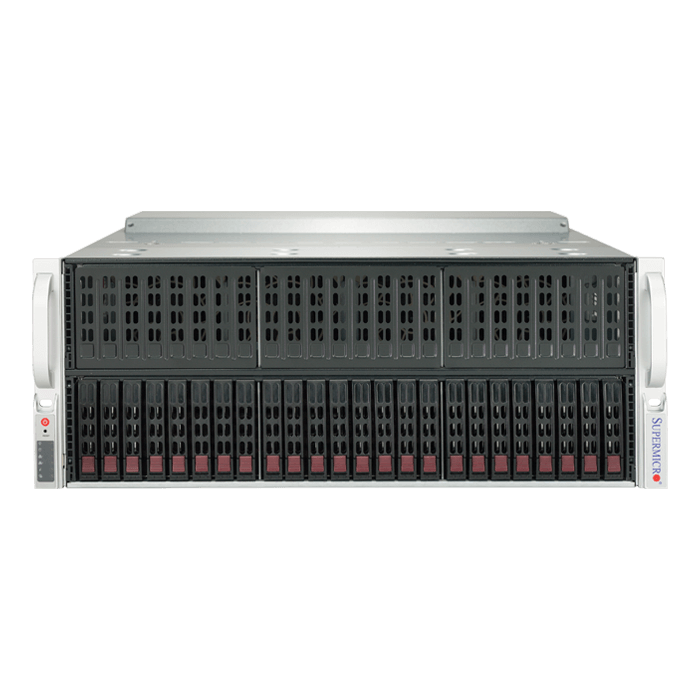

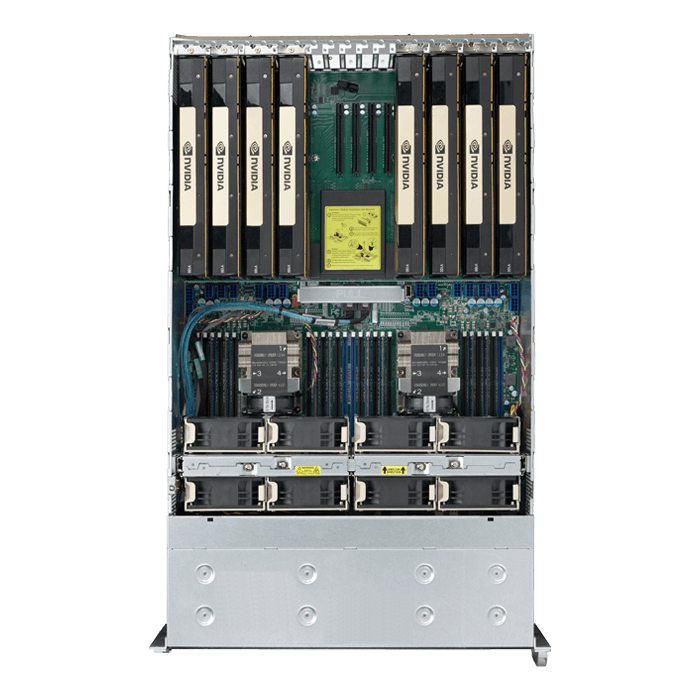

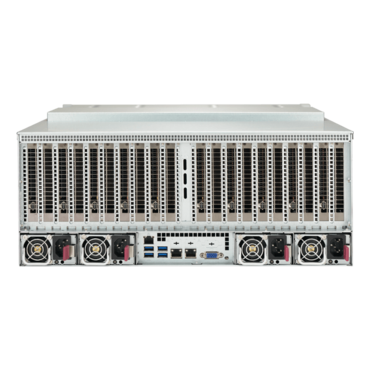

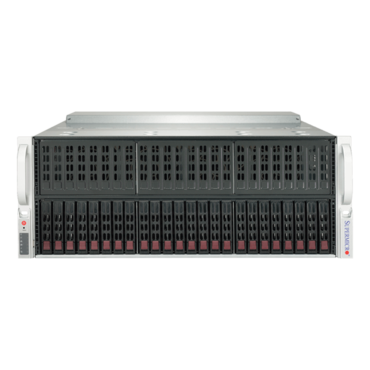

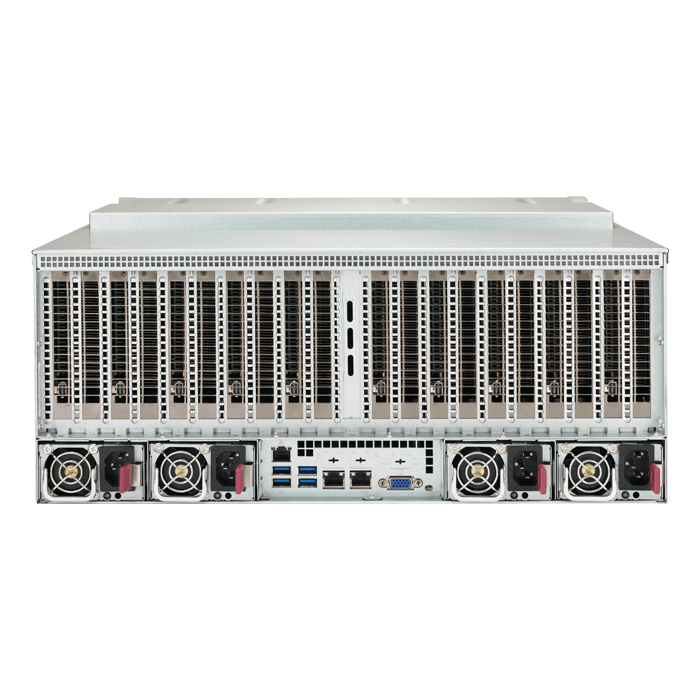

SuperServer 4029GP-TRT3, 4U, Intel® C622, 24x 2.5" SAS/SATA Hotswap, Dual 10Gb Ethernet, 2000W Rdt (2+2) PSU

SKU: 12948675

Manufacturer: SUPERMICRO

MPN: SYS-4029GP-TRT3

Availability: Low Stock


Price: $5,848.23
or as low as $189/month
Quantity:
  • - AI /Deep Learning
  • - Support up to 9 GPUs
  • - Single Root System, Cascade Mode
    for maximum GPU peer to peer
    communication
  1. Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)
  2. 24 DIMMs; up to 6TB 3DS ECC
    DDR4-2933MHz RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM
  3. 11 PCI-E 3.0 x16 (FH, FL) slots,
    1 PCI-E 3.0 x8 (FH, FL in x16 slot)
  4. Up to 24 Hot-swap 2.5" drive bays
    8x 2.5" SATA drives supported
    with included H/W, 2x 2.5" NVMe
    drives supported with included H/W
  5. 2x 10GBase-T LAN ports via Intel C622
  6. 8 Hot-swap 92mm RPM cooling fans
  7. 2000W (2+2) Redundant Power Supplies Titanium Level (96%+)
Product SKUs
SYS-4029GP-TRT3
  • SuperServer 4029GP-TRT3 (Black)
Motherboard
Super X11DPG-OT-CPU
Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
    3 UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores
Note  BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
GPU Support
  • Please refer to: Compatible GPU list
System Memory
Memory Capacity
  • 24 DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note  2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
 Cascade Lake only. Contact your Supermicro sales rep for more info.
On-Board Devices
Chipset
  • Intel® C622 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers
  • Dual Port 10GbE from C622
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC
Input / Output
SATA
  • 8 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 3.0 ports (rear)
Video
  • 1 VGA Connector
COM Port
  • 1 COM port (header)
System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM
Management
Software
  • Intel® Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • SSM, SPM,  SUM
  • SuperDoctor® 5
  • Watchdog
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmountable
  • Rackmount Kit (MCP-290-00057-0N)
Model
  • CSE-418GTS-R4000BP2
Dimensions
Height
  • 7.0" (178mm)
Width
  • 17.2" (437mm)
Depth
  • 29" (737mm)
Weight
  • Net Weight: 65.5 lbs (29.7 kg)
  • Gross Weight: 100 lbs (45.3 kg)
Available Colors
  • Black
Drive Bays / Storage
Hot-swap
  • Up to 24x 2.5" SAS/SATA drive bays
  • 8x 2.5" SATA supported natively
  • 2x 2.5" NVMe supported natively
M.2
  • 1 NVMe based M.2 SSD
  • Form Factors: 2260, 2280, 22110
Expansion Slots
PCI-Express
  • 11 PCI-E 3.0 x16 (FH, FL) slots
  • 1 PCI-E 3.0 x8 (FH, FL, in x16) slot
System Cooling
Fans
  • 8x 92mm heavy duty counter-rotating fans
Power Supply 2000W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W: 100 – 120Vac
  • 1800W: 200 – 220Vac
  • 1980W: 220 – 230Vac
  • 2000W: 230 – 240Vac
  • 2000W: 200 – 240Vac (UL/CUL only)
Dimension
(W x H x L)
  • 73.5 x 40 x 265 mm
Input
  • 100-120Vac / 12.5-9.5A / 50-60Hz
  • 200-220Vac / 10-9.5A / 50-60Hz
  • 220-230Vac / 10-9.8A / 50-60Hz
  • 230-240Vac / 10-9.8A / 50-60Hz
  • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V
  • Max: 83.3A / Min: 0A (100-120Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 166.7A / Min: 0A (230-240Vac)
  • Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
