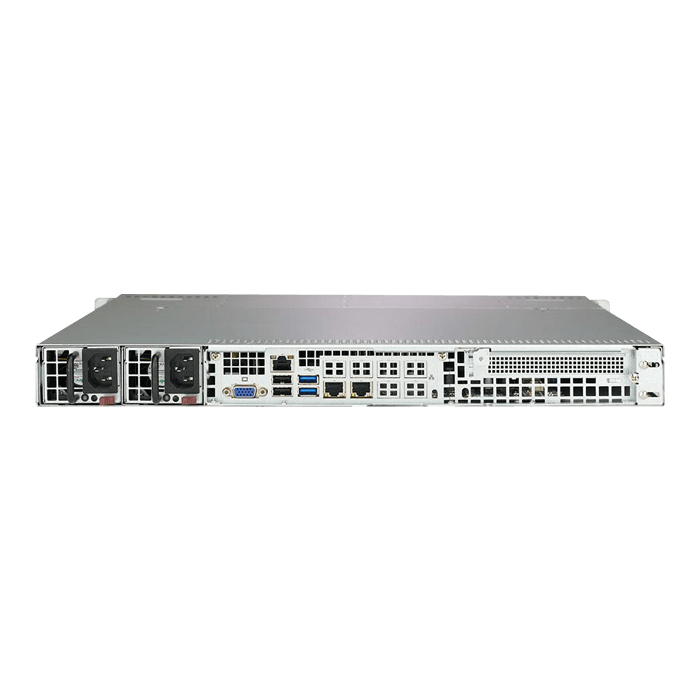

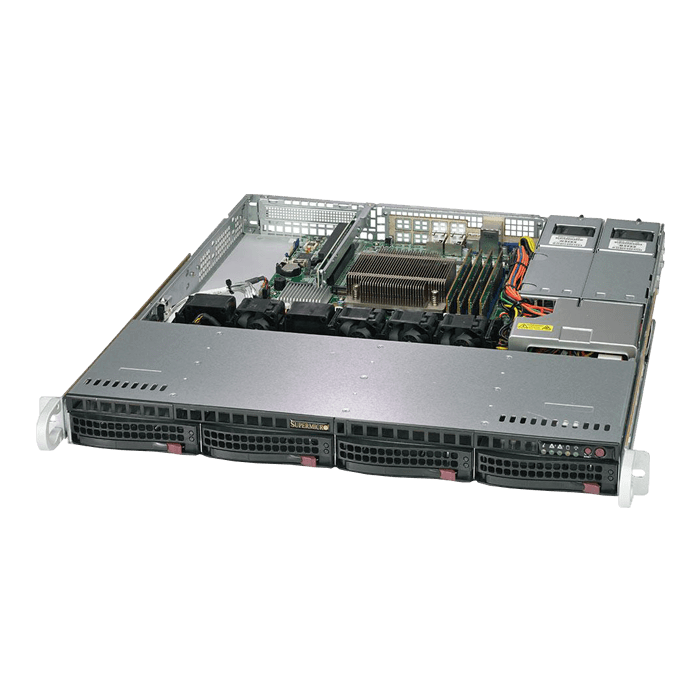

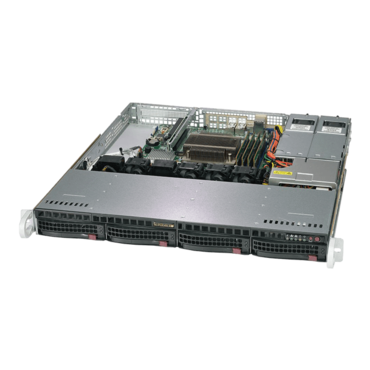

SuperServer 5019C-MR, 1U, Intel® C246, 4x 3.5" SATA Hotswap, 4x DDR4, 2x GbLAN, 400W Rdt PSU

Quantity:
  • SKU: 12592533
  • Manufacturer: SUPERMICRO
  • MPN: SYS-5019C-MR
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$1,401.30
Quantity:
SYS-5019C-MR
  • SuperServer 5019C-MR (Black)
Motherboard Super X11SCM-F
Processor
CPU
  • Single Socket H4 (LGA 1151),
    CPU TDP support up to 95W
  • Support Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors
Cores
  • 8 cores, 16 threads
Note
  • BIOS 1.0b or above is required to support Intel® Xeon® processor E-2200 series
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB Unbuffered ECC UDIMM
  • Up to DDR4-2666MHz
Memory Type
  • 2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB
On-Board Devices
Chipset
  • Intel® C246 chipset
SATA
  • SATA3 (6Gbps) via Intel C246 controller
  • RAID 0, 1, 5, 10 support
IPMI
  • ASPEED AST2500
Network Controllers
  • Dual LAN with Intel® I210-AT
Video
  • ASPEED AST2500 BMC
Input / Output
SATA
  • 6 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.1 ports (rear)
  • 2 USB 2.0 ports (rear)
Video
  • 1 VGA port
Serial Port / Header
  • 1 COM port (header)
TPM
  • 1 TPM 2.0 Header
System BIOS
BIOS Type
  • UEFI 256Mb
BIOS Features
  • ACPI 6.0
  • SMBIOS 2.7
  • Plug and Play (PnP)
  • RTC (Real Time Clock) Wakeup
  • UEFI 2.7
  • USB Keyboard support
  • PCI 3.0
Management
Software
  • Intel® Node Manager
  • IPMI 2.0
  • NMI
  • SSM, SPM, SUM
  • Watch Dog
  • SuperDoctor® 5
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-813MFTQC-R407CB
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 19.85" (503mm)
Package
  • 8.5" (H) x 23.4" (W) x 29.7" (D)
Weight
  • Gross Weight: 34 lbs (15.42 kg)
  • Net Weight: 21 lbs (9.53 kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED
Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x16 slot
M.2
  • M.2 Interface:
    1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
  • M.2 Form Factor: 2280/22110
  • M.2 Key: M-Key
Drive Bays
Hot-swap
  • 4 Hot-swap 3.5" drive bays
System Cooling
Fans
  • 4x 40x28mm PWM fans
AC/DC240V Input Redundant Power Supplies
400W 1U Redundant Power Supplies with PMbus
Total Output Power
  • 400W
Dimension
(W x H x L)
  • 54.5 x 40 x 220 mm
Input
  • 100 - 240Vac / 6.0 - 3.0A / 50-60Hz
  • 200 - 240Vdc / 3.4 - 3.2A (CCC Only)
+12V
  • Max: 33A / Min: 0.5A
+5V sb
  • Max: 3A / Min: 0A
Output Type
  • Gold Finger Connector Mating with Molex 45984-4343
Certification Platinum Level Certified
PC Health Monitoring
CPU
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN
  • 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
Temperature
  • Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
