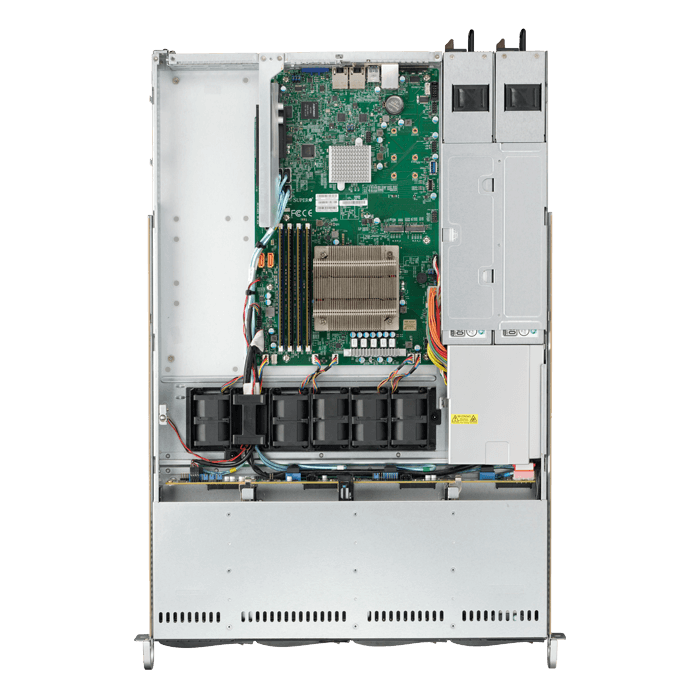

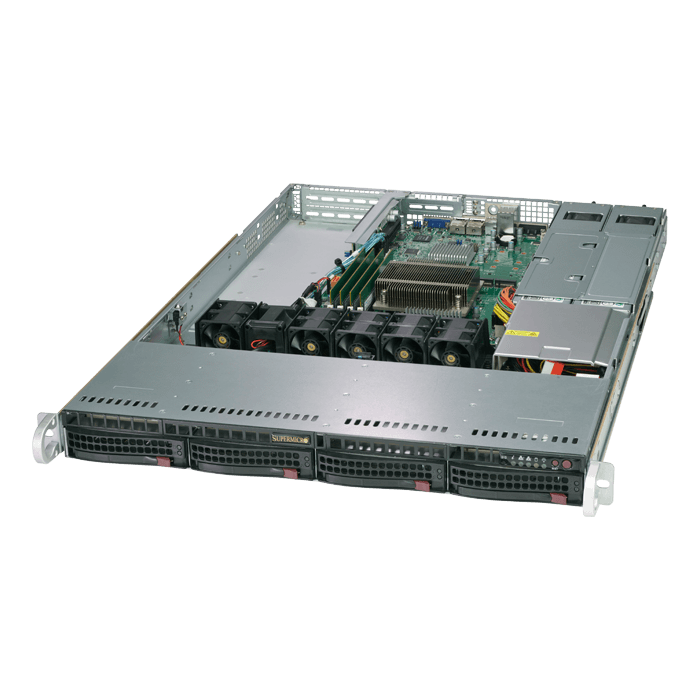

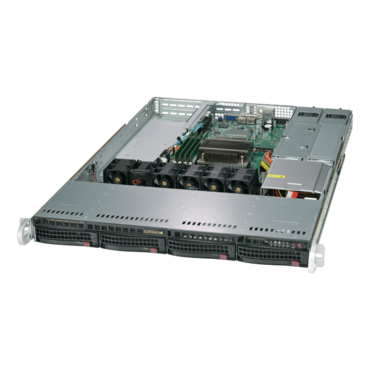

SuperServer 5019C-WR, 1U, Intel® C246, 4x 3.5" SATA Hotswap, 4x DDR4, Dual 1Gb Ethernet, 500W Rdt PSU
SuperServer 5019C-WR, 1U, Intel® C246, 4x 3.5" SATA Hotswap, 4x DDR4, Dual 1Gb Ethernet, 500W Rdt PSU
SuperServer 5019C-WR, 1U, Intel® C246, 4x 3.5" SATA Hotswap, 4x DDR4, Dual 1Gb Ethernet, 500W Rdt PSU
SuperServer 5019C-WR, 1U, Intel® C246, 4x 3.5" SATA Hotswap, 4x DDR4, Dual 1Gb Ethernet, 500W Rdt PSU

SuperServer 5019C-WR, 1U, Intel® C246, 4x 3.5" SATA Hotswap, 4x DDR4, Dual 1Gb Ethernet, 500W Rdt PSU

  • SKU: 12575631
  • Manufacturer: SUPERMICRO
  • MPN: SYS-5019C-WR
  • Availability: TEMPORARILY OUT OF STOCK
Price
$1,455.21
Quantity:
  • HA, High flexibility, VM, Communication
  • Application and data serving
  • Appliance Server
  1. Single Socket H4 (LGA 1151) supports
    Intel® Xeon® processor E-2100 /
    E-2200 series, 8th/9th Gen.
    Intel® Core™ i3 Processors,
    Intel® Celeron®, Intel® Pentium®
  2. Intel® C246 chipset
  3. Up to 128GB ECC UDIMM, up to
    DDR4-2666MHz; 4 DIMM slots
  4. 1 PCI-E 3.0 x16 or 2 PCI-E x8,
    1 PCI-E 3.0 x4 (in x8) slot
  5. 4 Hot-swap 3.5" drive bays
  6. M.2 Interface:
    1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
    M.2 Form Factor: 2260/2280/22110
    M.2 Key: M-Key
  7. 2 GbE LAN ports, 1 dedicated IPMI LAN
  8. 2 USB 3.1 (rear), 2 USB 2.0 (rear)
  9. 1 VGA, 2 COM, 1 TPM header
  10. 500W High efficiency (96%) Redundant
    PSU, 54.5mm wide; Platinum Level
Product SKUs
SYS-5019C-WR
  • SuperServer 5019C-WR (Black)
Motherboard
Super X11SCW-F
Processor
CPU
  • Single Socket H4 (LGA 1151),
    CPU TDP support up to 95W
  • Support Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors
Cores
  • 8 cores, 16 threads
Note
  • BIOS 1.0b or above is required to support Intel® Xeon® processor E-2200 series
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB Unbuffered ECC UDIMM
  • Up to DDR4-2666MHz
Memory Type
  • 2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB
On-Board Devices
Chipset
  • Intel® C246 chipset
SATA
  • SATA3 (6Gbps) via Intel C246 controller
  • RAID 0, 1, 5, 10 support
IPMI
  • ASPEED AST2500
Network Controllers
  • Dual LAN with Intel® I210-AT
Video
  • ASPEED AST2500 BMC

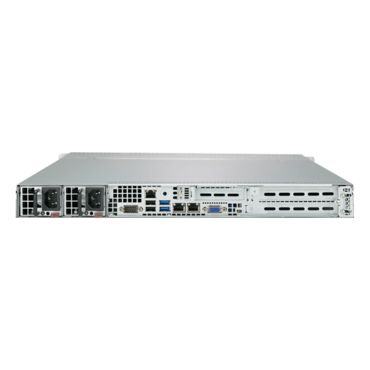

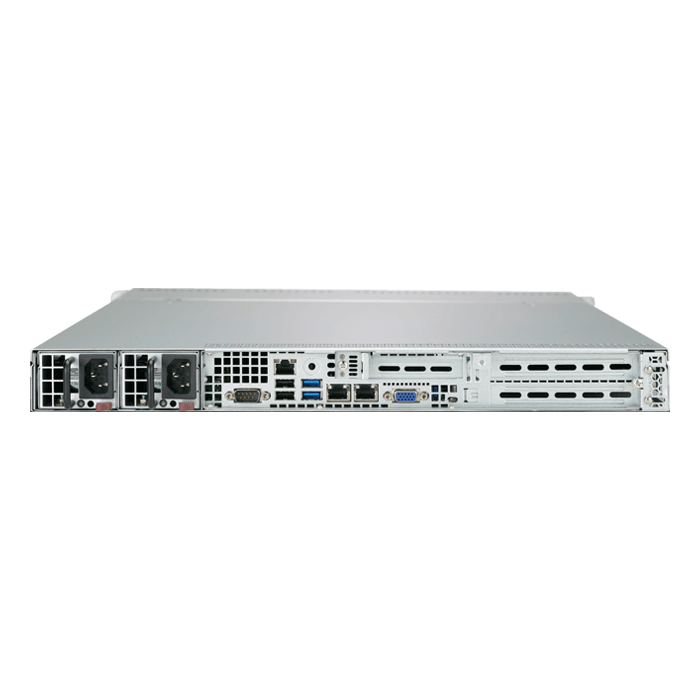

Input / Output
SATA
  • 6 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.1 ports (rear)
  • 2 USB 2.0 ports (rear)
Video
  • 1 VGA port
Serial Port / Header
  • 1 COM port (header), 1 COM port (rear)
TPM
  • 1 TPM 2.0 Header
System BIOS
BIOS Type
  • UEFI 256Mb
BIOS Features
  • ACPI 6.0
  • SMBIOS 2.7
  • Plug and Play (PnP)
  • RTC (Real Time Clock) Wakeup
  • UEFI 2.7
  • USB Keyboard support
  • PCI 3.0
Management
Software
  • Intel® Node Manager
  • IPMI 2.0
  • NMI
  • SSM, SPM, SUM
  • Watch Dog
  • SuperDoctor® 5
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-815TQC-R504WB2
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 25.6" (650mm)
Package
  • 8.5" (H) x 23.5" (W) x 33.7" (D)
Weight
  • Gross Weight: 38 lbs (17.24 kg)
  • Net Weight: 25 lbs (11.34 kg)
Available Colors
  • Black

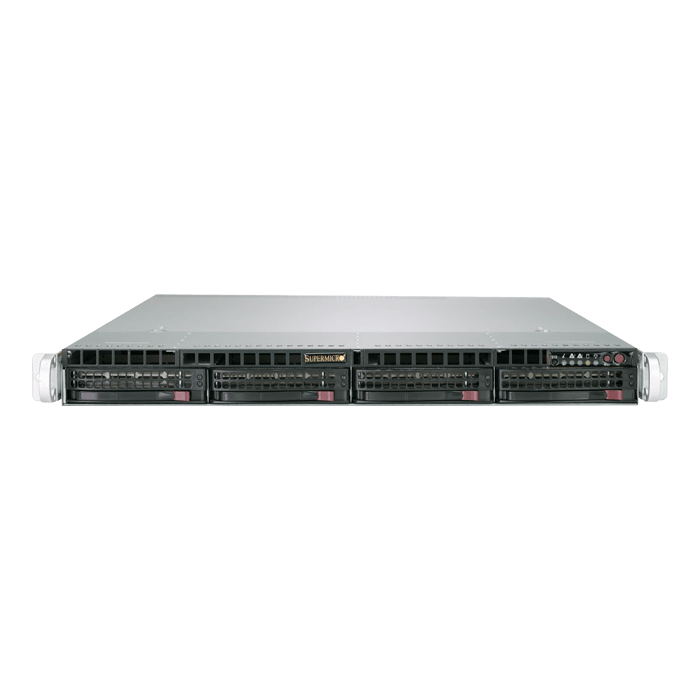

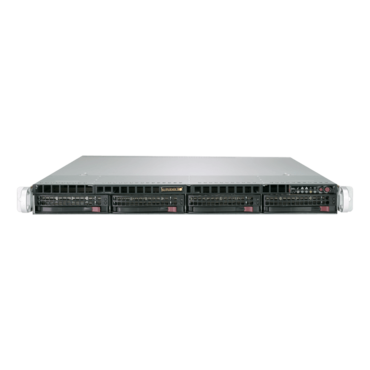

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
  • UID button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED
Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x16 or 2 PCI-E x8 slots
  • 1 PCI-E 3.0 x4 (in x8) slot
M.2
  • M.2 Interface:
    1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
  • M.2 Form Factor: 2260/2280/22110
  • M.2 Key: M-Key
Drive Bays
Hot-swap
  • 4 Hot-swap 3.5" drive bays
System Cooling
Fans
  • 5x 4cm heavy duty counter-rotating fans with optimal fan speed control
Power Supply 500W Redundant Power Supplies with PMBus
Total Output Power
  • 500W: 100 – 240Vac
Dimension
(W x H x L)
  • 54.5 x 40.25 x 320 mm
Input
  • 100-240Vac, 50-60Hz, 6.1-2.6A
+12V
  • Max: 42A / Min: 0.5A
+5Vsb
  • Max: 4A / Min: 0A
Output Type
  • Gold Finger Connector Mating with Molex 45984-4343
With Power Distributor
  • +5V: 25A
  • +3.3V: 12A
  • -12V: 0.6A
Certification Platinum Certified
[ Test Report ]
PC Health Monitoring
CPU
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN
  • 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
Temperature
  • Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
