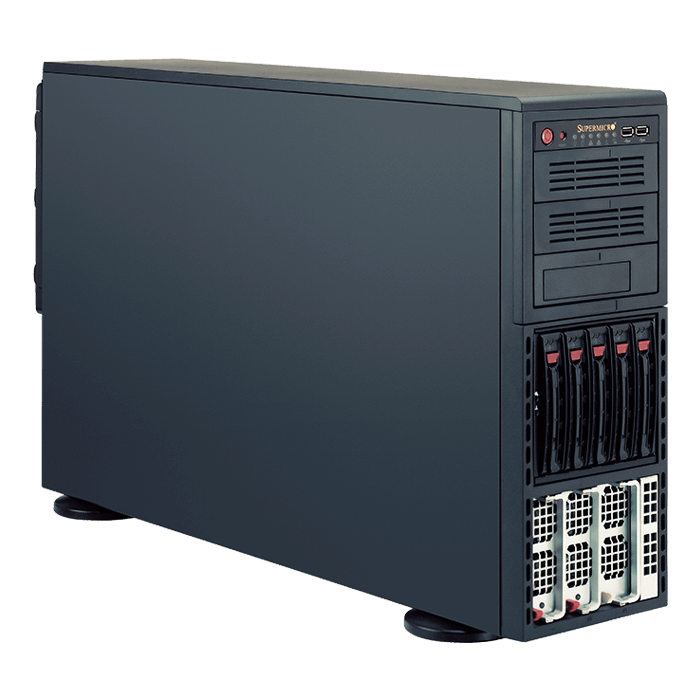

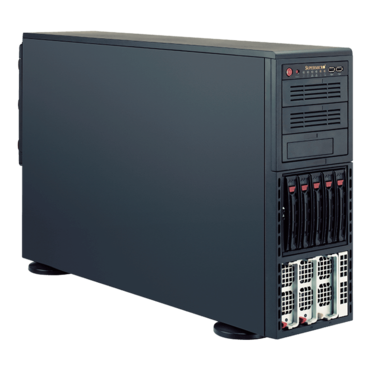

SuperServer 8048B-TR3F, 4U/Tower, Intel C602J, 5x SATA, 32x DDR3, Dual 1Gb Ethernet, 1400W Rdt PSU

SKU: 9595713

Manufacturer: SUPERMICRO

MPN: SYS-8048B-TR3F

Availability: Low Stock


Price: $2,771.50
or as low as $89.42/month
Quantity:
  • Quad socket R1 (LGA 2011) supports
    Intel® Xeon® processor E7-8800 v3 /
    E7-4800 v3 family (18-Core), w/ QPI
    up to 9.6 GT/s; E7-8800 v2 /
    4800 v2 family (15-Core),
    w/ QPI up to 8 GT/s
  • Up to 2TB DDR3 (64GB LRDIMM), up to
    1600MHz; 32x DIMM slots
  • 2x PCI-E 3.0 x16 FH slot;
    2x PCI-E 3.0 x8 FH slot
  • Intel® i350 Dual port GbE LAN
  • I/O ports: 2x GbE LAN, 1x Dedicated
    LAN for IPMI Remote Management,
    1x VGA, 1x COM port, 3x USB 2.0
  • 5x 3.5" Hot-swap SATA Drive Bays
  • 3x 9cm + 3x 8cm Heavy Duty fans with
    speed control
  • 1400W Redundant Digital PS
    Platinum Level (95%)
Product SKUs
SYS-8048B-TR3F
  • SuperServer 8048B-TR3F (Black)
Motherboard
Super X10QBL
Processor/Cache
CPU
  • Intel® Xeon® processor E7-8800 v3* / E7-4800 v3* / E7-8800 v2 / E7-4800 v2 family (up to 18 Cores and 165W TDP)
  • Quad Socket R1 (LGA 2011)
Cache
  • Up to 45 MB
System Bus
  • QPI up to 9.6 GT/s
Note:
  • E7-48XX/88XX v3 family requires Rev. 2.0x or above mother board w/ Jordan Creek II
System Memory
Memory Capacity
  • 32x 240-pin DDR3 DIMM slots
  • Supports up to 2TB DDR3, ECC Registered memory (RDIMM/LRDIMM) in 32 DIMM slots
Memory Type
  • 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.5 V, 1.35 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C602J chipset
SATA
  • SATA2 (3Gbps) with RAID 0, 1, 5, 10
  • SATA3 (6Gbps) with RAID 0, 1
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® i350 Dual port GbE LAN
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201F PHY (dedicated IPMI)
Graphics
  • ASPEED 2400
Input / Output
SATA
  • 2x SATA3 (6Gbps) ports
  • 4x SATA2 (3Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x dedicated LAN port for IPMI on AOM
USB
  • 3x USB 2.0 rear ports
Serial Port / Header
  • 2x Fast UART 16550 ports: 1 rear and 1 header
DOM
  • 2x DOM (Disk on Module) power connectors
System BIOS
BIOS Type
  • 16MB SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • PCI 2.2
  • ACPI up to 3.0
  • USB Keyboard support
Chassis
Form Factor
  • 4U Rackmount/Tower
Model
  • CSE-748TQ-R1K43B
Dimensions and Weight
Height
  • 18.2" (462mm)
Width
  • 7.0" (178mm)
Depth
  • 28.4" (721mm)
Weight
  • Net Weight: 65.5 lbs (29.7 kg)
  • Gross Weight: 86.0 lbs (39.0 kg)
Available Colors
  • Black
Drive Bays
Hot-swap
  • 5x 3.5" Hot-swap Drive Bays
Expansion Slots
PCI-Express
  • 2x PCI-E 3.0 x16 Full-heigh slot
  • 2x PCI-E 3.0 x8 Full-heigh slot
Backplane
SAS/SATA HDD Backplane
System Cooling
Fans
  • 3x 9cm Heavy Duty fans with speed controlCooling Fans
  • 3x 8cm Heavy Duty fans with speed controlCooling Fans
Shrouds
  • 1x Air Shroud (MCP-310-74806-0B)
Power Supply
Redundant 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2
AC Voltage
  • 100-240 V, 50-60 Hz, 15 Amp max
+12V
  • 100 Amp/115 Vac
  • 117 Amp/230 Vac
With Power Distributor
  • +5V: 30 Amp
  • +3.3V: 25 Amp
  • -12V: 0.6 Amp
Certification 80 Plus Platinum Certified
PC Health Monitoring
CPU
  • Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages.
  • 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V
FAN
  • 4-pin fan headers with tachometer status monitoring
  • Low noise fan speed control mode
Temperature
  • Monitoring for CPU and system environment
  • Thermal Control for 9x fan connectors
Other Features
  • Chassis intrusion detection
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
