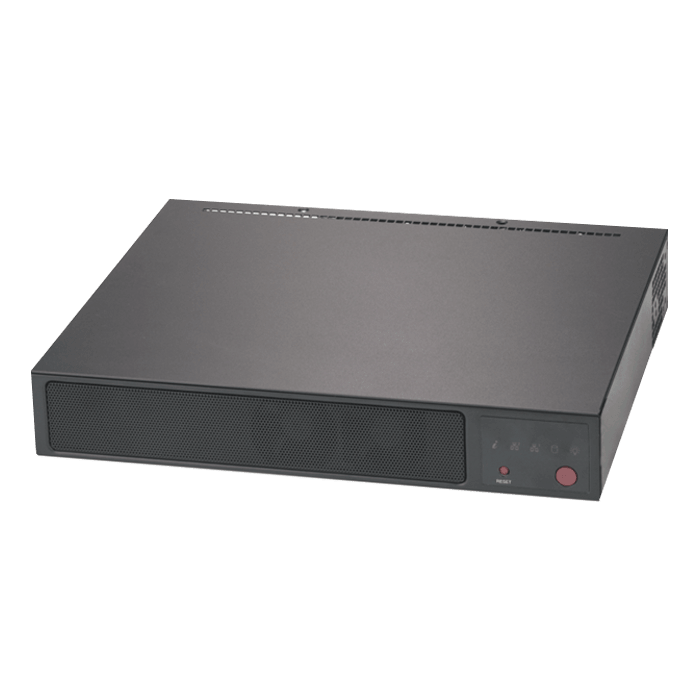

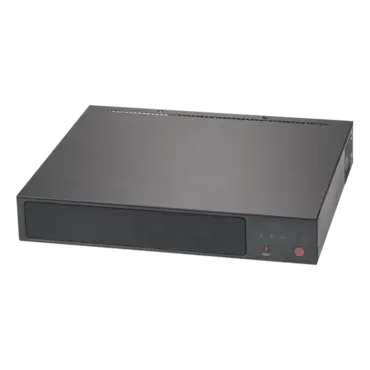

SuperServer E300-9A, Mini-1U, Intel® Atom® C3858, 2x SATA, 4x DDR4, Dual 1Gb Ethernet/Dual 10Gb SFP+, 84W PSU

Quantity:
  • SKU: 11492048
  • Manufacturer: SUPERMICRO
  • MPN: SYS-E300-9A
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$1,290.00
Quantity:
  • Embedded Networking Applications
  • Network Security Appliance
  • FireWall Applications
  • Virtualization Server
  • 1. Intel® Atom® processor C3858,
    Single socket FCBGA 1310
  • 2. System on Chip
  • 3. 2 fixed 2.5" drive bays
    (top drive bay area share with AOC)
  • 4. Up to 64GB Unbuffered ECC/non-ECC
    SO-DIMM, up to DDR4-2400MHz,
    in 4 DIMM slots
  • 5. 1 PCI-E 3.0 x4 AOC slot (LP)
  • 6. 2x 10GBase-T, 2x 10G SFP+, and
    4x 1GbE LAN ports
  • 7. VGA via BMC, 2 USB 3.0 ports
  • 8. 2x 40mm chassis fans, passive
    CPU heat sink
  • 9. 84W DC power adapter
Product SKUs
SYS-E300-9A
  • SuperServer E300-9A (Black)
Motherboard
Super A2SDi-TP8F
Processor/Cache
CPU
  • Intel® Atom® processor C3858
  • FCBGA 1310
  • CPU TDP support 25W
System Memory
Memory Capacity
  • 4x DDR4 DIMM sockets
  • Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type
  • 2400/2133/1866MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors
    (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 4 SATA3 (6Gbps) ports
Network Controllers
  • Quad LAN (2 10GBase-T, 2 10Gb SFP+) via Intel® C3000 SoC
  • Quad Gigabit Ethernet LAN via Intel® i350-AM4
Graphics
  • Aspeed AST2400
Input / Output
SATA
  • 2 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 2 RJ45 10Gb SFP+ LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Display
  • 1 VGA port
DOM
  • 1 SuperDOM (Disk on Module) power connector
TPM
  • TPM 2.0 header
Chassis
Form Factor
  • Mini-1U
Model
  • CSE-E300
Dimensions
Width
  • 10" (254mm) / 15" (381mm) - pkg.
Height
  • 1.7" (43mm) / 10.87" (276mm) - pkg.
Depth
  • 8.9" (226mm) / 5.59" (142mm) - pkg.
Weight
  • Gross Weight: 7.5 lbs (3.4 kg)
  • Net Weight: 3.45 lbs (1.56 kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED (Hard drive activity LED)
Expansion Slots
M.2
  • Interface: PCI-E 3.0 x2 or SATA3
  • Form Factor: M Key 2242/2280
Drive Bays
Internal
  • 2 fixed 2.5" drive bays, one with bracket, one on base mount (1 fixed 2.5" drive bay when AOC area is occupied)
System Cooling
Fans
  • 2x 40mm chassis fans
Power Supply
84W DC power adapter
System BIOS
BIOS Type
  • 128Mb SPI Flash with AMI BIOS
BIOS Features
  • PCI 3.0
  • ACPI 5.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.8
  • UEFI 2.4
  • RTC (Real Time Clock) Wakeup
Management
Software
  • IPMI 2.0
  • KVM with dedicated LAN
  • NMI
  • SuperDoctor® 5
  • Watch Dog
Power Configurations
  • ACPI / APM Power Management
  • CPU Fan auto-off in sleep mode
  • Power-on mode for AC power recovery
Fan
  • Fans with tachometer status monitoring
  • Status monitor for speed control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    0°C to 40°C (32°F to 104°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
