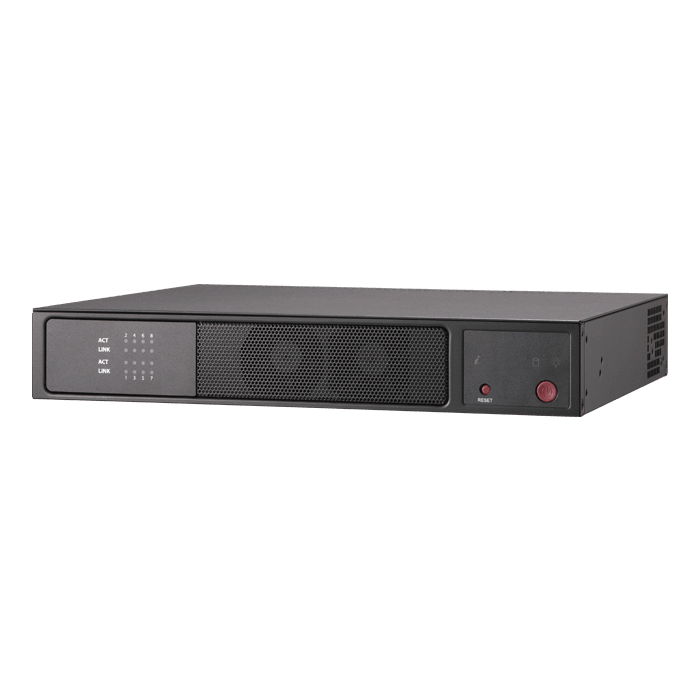

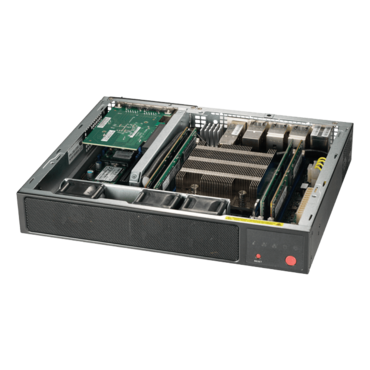

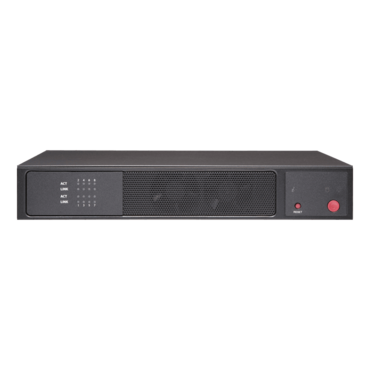

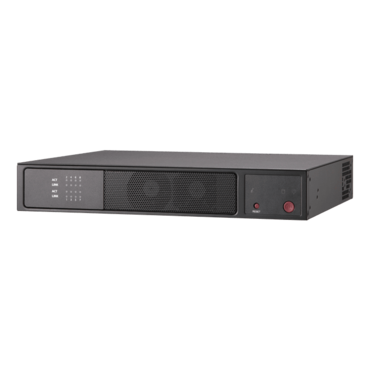

SuperServer E300-9D, Compact, Intel® Xeon® processor D-2123IT, 1x SATA, 4x DDR4, 120W DC PSU w/ PFC

SKU: 12132222

Manufacturer: SUPERMICRO

MPN: SYS-E300-9D

Availability: Special Order


Price: $849.12
or as low as $27/month
Quantity:
  • Network Security Appliance
  • Universal Customer Premise Equipment (uCPE)
  • Software Defined WAN (SD-WAN)
  • NFV Edge Computing Server
  • Virtualization Server
  • IoT Edge Computing / Gateway
  1. Intel® Xeon® processor D-2123IT, 4-Core, 8 Threads, 60W
  2. System on Chip
  3. 1 Internal 2.5" drive bay
  4. Up to 512GB ECC LRDIMM, up to 256GB ECC/non-ECC RDIMM DDR4-2400Mz; in 4 DIMM slots
  5. 1 onboard OCuLink port (or 1 PCI-E 3.0 x4 NVMe), 1 PCI-E 3.0 x8 (LP) open slot
  6. 2x 10GBase-T LAN and 1 dedicated LAN for IPMI 2.0
  7. 1 VGA, 2 USB 3.0, 1 TPM 2.0 header
  8. 3x 40x28mm 4-PIN PWM Fan
  9. 120W Lockable DC Power Adapter
Product SKUs
SYS-E300-9D
  • SuperServer E300-9D (Black)

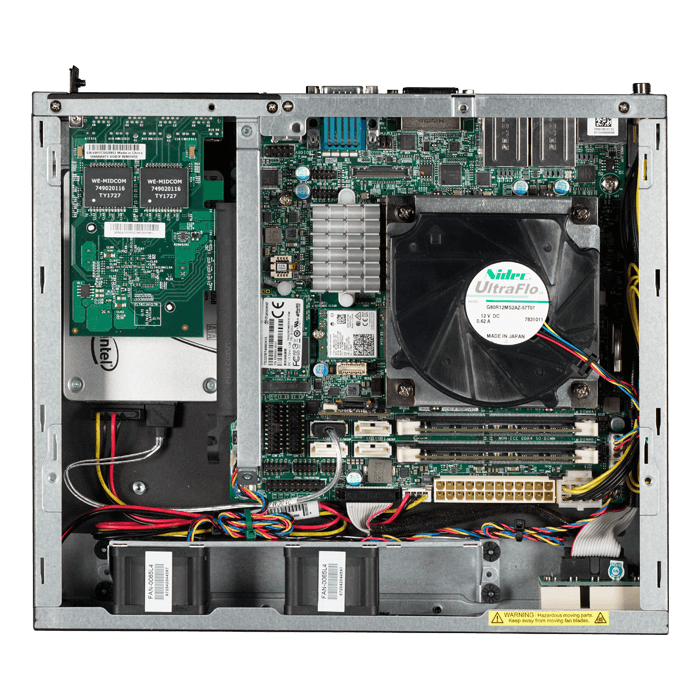

Motherboard
Super X11SDV-4C-TLN2F
Processor/Cache
CPU
  • Intel® Xeon® processor D-2123IT,

    CPU TDP support 60W
Cores / Cache
  • 4 Cores, 8 Threads
System Memory
Memory Capacity
  • Up to 512GB DDR4 ECC LRDIMM
  • Up to 256GB DDR4 ECC/non-ECC RDIMM
  • 4 DIMM slots
Memory Type
  • 2666/2400/2133MHz ECC DDR4 ECC LRDIMM and ECC/Non-ECC RDIMM
  • Operating speed up to 2400MHz
DIMM Sizes
  • RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
  • LRDIMM: 16GB, 32GB, 64GB, 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors

    (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 4 SATA3 (6Gbps) ports; RAID 0,1,5,10 RSTe
Network Controllers
  • Dual 10GBase-T LAN, SoC
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • Aspeed AST2500 BMC
Input / Output
SATA
  • 1 SATA3 (6Gbps) port (SATA/SAS HDD/SSD)
LAN
  • 2 10GBase-T LAN ports
  • 1 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Display
  • 1 VGA port
TPM
  • 1 TPM 2.0 header
Chassis
Form Factor
  • Compact
Model
  • CSE-E300
Dimensions
Width
  • 10" (254mm) / 15" (381mm) - pkg.
Height
  • 1.7" (43mm) / 10.87" (276mm) - pkg.
Depth
  • 8.9" (226mm) / 5.59" (142mm) - pkg.
Weight
  • Gross Weight: 7.5 lbs (3.4 kg)
  • Net Weight: 3.45 lbs (1.56 kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED (Hard drive activity LED)
Expansion Slots
PCI-Express
  • 1 onboard OCuLink port (or 1 PCI-E 3.0 x4 NVMe)
  • 1 PCI-E 3.0 x8 (LP) open slot
Drive Bays
Internal
  • 1 Internal 2.5" drive bay
System Cooling
Fans
  • 3x 40x28mm 4-PIN PWM Fan
Power Supply
120W Lockable DC Power Adapter with PFC, 150W Lockable DC power Adapter with PFC (optional), adapter cannot be put in rackmount kit
System BIOS
BIOS Type
  • 128Mb SPI Flash with AMI BIOS
BIOS Features
  • PCI 3.0
  • ACPI 5.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.8
  • UEFI 2.4
  • RTC (Real Time Clock) Wakeup
Management
Software
  • Intel® Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • NMI
  • SUM
  • SuperDoctor® 5
  • Watch Dog
Power Configurations
  • ACPI Power Management
  • +12V DC Power Input
  • Control of power-on for recovery from AC power loss
  • CPU thermal trip support for processor protection
  • M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL
Fan
  • Fans with tachometer status monitoring
  • Status monitor for speed control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Operating Environment / Compliance
RoHS

  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

    0°C to 40°C (32°F to 104°F)
  • Non-operating Temperature:

    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:

    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:

    5% to 95% (non-condensing)
