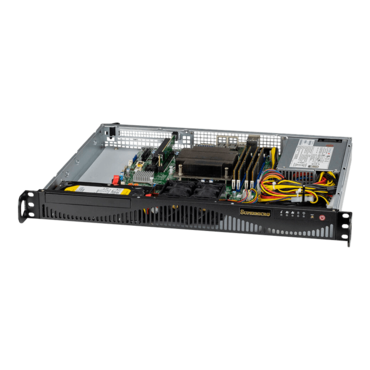

SuperServer SYS-510T-ML, Mini-1U, Intel® C252, 2x 3.5" SATA, 4x DDR4, 2x 1Gb Ethernet, 350W PSU
SuperServer SYS-510T-ML, Mini-1U, Intel® C252, 2x 3.5" SATA, 4x DDR4, 2x 1Gb Ethernet, 350W PSU

SuperServer SYS-510T-ML, Mini-1U, Intel® C252, 2x 3.5" SATA, 4x DDR4, 2x 1Gb Ethernet, 350W PSU

  • SKU: 14738477
  • Manufacturer: SUPERMICRO
  • MPN: SYS-510T-ML
  • Availability: CONTACT US
Price
$738.44
Product SKUs
SYS-510T-ML
  • SuperServer SYS-510T-ML (Black)
Motherboard Super X12STL-F
Processor
CPU
  • Single Socket H5 LGA 1200
  • Support Intel® Xeon® processor E-2300 series and 10th Gen. Pentium® Processors
  • Support CPU TDP 95W
Cores
  • Up to 8C/16T; Up to 16MB Cache
System Memory
Memory
  • Memory Capacity: 4 DIMM slots
  • Up to 128GB: 4x 32 GB DRAM
  • Memory Type: 3200/2933/2666MHz ECC DDR4 UDIMM
Memory Voltage
  • 1.2 V
Error Detection
  • Yes
On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
Chipset
  • Intel® C252
Network Connectivity
  • 2x 1GbE BaseT with Intel® i210
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

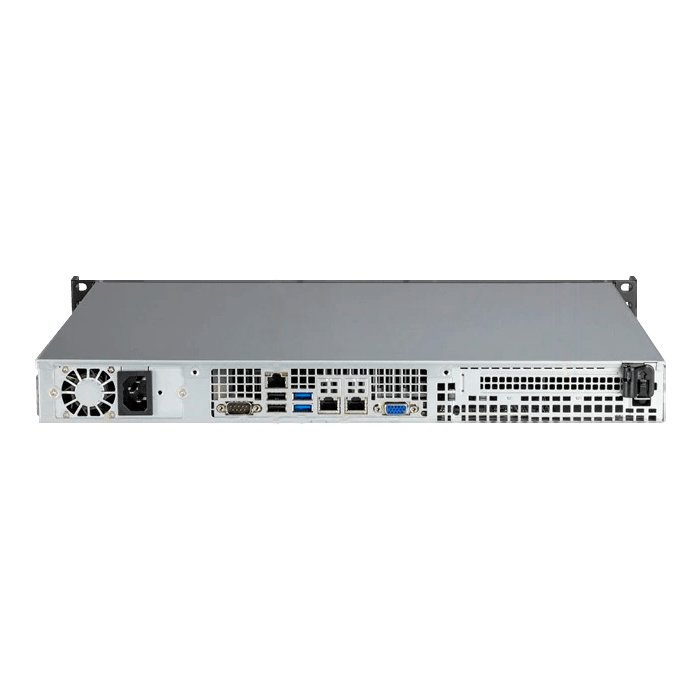

Input / Output
SATA
  • 6 SATA (6Gbps) port(s)
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ45 1GbE LAN ports
USB
  • 4 USB 2.0 port(s) (2 headers; 2 rear)
  • 5 USB 3.2 Gen 1 port(s) (2 headers; 2 rear; 1 Type A)
Video
  • 1 VGA port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
DOM
  • 2 SuperDOM (Disk on Module) port with built-in power
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • IPMI2.0
  • Redfish API
  • SSM
  • SPM
  • KVM with dedicated LAN
  • SUM
  • NMI
Power Configurations
  • ACPI/APM Power Management
PC Health Monitoring
CPU
  • 6 + 1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • Mini-1U
Model
  • CSE-512F-350B1
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 14.5" (368mm)
Package
  • 6.3" (H) x 22" (W) x 20" (D)
Weight
  • Gross Weight: 14 lbs (6.35 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off
  • System Reset
LEDs
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information
Expansion Slots
PCI-Express (PCI-E)
    • Slot 1: PCI-E 4.0 x8 (in x16 FHHL)


(Pentium CPUs provide PCI-e 3.0 only.)
Drive Bays / Storage
Drive Bays
  • 2x 3.5" SATA drive bays
M.2
  • 1x PCI-E 3.0 x 4
  • M-key, 2280, 22110
System Cooling
Fans
  • 2 counter-rotation PWM 40x40x56mm Fan(s)
Power Supply
1U 350W Multi-output, Platinum level, W100xL180xH40mm,RoHS/REACH
Total Output Power
  • 350W
Dimension

(W x H x L)
  • 100 x 40 x 180 mm
AC Input
  • 350W: 100-240Vac / 2.5A-5A / 50-60Hz
+12V
  • Max: 29A / Min: 0.5A
5V SB
  • Max: 3A / Min: 0A
Certification Platinum Level
Operating Environment
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
