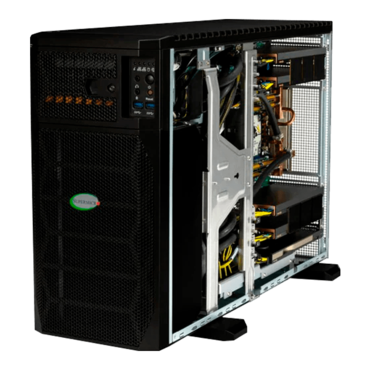

SuperServer SYS-751GE-TNRT-NV1, Tower / 5U, 2x Intel® Xeon® Gold 6444Y Processors, 4x NVIDIA Liquid-cooled A100 with NVIDIA NVLink™, 6x NVMe 1.92TB, 16x 32GB 4800MHz ECC DDR5 RDIMM, NVIDIA Connect-X6 Dx 25G, 2200W Rdt PSU, Ubuntu 22.04 LTS

SKU: 16356938
Manufacturer: SUPERMICRO
MPN: SYS-751GE-TNRT-NV1
Availability: TEMPORARILY OUT OF STOCK

Price

$143,636.14

Product SKUs	SuperServer SYS-751GE-TNRT-NV1 (Black Front & Black Body)
Motherboard	Super X13DEG-QT
Processor
CPU	Dual Socket E (LGA-4677) 4th Gen Intel® Xeon® Scalable processors
Core Count	16C/32T; 30MB Cache per CPU
System Memory
Memory	Memory Capacity: 16 DIMM slots 512GB: 16x 32 GB DRAM Memory Type: 4800MHz ECC DDR5 DRAM
Memory Voltage	1.1 V
Error Detection	ECC
On-Board Devices
SATA	SATA3 (6Gbps); RAID 0/1/5/10 support
Chipset	Intel® C741
Network Connectivity	2x 10GbE BaseT with Intel® X550-AT2 1x 1GbE BaseT with ASPEED AST2600 1x 25GbE SFP28 with NVIDIA Connect-X-6 Dx
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
SATA	2 SlimSAS port(s) 2 SuperDOM port(s)
NVMe	4 NVMe U.2
LAN	1 RJ45 1GbE (Dedicated IPMI port) 1 SFP28 25GbE 2 RJ45 10GbE
USB	2 USB 3.2 Gen1x2; port(s) (2 Front_USB) 1 USB 3.2 Gen2x1 (Type C) port(s) (1 Rear_USB) 3 USB 3.2 Gen1 port(s) (3 Rear_USB)
Video	1 VGA port(s)
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Power Manager (SPM) Supermicro Server Manager (SSM) Redfish API
Power Configurations	ACPI Power Management Power-on mode for AC power recovery
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Chassis
Form Factor	Tower or 5U Rackmount
Model	CSE-759TS-R2K21BP
Dimensions and Weight
Height	8.6" (218.4mm)
Width	17.9" (454.7mm)
Depth	27.6" (701mm)
Package	25.8" (H) x 15.3" (W) x 37.6" (D)
Weight	Net Weight: 88 lbs (44 kg) Gross Weight: 121 lbs (55 kg)
Available Color	Black Front & Black Body
Front Panel
Buttons	Power On/Off button Reset button
LEDs	HDD activity LED Information LED Network 1 activity LED Network 2 activity LED Power status LED
Expansion Slots
PCI-Express (PCIe)	7 PCIe 5.0 x16 FHFL slot(s)
Note	4 NVIDIA Liquid-cooled A100 with NVIDIA NVLink™, NVIDIA Connect-X6 Dx 25G Network adapter installed
Drive Bays / Storage
Hot-swap	8x 2.5" hot-swap NVMe/SATA drive bays (2 1.92TB NVMe Drives RAID 1 (OS), 4 1.92TB NVMe Drives (Data) installed)
M.2	2 M.2 NVMe
System Cooling
Fans	1 fan 8CM Fan(s) 2 fan 12CM Fan(s)
Power Supply
2200W Redundant Titanium Level power supplies
Certification	Titanium Level
Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 25°C (50°F ~ 77°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
