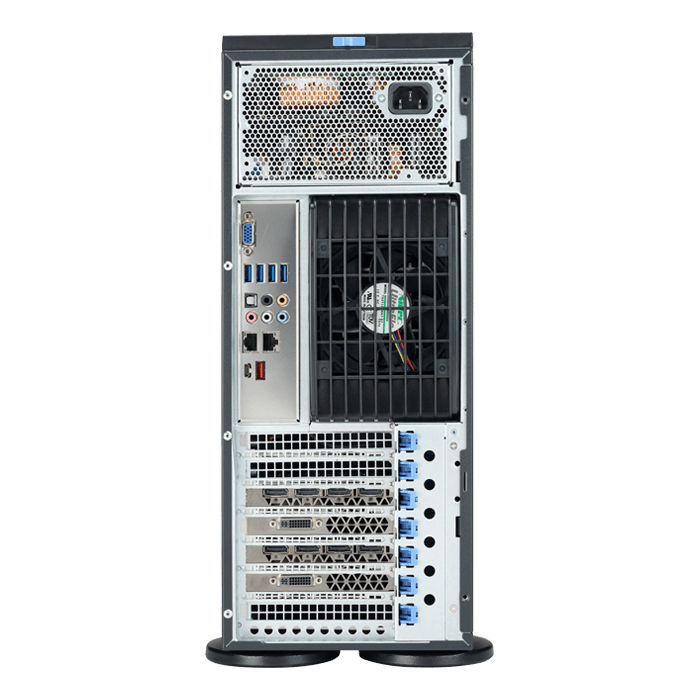

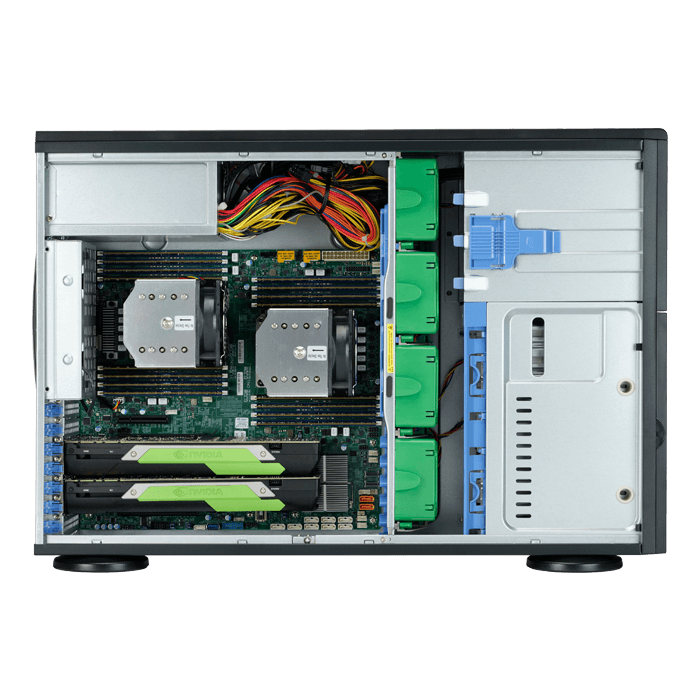

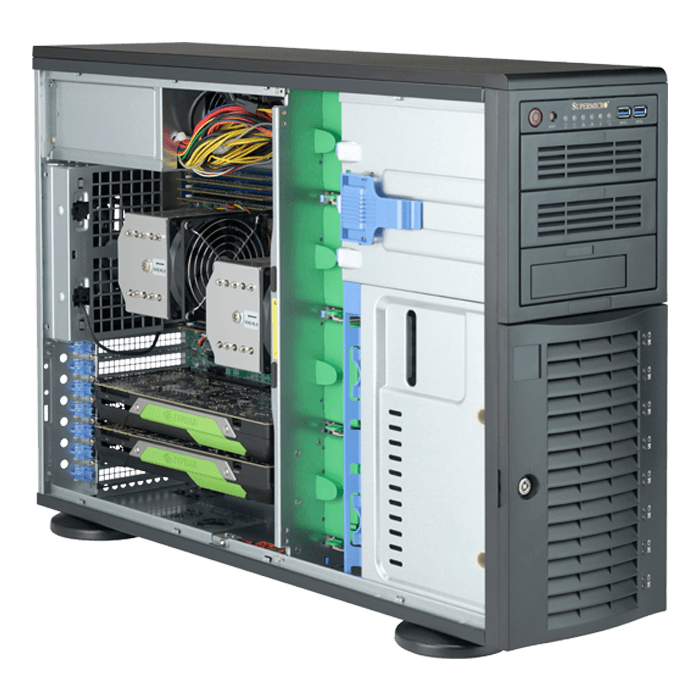

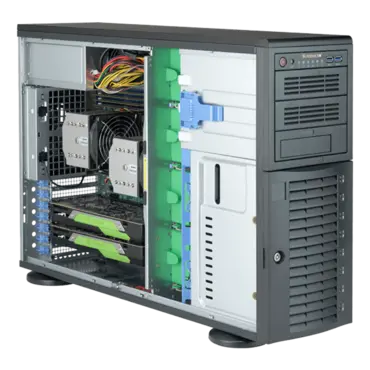

SuperWorkstation 7049A-T, 4U/Tower, Intel C621, 8x SATA, 2x NVMe, M.2, 16x DDR4, Dual 1Gb Ethernet, 1200W PSU
SuperWorkstation 7049A-T, 4U/Tower, Intel C621, 8x SATA, 2x NVMe, M.2, 16x DDR4, Dual 1Gb Ethernet, 1200W PSU
SuperWorkstation 7049A-T, 4U/Tower, Intel C621, 8x SATA, 2x NVMe, M.2, 16x DDR4, Dual 1Gb Ethernet, 1200W PSU
SuperWorkstation 7049A-T, 4U/Tower, Intel C621, 8x SATA, 2x NVMe, M.2, 16x DDR4, Dual 1Gb Ethernet, 1200W PSU

SuperWorkstation 7049A-T, 4U/Tower, Intel C621, 8x SATA, 2x NVMe, M.2, 16x DDR4, Dual 1Gb Ethernet, 1200W PSU

  • SKU: 11456862
  • Manufacturer: SUPERMICRO
  • MPN: SYS-7049A-T
  • Availability: CONTACT US
Price
$1,972.31
  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM slots
  • 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 slots, Thunderbolt header for Thunderbolt 3.0 AOC support
  • 2x 1GbE LAN ports
  • 7.1 HD Audio
  • 8 Hot-swap 3.5" SAS3/SATA3 drive bays (SATA3 dafault), 1 M.2 slot, 2 NVMe support with opt. cables
  • 1200W High-efficiency Power Supply Platinum Level Certified
Product SKUs
SuperWorkstation
  • SYS-7049A-T (Black)
Motherboard
Super X11DAi-N
Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • Intel® Xeon® Scalable Processors,
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-205W with IVR
Cores
  • Up to 28 Cores with Intel® HT Technology
System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type
  • 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Dual LAN with GbE from C621
IPMI
  • ASPEED AST2500
Audio
  • RealTek ALC888 7.1 High Definition Audio with S/PDIF header
Input / Output
SATA
  • 10 SATA3 (6Gbps) ports
NVMe
  • 2 NVMe support with optional cables
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 6 USB 3.0 ports (4 rear, 2 front)
  • 2 USB 3.1 ports (rear)
Audio
  • 7.1 HD Audio with optical S/PDIF
Video
  • 1 VGA port
Serial Port / Header
  • 1 COM port (header)
DOM
  • 2 SuperDOM (Disk on Module) ports
TPM
  • 1 TPM 2.0 Header
System BIOS
BIOS Type
  • UEFI 128M
Management
Software
  • Intel® Node Manager
  • IPMI 2.0
  • SSM, SPM, SUM
  • SuperDoctor® 5
  • Watchdog
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for 8x fan connectors
Chassis
Form Factor
  • 4U Rackmountable / Tower
  • Optional Rackmount Kit
Model
  • CSE-743AC-1200B-SQ
Dimensions and Weight
Height
  • 17.8" (452mm)
Width
  • 7.0" (178mm)
Depth
  • 25.5" (648mm)
Gross Weight
  • 71 lbs (32.2 kg)
Available Colors
  • Black

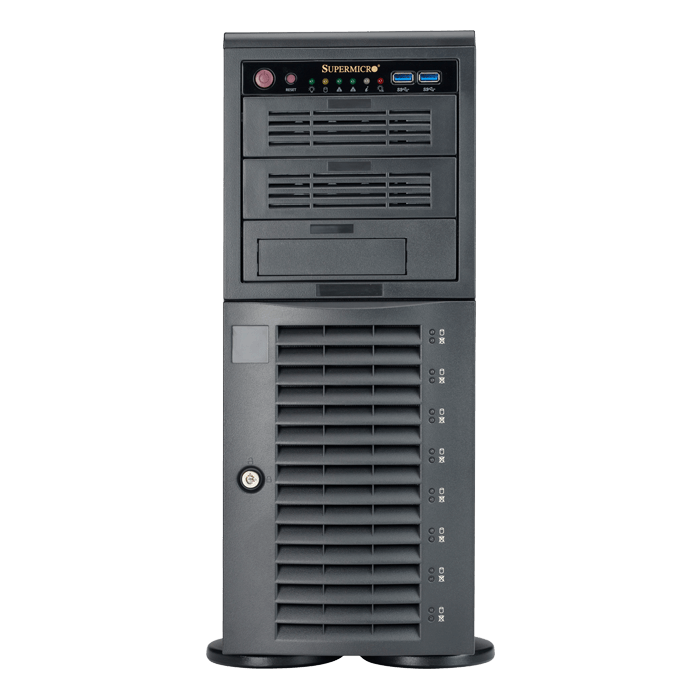

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat / Fan Fail LED
Ports
  • 2 front USB 3.0 Ports
Expansion Slots
PCI-Express
  • 4 PCI-E 3.0 x16 slots
  • 2 PCI-E 3.0 x8 slots (Thunderbolt header for Thunderbolt 3.0 AOC support)
M.2
  • Interface: PCIe 3.0 x4
  • Form Factor: M-Key 2260, 2280, 22110
Drive Bays
Hot-swap
  • 8 Hot-swap 3.5" SAS3/SATA3 drive bays (SATA3 default)
Peripheral Bay(s) [90oRotatable]
  • 3x 5.25" drive bays
Backplane Supports 8 SATA3 or 8 SAS3 HDD
System Cooling
Fans
  • 2 Super quiet PWM chassis fans (support up to 4 fans)
  • 1 Super quiet rear fan with optimal fan speed control
Power Supply 1200W high-efficiency power supply w/ PMBus
AC Input
  • 1000W: 100-114.9 V, 50-60 Hz, 12 Amp
  • 1200W: 114.9-240 V, 50-60 Hz, 12-8 Amp
DC Output
1000W max
1200W max
  • +3.3V / +5V / +12V / -12V / +5VSB
  • 20A / 20A / 83A / 0.3A / 3A
  • 20A / 20A / 99A / 0.3A / 3A
Note:
  • Max. continuous combined load on +3.3V and +5V output shall not exceed 120W.
Certification Platinum Certified

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
Parts List - (Items Included)
  Part Number Qty Description
Motherboard / Chassis MBD-X11DAi-N
CSE-743AC-1200B-SQ		 1
1		 Super X11DAi-N Motherboard
4U Chassis
Backplane BPN-SAS3-743A-N4 1 8-port 4U/Tower (SC743/745) 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane, 4 of 8 ports support NVMe devices
Cable 1 CBL-SAST-0631 2 cross-over mini SAS HD to 4 SATA w/SB, S. 55cm. 30AWG,RoHS/REACH
Parts MCP-260-00115-0N 1 Standard I/O Shield for X11DAi with EMI Gasket
Heatsink / Retention SNK-P0070APS4 2 4U Active CPU Heat Sink Supporting Narrow Bolster Plate Mounting Mechanism for X11 Purley Platform
Power Supply PWS-1K25P-PQ 1 PS2 1200W Multi Output High Efficiency P
FAN 1 FAN-0103L4 1 92x25 4Pin PWM Fan assembly for SC743 Super Quiet rear fan
FAN 2 FAN-0104L4 2 80x25,4 Pin PWM fan assem. for SC743 Super Quiet chassis fan
Optional Parts List
Part Number Qty Description
Cable CBL-SAST-0818 - OCuLink v.91,INT,PCIe NVMe SSD, 55CM
Fan FAN-0104L4 - 80x25,4 Pin PWM fan assem. for SC743 Super Quiet chassis fan
Fan FAN-0074L4 - 80x38MM 4-PIN PWM (MIDDLE) FAN W/HUS FOR SC743
Mounting Rails CSE-PT26L-B - Chassis Mounting Rails (Black)
Hot-swap 3.5" to 2.5" Hard Disk Drive Tray MCP-220-00080-0B - Black hot-swap 3.5" to 2.5" HDD tray
