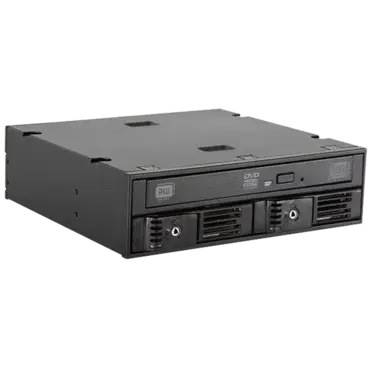

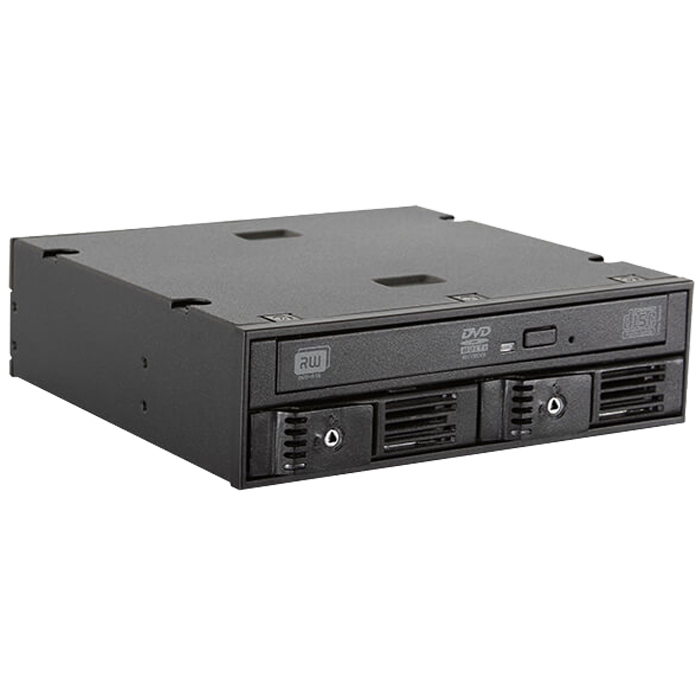

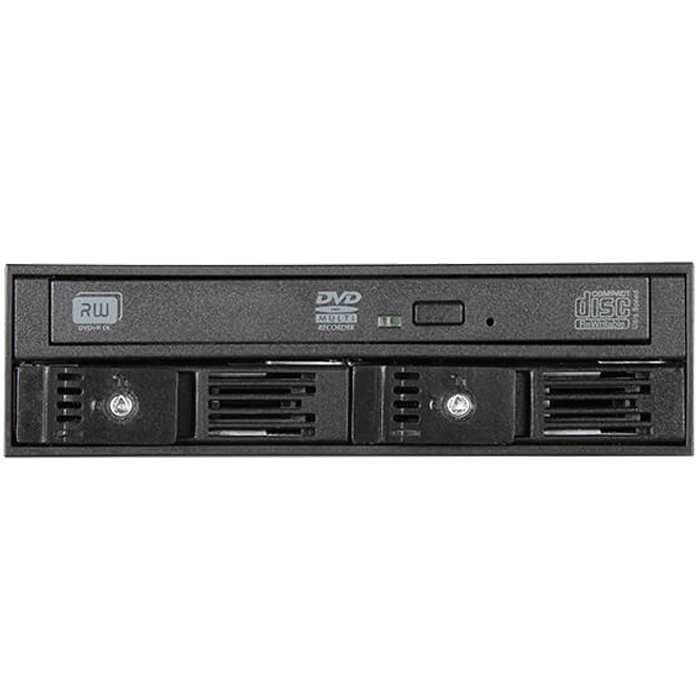

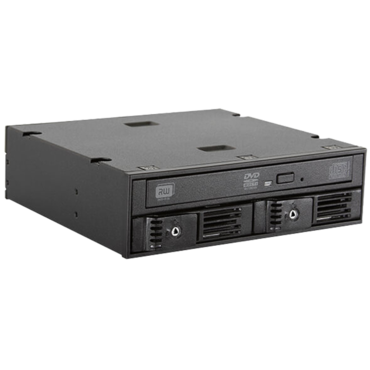

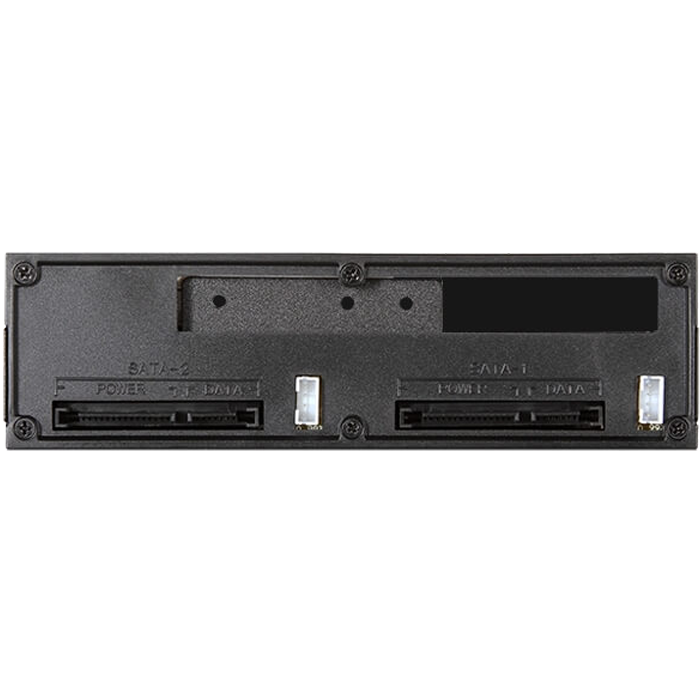

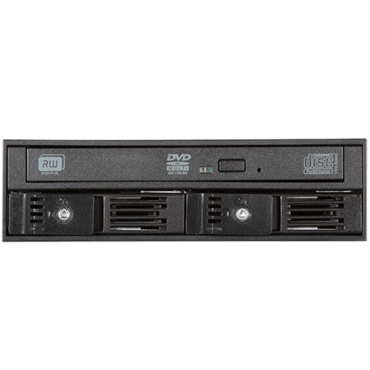

T-5K225T-SA, 1x 5.25" to 2x 2.5", SATA 6Gb/s, ODD/SSD/HDD, Black Hot Swap Module
T-5K225T-SA is a combo drive cage that takes a standard 5.25" drive space to give one slim optical drive bay and 2x 2.5" hotswappable SATA drive bay. This device provides flexibility to fully utilize your system chassis.
- High performance transfer rate up to 6.0 Gb/s
- Two 2.5" hotswappable and trayless drive bays with key lock
- Supports SATA I/II/III 6.0 Gb/s hard drive
- Supports slim optical disc drive
- Constructed with metal body, plastic ABS front panel, and metal latch for heavy use
- Support 2.5" HDD thickness from 7 to 12.5mm
Model Number |
T-5K225T-SA |
RoHS Compliance Version |
Yes |
Standard Drive Bays |
Hotswap 2.5": 2 5.25" Drives: 1 Slim 5.25" Optical: 1 |
Hotswap HDD Type: |
2.5" SATA I/II/III |
Indicators |
HDD Access: blue |
Security |
Key Lock |
Material of Handle |
Plastic with Metal Latch |
Material of Main Chassis |
Stainless & SECC |
Color of Main Chassis |
Black |
Dimensions (WxHxD) |
5.83" x 1.65" x 5.59" 148.1 mm x 41.9 mm x 142.0 mm |
Notes |
- compatible with slim optical drive with SATA interface only. - no optical drive bay cover included |
