T-7M1-SATA Black/Silver SAS/SATA 6 Gb/s Hot Swap Module, 1x 3.5-in HDD, 1x 5.25-in Bay, Aluminum

SKU: 5203900
Manufacturer: ISTARUSA
MPN: T-7M1-SATA-SILVER
Availability: USUALLY SHIPS WITHIN 1-3 WEEKS

Price

$41.17

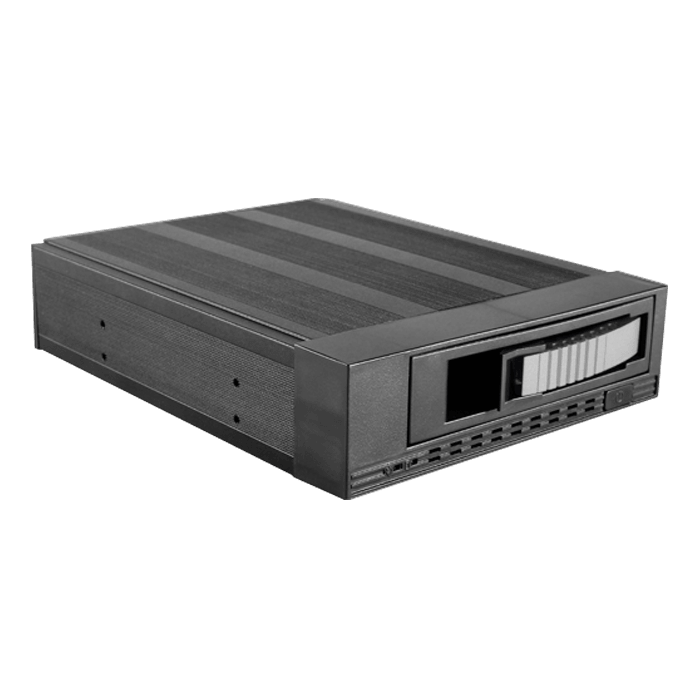

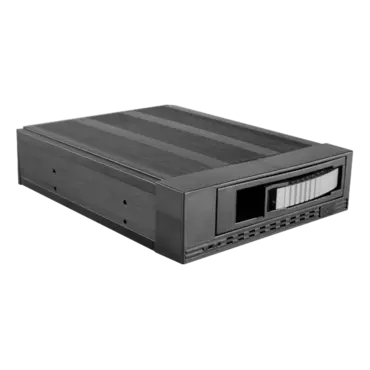

T-7M1-SATA 1x5.25" Bay Audio SATA/SAS 6.0 Gb/s Mobile Rack

Features:

Power/Drive Activity LEDs
Point to Point, Free from Master/Slave Setting
Best Air Ventilation with 1x80mm HDD Blower Fan
Power ON/OFF Button
Aluminum Metal Handle
Cableless Connection, Support Plug & Play, Hot-Swappable
Aluminum Body for Best Cooling
High Performance Transfer Rate up to 6.0 Gb/s
Support SAS I/II & SATA I/II/III HDD

Overview:

Audio type aluminum hot-swappable iStarUSA T-7M1-SATA mobile rack. Unique compact in size, high performance SATA interface. T-7M1-SATA is tough in strength, but flexible in functionality. Additional blower cooling fan provides extra cooling in worst operating condition. LED indicator enables monitor power and hard drive activities. T-7M1-SA audio mobile rack construct with quality and versatility.

Specifications:


Model Number	T-7M1-SATA
RoHS Compliance Version	Yes
Standard Drive Bays	5.25" Drives: 1 Hotswap 3.5: 1
Indicators	Power and HDD activity
Material of Handle	Aluminum
Material of Main Chassis	Aluminum Design
Ordering Information (Part Number)	Black Tray:T-7M1-SATA-BLACK Blue Tray:T-7M1-SATA-BLUE Red Tray:T-7M1-SATA-RED Silver Tray:T-7M1-SATA-SILVER Lockable Tray:T-7M1-SATA-BPL
Dimensions (WxHxD)	5.75" x 1.65" x 7.32" 146.1 mm x 41.9 mm x 185.9 mm
