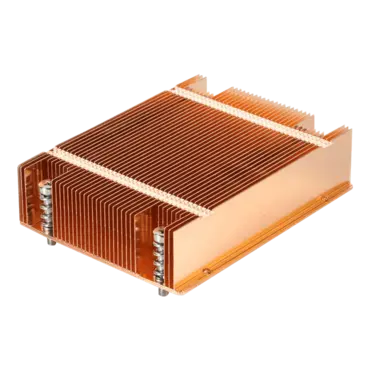

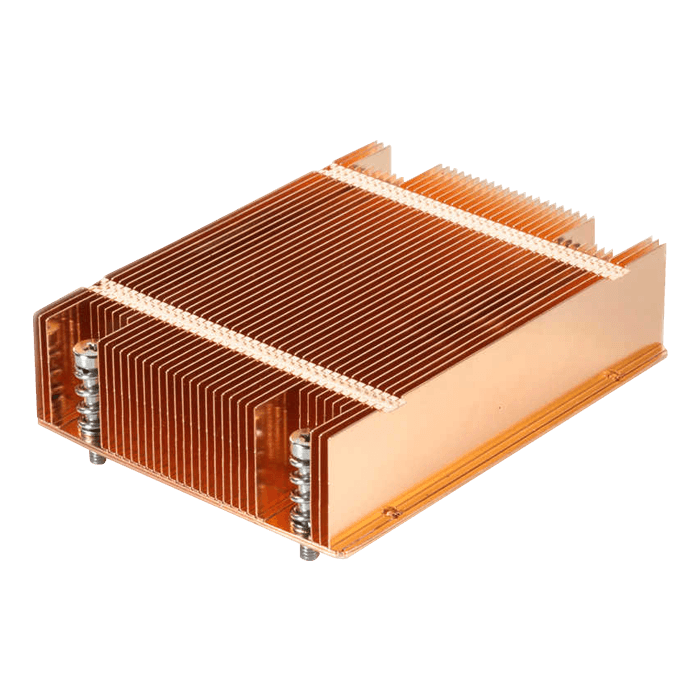

T318 Socket LGA2011 Passive Heatsink for 1U Server Chassis, 135W TDP, Copper

SKU: 7505526

Manufacturer: DYNATRON

MPN: T318

Availability: Low Stock


Price: $28.75
or as low as $1/month
Quantity:

T318 Socket LGA2011 Passive Heatsink for 1U Server Chassis, 135W TDP, Copper

Features:

  • Vapor Chamber
  • Copper Base
  • Screw Type
  • RoHS

Specifications:

CPU Socket 2011 (Narrow Type, 56 x 94mm mounting pitch)
CPU Support Intel® Sandy Bridge EP/EX Processors E5-1600 / E5-2600 / E5-4600 (for Narrow ILM Mounting Only) up to TDP 135 Watts
Solution 1U and Up Solution
Overall Dimension 106.0 x 82.0 x 27.0 mm
Weight 435g
Material Vapor Chamber Base with Copper Stacked Fin
Fan Dimension
Speed
Bearing
Rated Voltage
Power
Air Flow
Noise Level
Air Pressure
Lead Wire Pin Out
Note
