TC-1U30FX8, 80 PLUS Standard 300W, Single, FlexATX Power Supply
Quantity:
- SKU: 4718706
- Manufacturer: ISTARUSA
- MPN: TC-1U30FX8
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$87.40

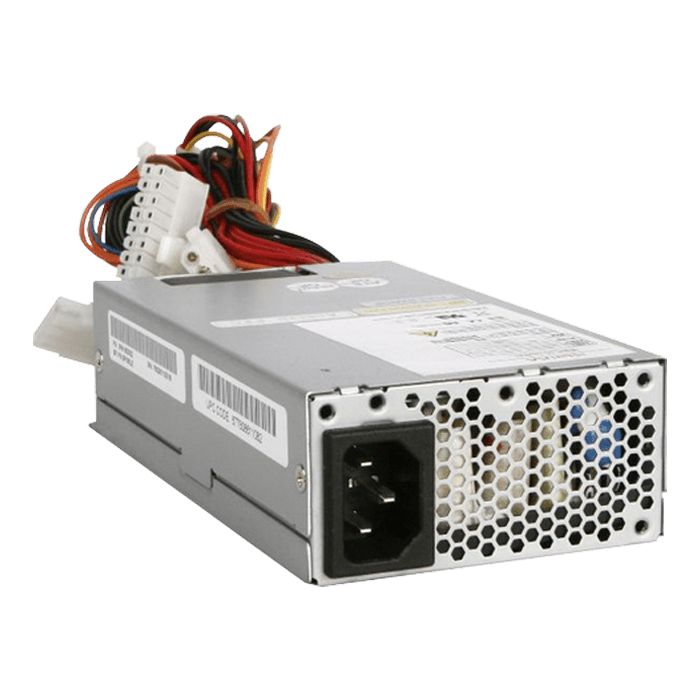

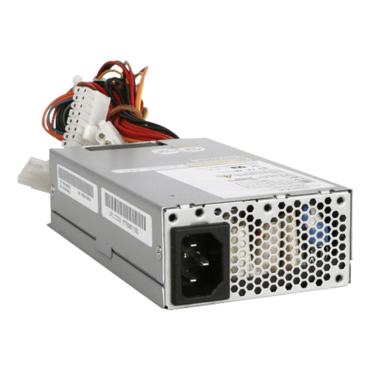

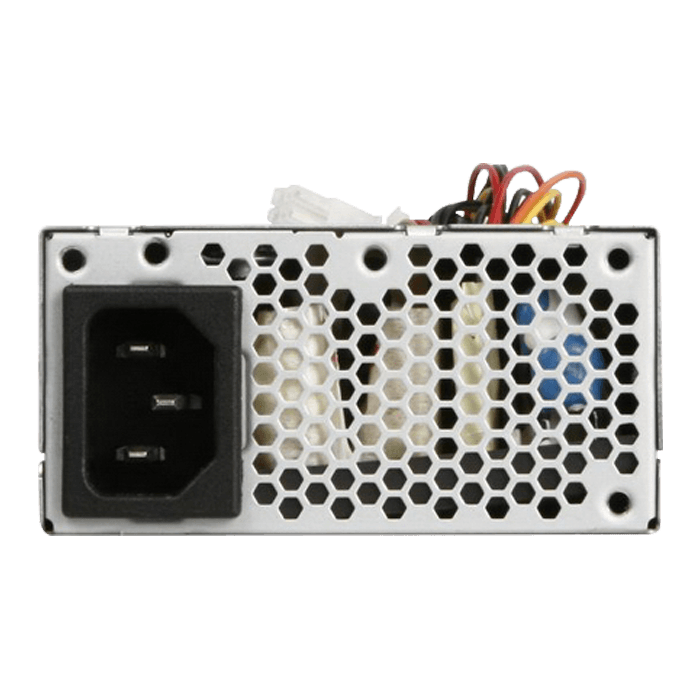

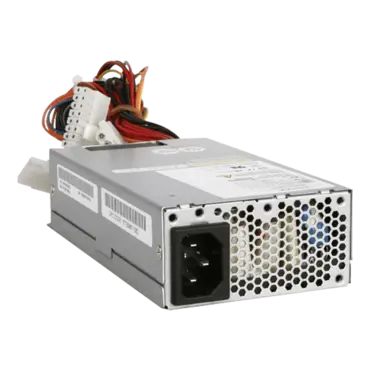

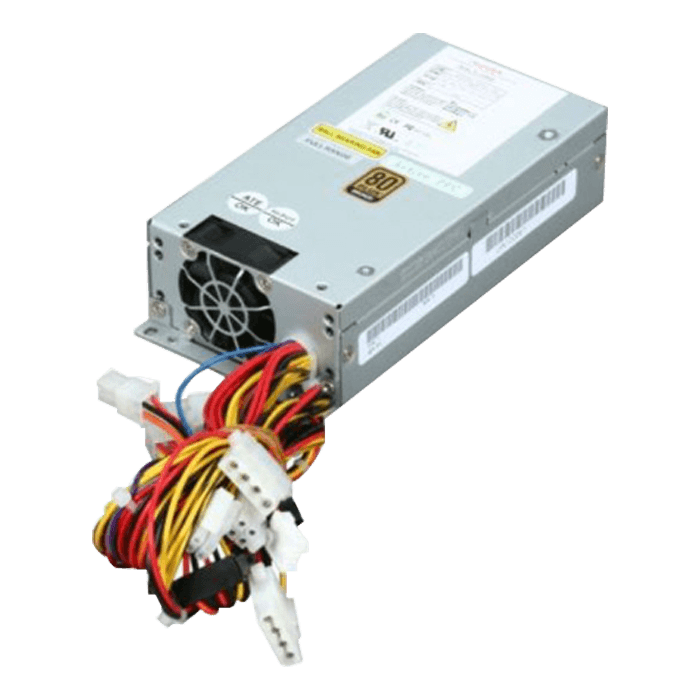

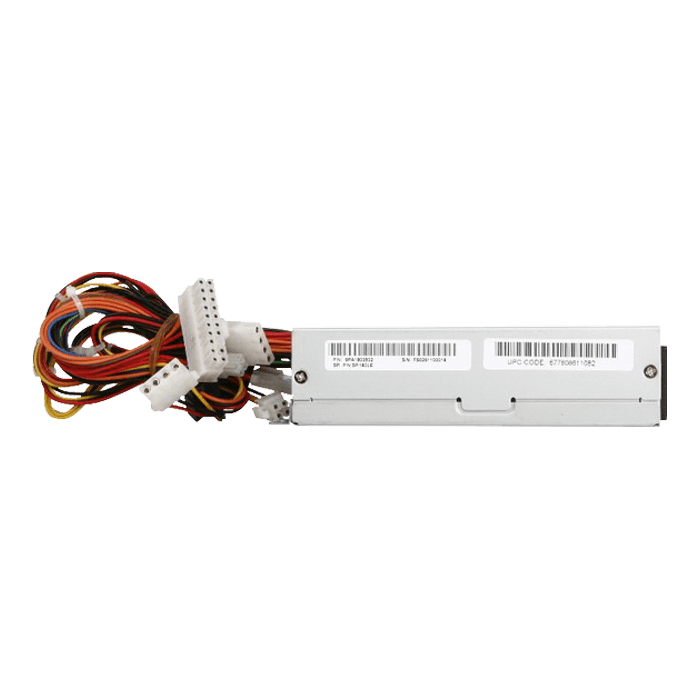

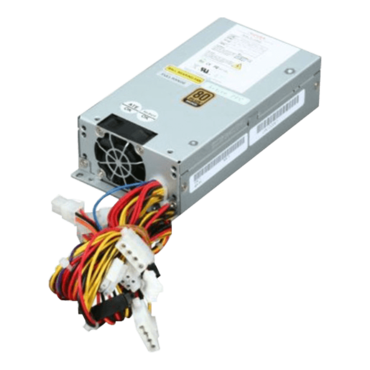

TC-1U30FX8, 80 PLUS Standard 300W, Single, FlexATX Power Supply
TC-1U30FX8 1U 300W Flex ATX power supply is designed to fit perfectly into your 1U rackmount chassis. Feature such as low noise, triple circuit protections, and active PFC. TC-1U30FX8 is the compact and versatile 1U power supply.
TC-1U30FX8 1U 300W Flex ATX power supply is designed to fit perfectly into your 1U rackmount chassis. Feature such as low noise, triple circuit protections, and active PFC. TC-1U30FX8 is the compact and versatile 1U power supply.
TC-1U30FX8 1U 300W Flex High Efficiency Power Supply
- Complied with Flex ATX and ATX12V Standard
- High Efficiency 80% minimum
- Active Power Factor Correction (PFC) Meet EN61000-3-2
- Compatible with European Union Directive 2011/65/EU (RoHS2)
- Thermal Fan Speed Control Function
- Low Noise and Ripple
- Output Over Voltage, Short Circuit, and Over Current Protection
- 100% Hi-pot, ATE, and Burn-in Tested
| Model Number | TC-1U30FX8 |
| RoHS Compliance | Yes |
| Output Wattage | 300 |
| Efficiency | 80% |
| Connector Type | Main Connector :: 20+4 pin
4+4pin 12V :: 1 Molex :: 3 SATA :: 2 Floppy :: 1 |
| Dimensions (WxHxD) | 3.20" x 1.60" x 5.90"
81.3 mm x 40.6 mm x 149.9 mm |
