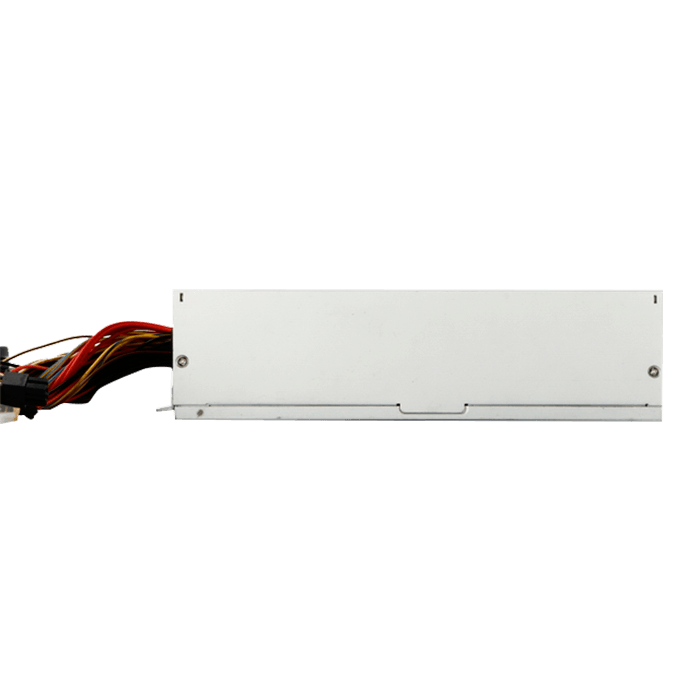

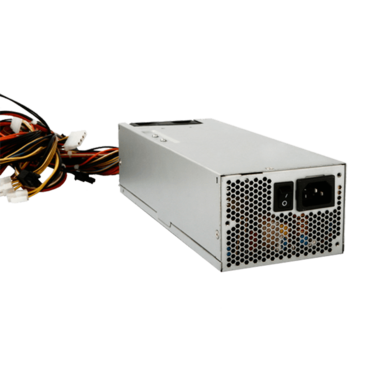

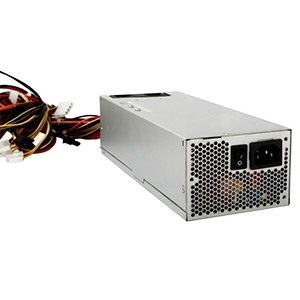

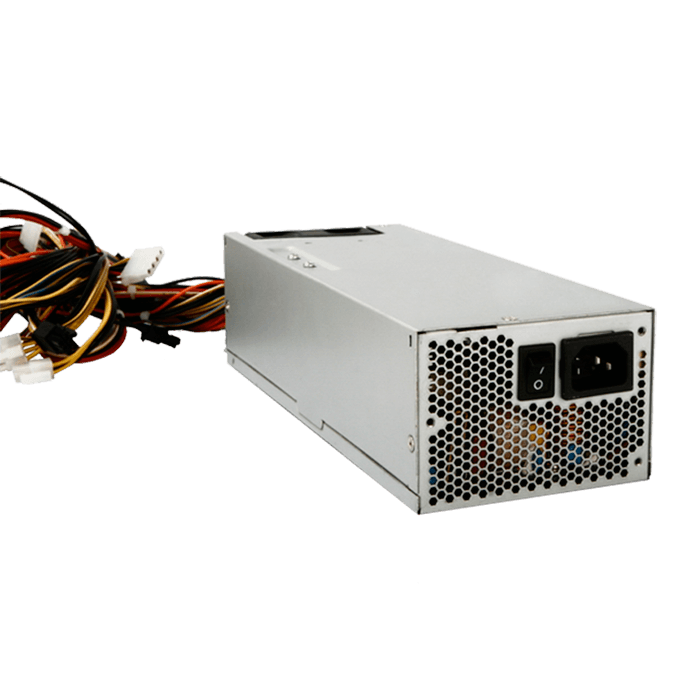

TC-2U70PD8, 700W, 2U, High Efficiency Switching, Power Supply

SKU: 6349557

Manufacturer: ISTARUSA

MPN: TC-2U70PD8

Availability: Available


Price: $167.88
or as low as $5/month
Quantity:

XEAL 2U power supply series provide high performance in compact form factor. The TC-2U70PD8 supports server, compact PC, and space constrained application. Standard feature includes high efficiency, triple circuits protection, and EPS 2U for industrial and high performance system requirement.

  • High Efficiency 82% minimum
  • Universal Power Input
  • Over Current Protection
  • Over Voltage Protectio
  • Over Power Protection
  • Short Circuit Protection
Model Number TC-2U70PD8
RoHS Compliance Version Yes
Output Wattage 700
Efficiency 82%
Connector Type Main Connector :: 20+4 pin
4+4pin 12V :: 1
8pin EPS 12V :: 1
6+2 Pin PCIE :: 2
Molex :: 5
SATA :: 4
Floppy :: 1
Dimensions (WxHxD) 3.94" x 2.76" x 10.24"
100.1 mm x 70.1 mm x 260.1 mm
