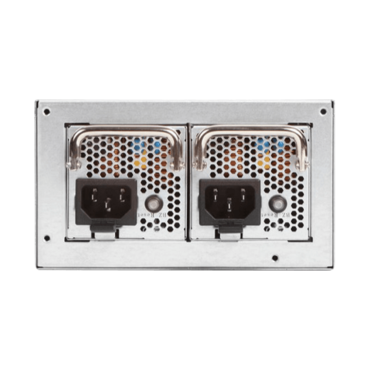

TC-500R8PD2 500W PS2 Mini High Efficiency Redundant Power Supply

  • SKU: 11159162
  • Manufacturer: ISTARUSA
  • MPN: TC-500R8PD2
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
TC-500R8PD2 500W PS2 Mini High Efficiency Redundant Power Supply

XEAL dual AC input 500W Redundant Power Supply TC-500R8PD2. It offers your server and workstation zero down time with full 500W power redundancy. Active PFC, temperature control fan, hot swappable power modules and load sharing function provide ultimate precision power and safety protection for all electronic equipment. A good start for your mission critical system integration.

  • Universal Input, Active PFC
  • Efficiency: 88% at full load
  • OPP (Over Power Protection)
  • OVP (Over Voltage Protection)
  • OCP (Over Current Protection)
  • SCP (Short Circuit Protection)
  • MTBF > 100,000 Hours
  • PMBus 1.2 for Digital Power Management
  • Fit into tower server without extra brackets
Model Number TC-500R8PD2
RoHS Compliance Version Yes
Output Wattage 500
Efficiency 88%
Connector Type Main Connector :: 24 pin
8pin EPS 12V :: 2
Molex :: 2
SATA :: 4
Floppy :: 1
Dimensions (WxHxD) 5.91" x 3.39" x 7.48"
150.1 mm x 86.1 mm x 190.0 mm
