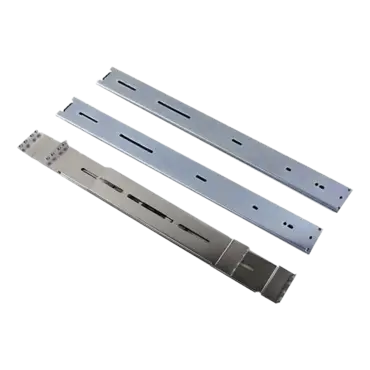

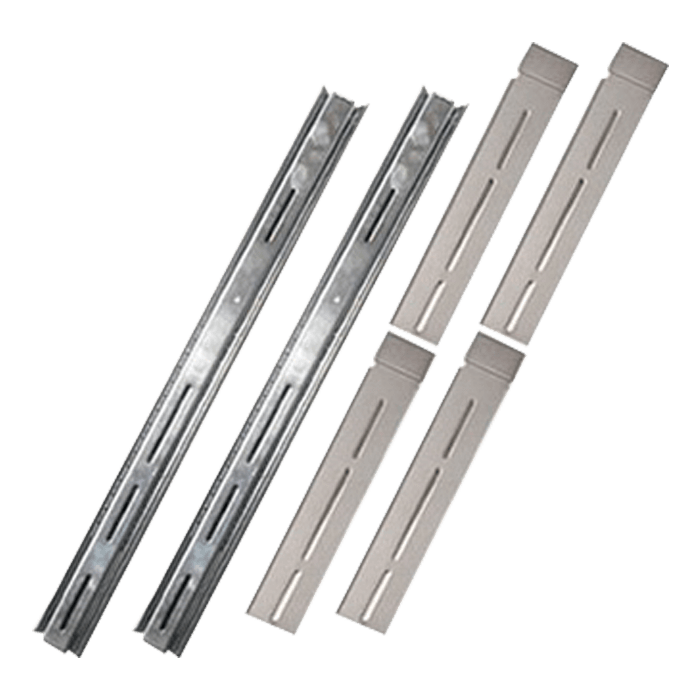

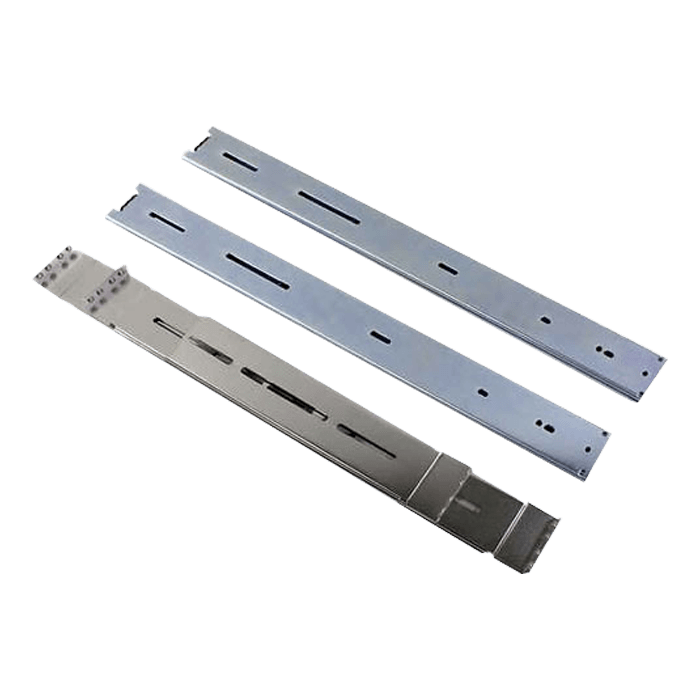

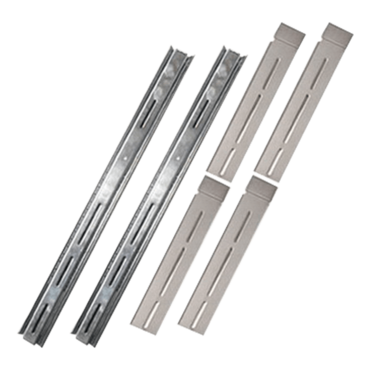

TC-RAIL-20, 20" Sliding Rail Kit for Most Rackmount Chassis

SKU: 1701936

Manufacturer: ISTARUSA

MPN: TC-RAIL-20

Availability: Available


Price: $33.34
or as low as $1/month
Quantity:

The TC-Rail-20 is a ball bearing sliding rails built from SECC steel. The rail is built to last and can hold system weight up to 85 lbs. Increase your accessibility to your rackmount server with this easy to install rackmount sliding rails.

  • Solid Ball Bearing Sliding Rails
  • Three Stages Temporary Lockable
  • Adjustable Length
  • Load Rating Up to 85 lbs
Model Number TC-RAIL-20
RoHS Compliance Yes
Standard Drive Bays None
Material of Main Chassis 1.2mm SECC Steel
Supported Chassis Depth up to 23"
Supported Cabinet Depth 22.3" to 31" (front mounting posts to rear posts)
Notes - HTS code: 8473.30.0002
