TC-RAIL-26 26" Sliding Rail Kit for Most Rackmount Chassis

Quantity:
  • SKU: 2138732
  • Manufacturer: ISTARUSA
  • MPN: TC-RAIL-26
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$47.15
Quantity:

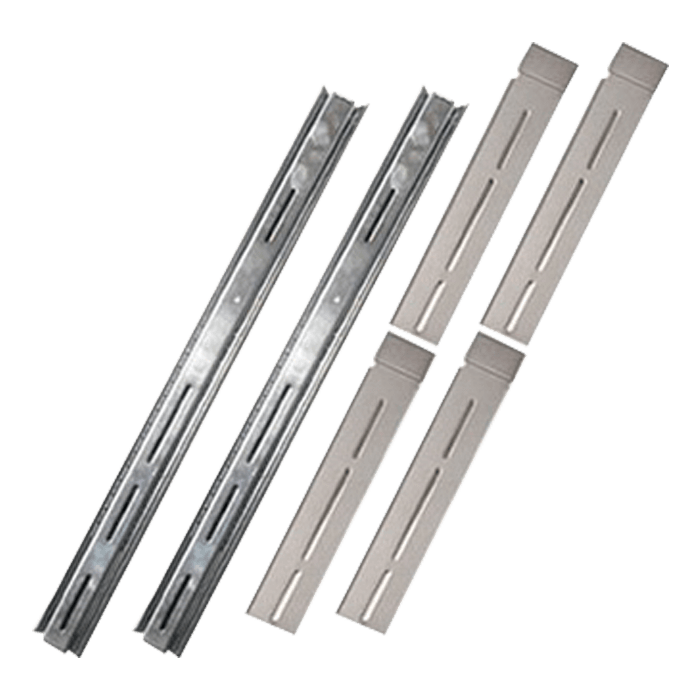

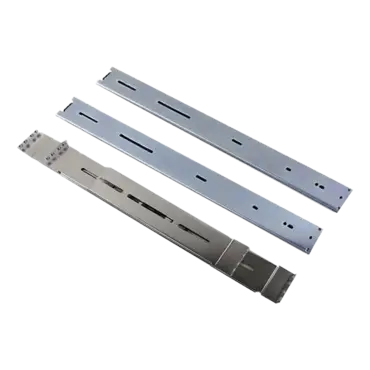

TC-RAIL-26 26" Sliding Rail Kit for Most Rackmount Chassis

The TC-Rail-26 is a ball bearing sliding rails built from SECC steel. The rail is built to last and can hold system weight up to 85 lbs. Increase your accessibility to your rackmount server with this easy to install rackmount sliding rails.

  • Solid Ball Bearing Sliding Rails
  • Three Stages Temporary Lockable
  • Adjustable Length
  • Load Rating Up to 85 lbs
  • Supported Chassis: up to 29" deep
  • Supported Cabinet: 28.4" to 39" deep
Model Number TC-RAIL-26
RoHS Compliance Yes
Standard Drive Bays None
Material of Main Chassis 1.2mm SECC Steel
Supported Chassis Depth up to 29"
Supported Cabinet Depth 28.4" to 39" (front mounting posts to rear posts)
Notes - HTS code: 8473.30.0002
