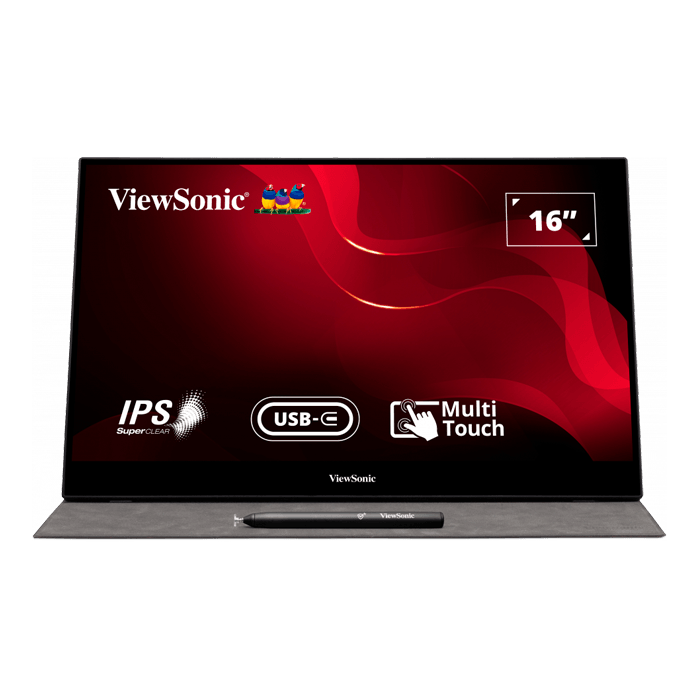

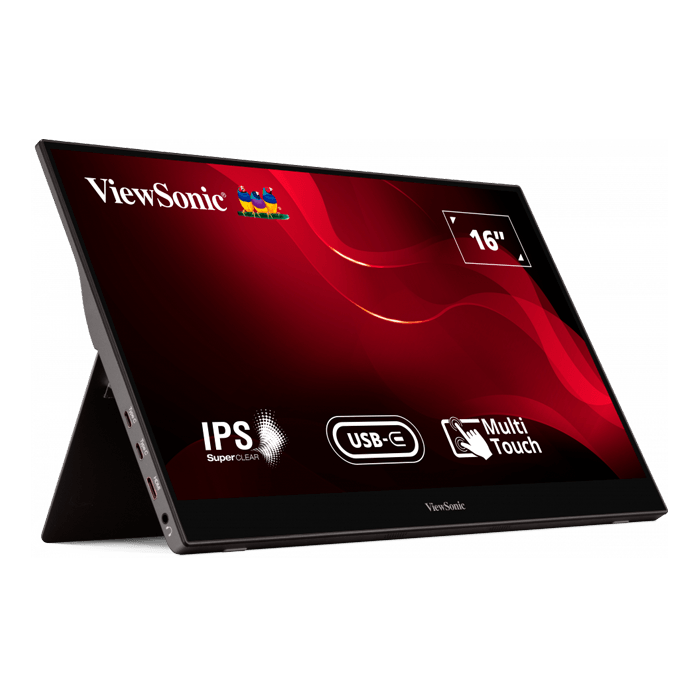

The ViewSonic® TD1655 is a portable 15.6” touch display designed for productivity on the go. Built for business travelers, remote workers, and digital nomads, the TD1655 can serve as a complementary touchscreen to a laptop or tablet for boosted productivity. With an anti-glare screen and Full HD 1080p resolution, this touch display delivers a crystal-clear viewing experience so users can see more and do more for a more efficient workflow. In addition, with a 10-point projective capacitive touchscreen and included stylus pen, the TD1655 delivers a smooth and natural writing experience and streamlined navigation with every tap, pinch, and swipe. A USB Type-C port enables quick and easy transmission of video, and audio. A second USB Type-C port also delivers up to 60W of two-way power: a connected laptop can power the TD1655, OR the TD1655 can power a connected laptop via a USB-C power bank or AC adapter and outlet. Measuring less than an inch thick and weighing only two pounds, the ultra-slim TD1655 perfectly fits into any bag, briefcase, or backpack so you can work wherever life takes you.
- Full-HD 1920 x 1080 Resolution
- Ultra-Portable Design
- Advanced Touch Capabilities and Screen Performance
- 2-Way Power with USB Type-C
- Frameless Design
| DISPLAY | |
| DISPLAY SIZE (IN.) | 15.6 |
| VIEWABLE AREA (IN.) | 15.6 |
| PANEL TYPE | IPS |
| RESOLUTION | 1920 x 1080 |
| RESOLUTION TYPE | Full HD (1920x1080) |
| STATIC CONTRAST RATIO | 800:1 |
| DYNAMIC CONTRAST RATIO | 50,000,000:1 |
| LIGHT SOURCE | LED |
| BRIGHTNESS | 250 cd/m2 |
| COLORS | 262K |
| COLOR SPACE SUPPORT | 6 bit |
| ASPECT RATIO | 16:9 |
| RESPONSE TIME (TYPICAL GTG) | 14ms |
| RESPONSE TIME (GTG W/OD) | 6.5ms |
| VIEWING ANGLES | 178º horizontal, 178º vertical |
| BACKLIGHT LIFE (HOURS) | 15,000 |
| PANEL SURFACE | Glossy, Hardness (6H) |
| COMPATIBILITY | |
| PC RESOLUTION (MAX) | 1920 X 1080 |
| MAC® RESOLUTION (MAX) | 1920 X 1080 |
| CONNECTOR | |
| USB TYPE C | 2 |
| MINI HDMI | 1 |
| TOUCH | |
| TOUCH TECHNOLOGY | Projective Capacitive |
| TOUCH POINTS | 10-Point Touch |
| AUDIO | |
| INTERNAL SPEAKERS | 0.8W (x2) |
| POWER | |
| ECO MODE (CONSERVE) | 6.0W |
| ECO MODE (OPTIMIZED) | 6.9W |
| CONSUMPTION (TYPICAL) | 8.6W |
| CONSUMPTION (MAX) | 10.5W |
| VOLTAGE | AC 100-240V (universal), 50-60Hz |
| STAND-BY | 0.3W |
| POWER SUPPLY | Wall type (detachable type-C) |
| CONTROLS | |
| PHYSICAL CONTROLS | 1, 2, 3, 4, 5 (Power) |
| ON SCREEN DISPLAY | Image Adjust, Contrast, Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall |
| OPERATING CONDITIONS | |
| TEMPERATURE | 32-104º F (0 - 40º C) |
| HUMIDITY (NON-CONDENSING) | 20-90% |
| VIDEO SIGNAL | |
| FREQUENCY HORIZONTAL | 15 ~ 82KHz |
| FREQUENCY VERTICAL | 50 ~ 75Hz |
| VIDEO INPUT | |
| DIGITAL SYNC | TMDS for miniHDMI (v1.4), Micro-Packet for USB-type C |
| ERGONOMICS | |
| TILT (FORWARD/BACK) | 0º / 60º |
| WEIGHT (IMPERIAL) | |
| NET (LBS) | 2.1 |
| NET WITHOUT STAND (LBS) | 2.1 |
| GROSS (LBS) | 5.1 |
| WEIGHT (METRIC) | |
| NET (KG) | 1.0 |
| NET WITHOUT STAND (KG) | 1.0 |
| GROSS (KG) | 2.3 |
| DIMENSIONS (IMPERIAL) (WXHXD) | |
| PACKAGING (IN.) | 17.3 x 11.3 x 3.5 |
| PHYSICAL (IN.) | 14.0 x 8.8 x 0.6 |
| PHYSICAL WITHOUT STAND (IN.) | 14.0 x 8.8 x 0.6 |
| DIMENSIONS (METRIC) (WXHXD) | |
| PACKAGING (MM) | 440.0 x 288.0 x 89.0 |
| PHYSICAL (MM) | 355.0 x 223.0 x 16.0 |
| PHYSICAL WITHOUT STAND (MM) | 355.0 x 223.0 x 16.0 |
| GENERAL | |
| REGULATIONS | cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT, CEC, MX-CoC, Mexico Energy |
| PACKAGE CONTENTS | TD1655 Display, USB type-C to type-C cable, USB type-C to type-A cable, mini HDMI cable, Power Adapter, Passive Touch Pen, Quick Start Guide |
| RECYCLE/DISPOSAL | Please dispose of in accordance with local, state or federal laws. |
| WARRANTY | Three-year limited warranty on parts, labor and backlight |
| DIMENSIONS | 14.0 x 8.8 x 0.6 in / 355.0 x 223.0 x 16.0 mm |
