| Motherboard Support |
ATX |
| Drive Bays - 5.25" ODD |
0 |
| I/O Panel |
2x USB 3.2 Gen 1 (USB 3.0) |
| Dust Filters |
Bottom |
| Warranty |
2 years (Case) |
| Pre-installed Fan(s) - Front |
3 x 120mm (AIO Mobius120P ARGB fan) |
| Pre-installed Fan(s) - Top |
N/A |
| Fan Support - Front |
3 x 120mm / 2 x 140mm |
| Pre-installed Radiator |
ML360 Atmos MAX ver. |
| Pre-installed Power Supply Unit |
GX II Gold 850W ATX3.0 MAX ver. , *1x extra PCI-e 6+2 Pin cable could be requested for free from local Customer Service |
| Fan Support - Rear |
1 x 120mm |
| Radiator Support - Front |
360mm / 240mm |
| Radiator Support - Rear |
120mm |
| Size |
ATX |

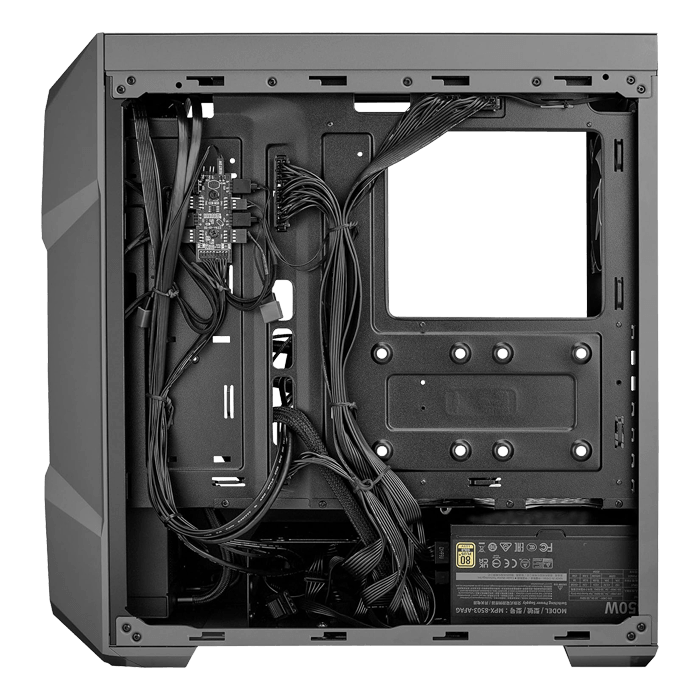

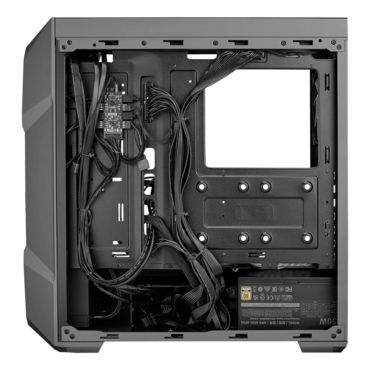

| Cable Routing - Behind MB Tray |
19mm |
| Radiator Support - Top |
360mm / 240mm |
| Pre-installed Fan(s) - Rear |
1 x CF120 ARGB fan |
| Fan Support - Top |
3 x 120mm / 2 x 140mm |
| Expansion Slots |
7 |
| Drive Bays - 3.5" HDD |
2 |
| Drive Bays - 2.5" SSD |
3 |
| Included Accessories |
ARGB Hub |
| Clearances - CPU Cooler |
165mm |
| Clearances - Power Supply |
200mm (Pre-installed PSU Length 160mm) |
| Warranty |
10 years (Power Delivery) |
| Materials - Left Side Panel |
Tempered Glass |
| Volume |
48L |
| Motherboard Support |
Micro-ATX |
| I/O Panel |
1x USB 3.2 Gen2 x 2 Type C |
| Exterior Color |
Gun metal |
| Materials - Exterior |
Steel |
| Warranty |
5 years (Thermal Solution) |
| Materials - Exterior |
Plastic |
| I/O Panel |
1x Audio Combo (Audio In / Out 3.5mm) |
| Product Number |
TD500V2-MGNN85-SL0 / TD500V2-MGNN85-SL1 |
| Motherboard Support |
ATX |
| Dust Filters |
Top |
| Dimensions (L x W x H) |
499 x 210 x 500mm (incl. Protrusions) |
| Materials - Exterior |
Tempered Glass |
| Clearances - Graphics Card |
380mm (with pre-installed AIO on front) |
| Dimensions (L x W x H) |
482 x 210 x 477mm (excl. Protrusions) |
