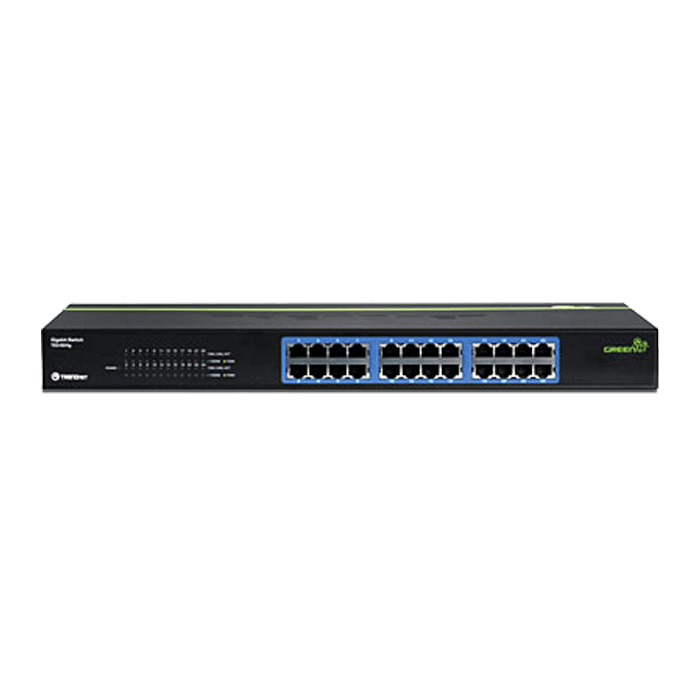

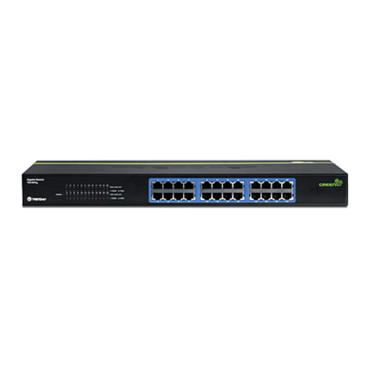

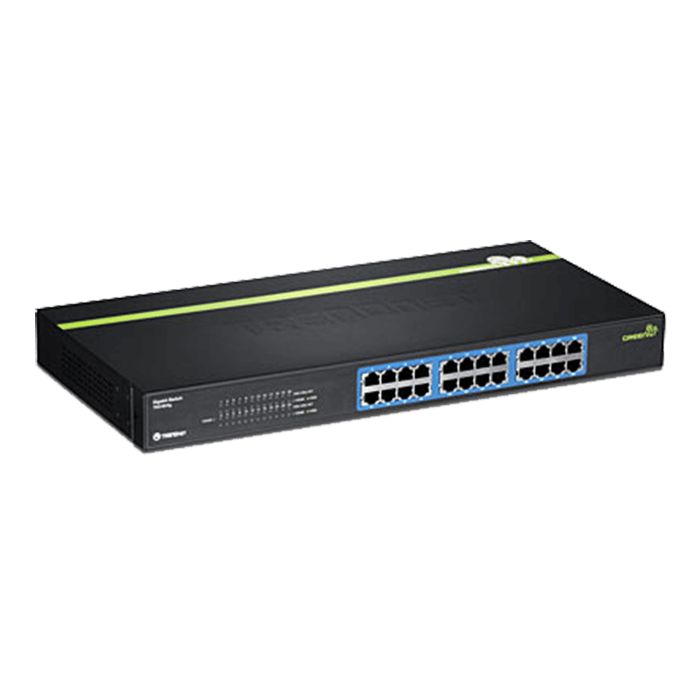

TEG-S24G, 24 x RJ45, 10/100/1000Mbps, Ethernet Switch Retail

Quantity:
  • SKU: 5024888
  • Manufacturer: TRENDNET
  • MPN: TEG-S24G
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$136.13
Quantity:
TEG-S24G, 24 x RJ45, 10/100/1000Mbps, Ethernet Switch Retail

The 24-Port Gigabit GREENnet Switch, model TEG-S24g, provides high bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 70%*. GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.
Boost office network efficiency and eliminate network congestion with Gigabit speeds and a total switching capacity of 48Gbps with Full-Duplex mode. A built in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.

  • GREENnet technology reduces power consumption by up to 70%*
  • 24 x Gigabit Auto-MDIX RJ-45 ports
  • Sturdy metal rackmount switch with built in power supply
  • 48Gbps forwarding capacity
  • Limited Lifetime Warranty*
Brand TRENDnet
Model TEG-S24G
Format Rackmount
Standards IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T; IEEE 802.3x Flow Control
Network Management Type Unmanaged
Uplink Ports None
Primary Ports 24 x RJ45
Primary Port Speed 10/100/1000Mbps
MAC Address Table 8K
Switching Method Store and Forward
Jumbo Frames Up to 9216Bytes
Buffer Memory 3.5MBits
Protocols CSMA/CD, Star
PoE No
Stackable No
QoS No
Layer Layer 2 Only
Cabling Ethernet: Cat. 5 up to 100 m
Fast Ethernet: Cat. 5 and 5e up to 100 m
Gigabit Ethernet: Cat. 5e and 6 up to 100 m
LEDs Power, Link/ACT, 100Mbps, 1000Mbps
Button On / off power button
Power 100~240VAC, 50/60Hz Internal universal switching power
Features GREENnet technology reduces power consumption by up to 70%

Switch Fabric: 48Gbps

Back pressure Flow Control for half-duplex mode

Operates and maximizes packet filtering and forwarding rate

Diagnostic LEDs and Plug & Play support

Sturdy metal housing
Weight 7.24
Temperature 0ºC to 40ºC (32ºF to 104ºF)
Humidity 90% Maximum, Non-condensing
Package Contents TEG-S24g
Multi-Language Quick Installation Guide
Power cord (1.8 m / 6 ft.)
Rackmount hardware
Model TEG-S24G
Electrical Outlet Plug Type Plug Type “A” (USA, Canada, Mexico, Japan)
