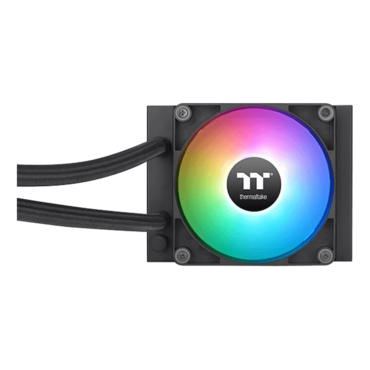

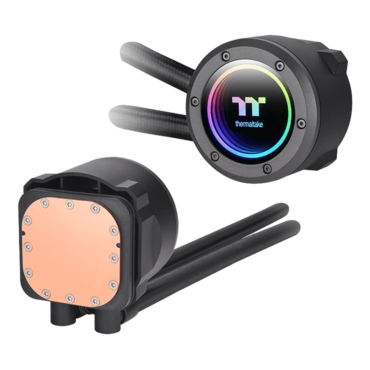

TH120 V2 ARGB, 120mm Radiator, Liquid Cooling System
From the all-new TH V2 ARGB Series, the TH120 V2 ARGB has a new industrial cap with an infinity mirror light design, bringing a new vibe to the TH series. Adding Infinity Mirror Lighting to this series can bring more diverse visual effects to the build and gives more depth than it looks. Equipped with one CT120 ARGB fan, you can match it up with some of our chassis pre-installed fans and unify your fans with your build! TH120 V2 ARGB has a 27mm slim radiator with a thickened 20mm copper chamber, guaranteeing excellent cooling performance. It is suitable for small chassis that can fit 120mm AIOs and for those who seek to control AIO lighting effects through 5V motherboard-controlled software.
From the all-new TH V2 ARGB Series, the TH120 V2 ARGB has a new industrial cap with an infinity mirror light design, bringing a new vibe to the TH series. Adding Infinity Mirror Lighting to this series can bring more diverse visual effects to the build and gives more depth than it looks. Equipped with one CT120 ARGB fan, you can match it up with some of our chassis pre-installed fans and unify your fans with your build! TH120 V2 ARGB has a 27mm slim radiator with a thickened 20mm copper chamber, guaranteeing excellent cooling performance. It is suitable for small chassis that can fit 120mm AIOs and for those who seek to control AIO lighting effects through 5V motherboard-controlled software.
P/N | CL-W360-PL12SW-A |
PUMP |
Speed : PWM 1500~3300 R.P.M Rated Voltage : 12 V & 5V Rated Current : 0.43 A & 0.32 A Power Input : 5.16 W & 1.6 W Connector : 2510–4 Pin / 5V ARGB header–3 Pin |
WATER BLOCK | Material : Copper |
FAN |
Dimension : 120 x 120 x 25 mm Speed : PWM 500~2000 R.P.M Noise Level : 25.8 dB-A Rated Voltage : 12 V & 5V Rated Current : 0.11 A & 0.31 A (one fan) Power Input : 1.32 W & 1.55 W (one fan) Max. Air Flow : 57.05 CFM Max. Static Pressure : 2.23 mm-H2O Connector : 2510 - 4 Pin PWM , 5V ARGB header - 3 Pin Bearing Type : Hydraulic Bearing Life expectation : 40,000 hrs,25 °C |
TUBE |
Lengtd : 460 mm Material : Rubber |

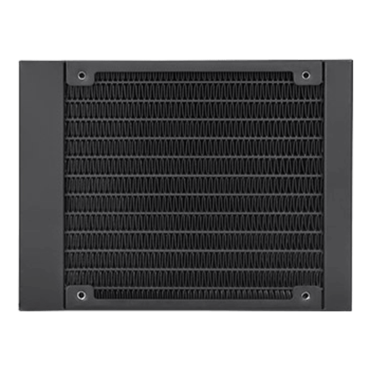

RADIATOR |
Dimension : 157 x 120 x 27 mm Material : Aluminum |
COMPATIBILITY |
Intel: LGA 1700/1200/1156/1155/1151/1150 AMD: AM5/AM4/AM3+/AM3/AM2+/AM2 |
