THICC FP12 3 x 120mm, w/ Controller, 3000 RPM, 105.8 CFM, 47.3 dBA, Cooling Fans
- SKU: 18285433
- Manufacturer: HYTE
- MPN: FAN-HYTE-FP12-BW-3NP
- Availability: TEMPORARILY OUT OF STOCK
Price
$117.10
-
32mm THICC
120x120x32mm design excels as both a case and radiator fan with the best performance-to-noise ratio on the market -
Fiberglass Reinforced Liquid Crystal Polymer
LCP supercharges fan blades with exceptional rigidity, durability, and aerodynamics -
Dynamically Adjustable 0 - 3,000 RPM Fan Speed
Delivers a monstrous 105.8 CFM airflow and 8.14 mm-H2O static pressure -
Zero RPM Fan Mode
Completely stops the blades from spinning for silent operation under light workloads -
Nexus Link Secondary Node
Connects sequentially via Nexus Link Type-M, along with legacy 4-pin PWM support for wide compatibility
| Fan Dimensions | 120 x 120 x 32 mm |
| Fan Speed | 0 – 3,000 RPM |
| Current |
0.1A/12V @1000 RPM, 0.2A/12V @2000 RPM, 0.8A/12V @3000 RPM |
| Air Flow | 105.8 CFM |
| Static Pressure | 8.14 mm-H2O |
| Noise Level | <10.0* - 47.3 dBA - *Measuring below 10 dBA was not possible in our test chamber due to the noise floor |
| Fan Blade Material | Fiberglass Reinforced Liquid Crystal Polymer (LCP) |
| Fan Connector | Nexus Link Type-M |
| Additional Sensors | Thermal + Positioning |
| Included Accessories | 12x Case Fan Screws, 12x Radiator Fan Screws, 2x Nexus Link Type-M to Type-M Cables (300 mm), 1x Nexus Link Type-C to Type-M Cable (600 mm), 1x Nexus Link Type-M to Type-C Cable (600 mm), 1x Nexus Link Type-C to 4-Pin PWM Cable |
| Software Support | HYTE Nexus |
| Warranty | 6 Years |
| Sku |
FAN-HYTE-FP12-BW-3, FAN-HYTE-FP12-BW-3NP |

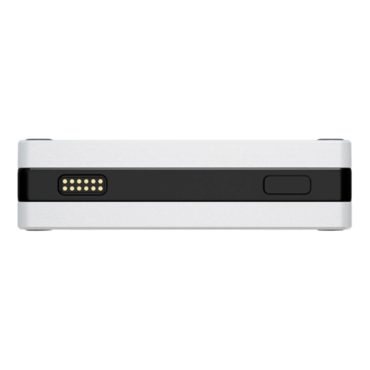

| Connection Channels | 3x Nexus Link Type-C, 1x 4-Pin PWM |
| Maximum Devices – Single Channel | 18 |
| Maximum Devices – All Channels | 54 |
| Maximum Current – Single Channel | 8A/12V |
| Maximum Current – All Channels | 15A/12V |
| Maximum PSU Power Draw | Up to 180W depending on the number of connected Nexus Link devices |
| ARGB LEDs | 6 qRGB Pixels (Also Function As Status Indicators) |
| Input Connections | USB 2.0 Header, 6-Pin PCIe Power |
| Software Support | HYTE Nexus |
| Warranty | 3 Years |
