- Transforms any internet connection into a private AC750 dual-band Wi-Fi network*

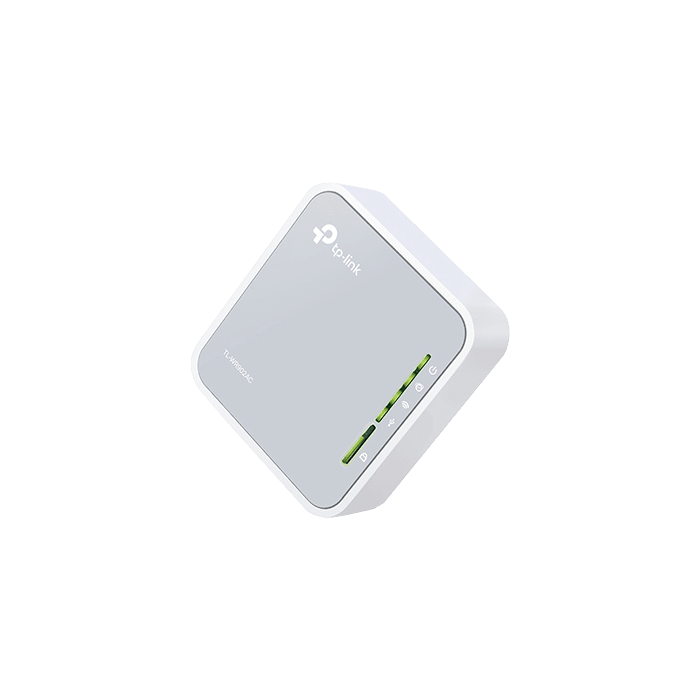

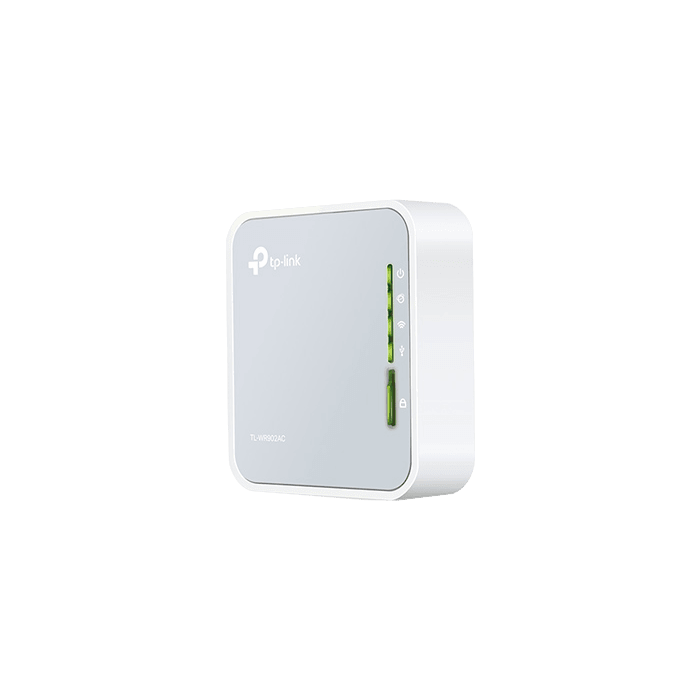

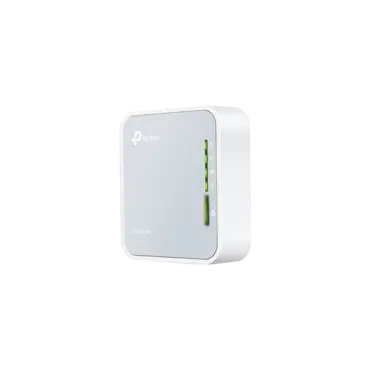

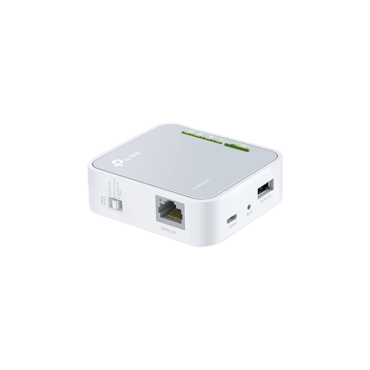

- Incredibly compact router fits easily in your pocket, purse or bag, perfect for traveling
- Works with 2.4 GHz and 5 GHz devices, including Chromecast and Amazon Fire TV Stick
- USB port lets you share files or conveniently charge any device with up to 5V/1A of power
- Flexible powering options let you connect to an external adapter or USB port
WIRELESS | |
Standards |
Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
WiFi Speeds |
AC750 5 GHz: 433 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n) |
WiFi Range |
2 Bedroom Houses
2× Fixed Antennas (Internal) |
WiFi Capacity |
Medium
Dual-Band Allocate devices to different bands for optimal performance |
Working Modes |
Router Mode Access Point Mode Range Extender Mode Client Mode Hotspot Mode (WISP Mode) |
HARDWARE | |
Processor | Single-Core CPU |

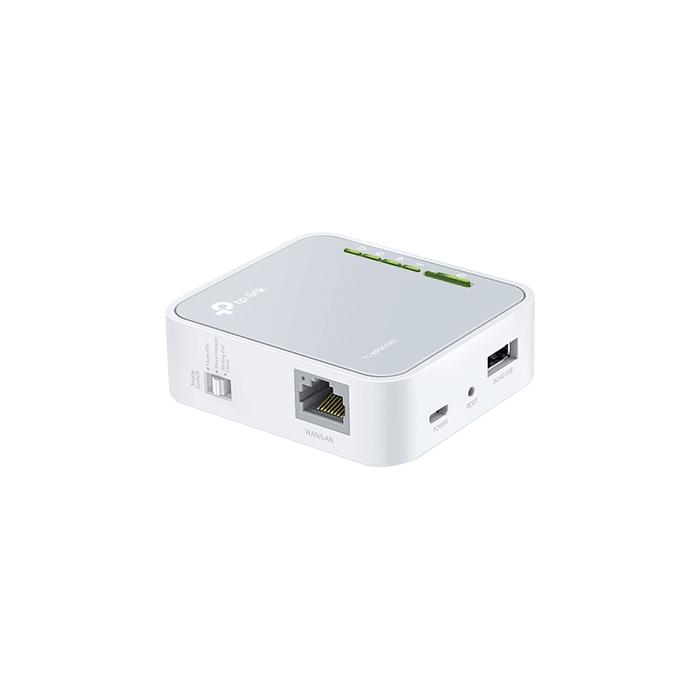

Ethernet Ports | 1× 10/100 Mbps WAN/LAN Port |
USB Support |
1× USB 2.0 Port Supported Partition Formats: NTFS, FAT32 Supported Functions: FTP Server Media Server |
Buttons |
Reset Button Mode Switch |
Power | 5 V ⎓ 2 A |
SECURITY | |
WiFi Encryption |
WEP WPA WPA2 |
Network Security |
SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
Guest Network |
1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
SOFTWARE | |
Protocols |
IPv4 IPv6 |
Parental Controls |
URL Filtering Time Controls |
WAN Types |
Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service | QoS by Device |
NAT Forwarding |
Virtual Server Port Forwarding Port Triggering DMZ UPnP |
IPTV | IGMP Proxy |
DHCP |
Address Reservation DHCP Client List Server |
DDNS |
NO-IP Comex DynDNS |
Management |
Tether App Webpage Check Web Emulator> |
PHYSICAL | |
Dimensions (W×D×H) |
2.91 × 2.64 × 0.87 in (74 × 67 × 22mm) |
Weight | 56.7 g |
Package Contents |
Wi-Fi Router TL-WR902AC Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
OTHER | |
System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Certifications | FCC, CE, RoHS |
Environment |
Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TEST DATA | |
WiFi Transmission Power |
CE: <20dBm(2.4GHz) <23dBm(5GHz) |
WiFi Reception Sensitivity |
11a 54M: -76dBm; 11ac VHT20 MCS8: -70dBm; 11ac VHT40 MCS9: -65.5dBm; 11ac VHT80 MCS9: -61.5dBm 2.4GHz: 11g 54M: -76dBm11n; HT20 MCS7: -74dBm; 11n HT40 MCS7: -71dBm |
