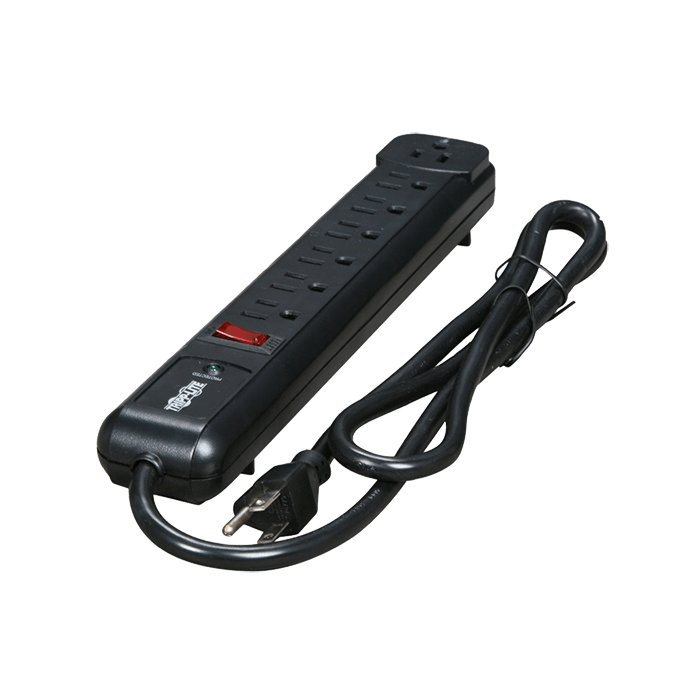

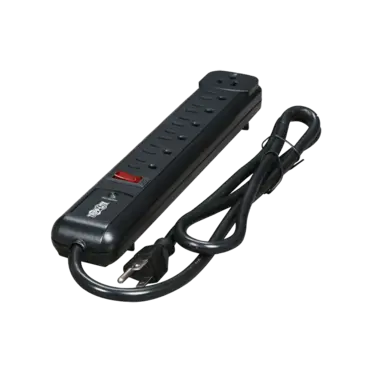

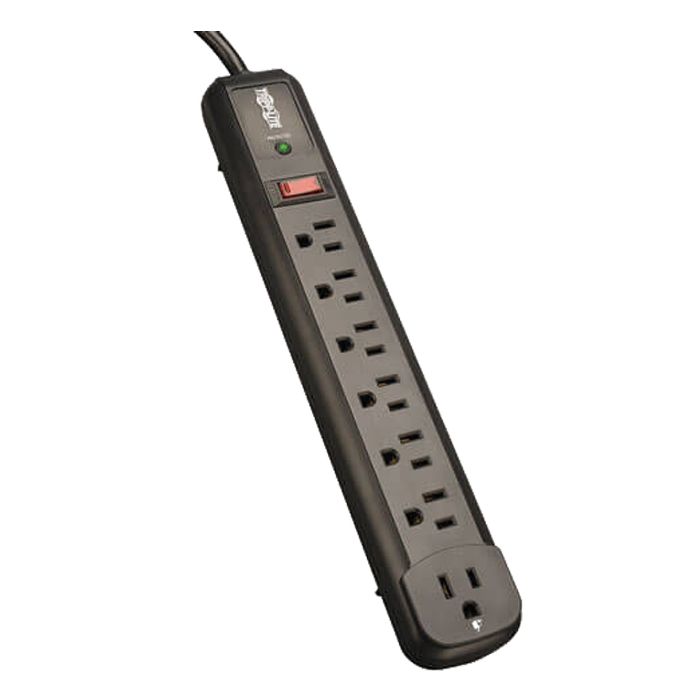

Tripp Lite's TLP74RB offers economical AC surge suppression for protection of workstations, desktop PCs, telecom systems and other sensitive electronics. Built-in AC surge suppression shields connected equipment from damage and performance problems due to transient surges. TLP74RB offers 7 total outlets (6 at right angle and 1 designated transformer plug outlet), 4 foot cord and diagnostic LED to warn of suppressor damage. AC suppression rated at 1080 joules shields equipment from surges and line noise. Attractive black housing with keyhole mounting tabs offering convenient protection of desktop computer equipment and accessories. $25,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).
Output | |
Frequency Compatibility | 60 Hz |
Output Receptacles | (7) 5-15R |
Output (Watts) | 1800 |
Circuit Breaker (amps) | 15 |
Transformer Accommodation | Supports 1 large transformer plug accessory without covering remaining outlets |
Outlet Orientation | Single row |
Input | |
Nominal Input Voltage(s) Supported | 120V AC |
Recommended Electrical Service | 120V (110-125V) |
Input Connection Type | NEMA 5-15P |
Input Cord Length (ft.) | 4 |
Input Cord Gauge Type | 14 gauge, SJT |
Voltage Compatibility (VAC) | 120 |
Maximum Surge Amps | 36000 |
Physical | |
Shipping Dimensions (hwd / in.) | 14.05 x 3.26 x 1.37 |
Shipping Weight (lbs.) | 1.10 |
Unit Dimensions (hwd / in.) | 1.33 x 2.04 x 12.4 |
Unit Weight (lbs.) | 1.04 |
Material of Construction | Plastic |
Integrated Keyhole Mounting Tabs | Keyhole mounting tabs enable wall mounting |
Housing Color | Black |
Receptacle Color | Black |
Color (AC Line Cord) | Black |
Outlets Measurement (Center to Center) | 28.5mm |
Keyhole Slot Mounting Measurement (Center to Center) | 207mm |
