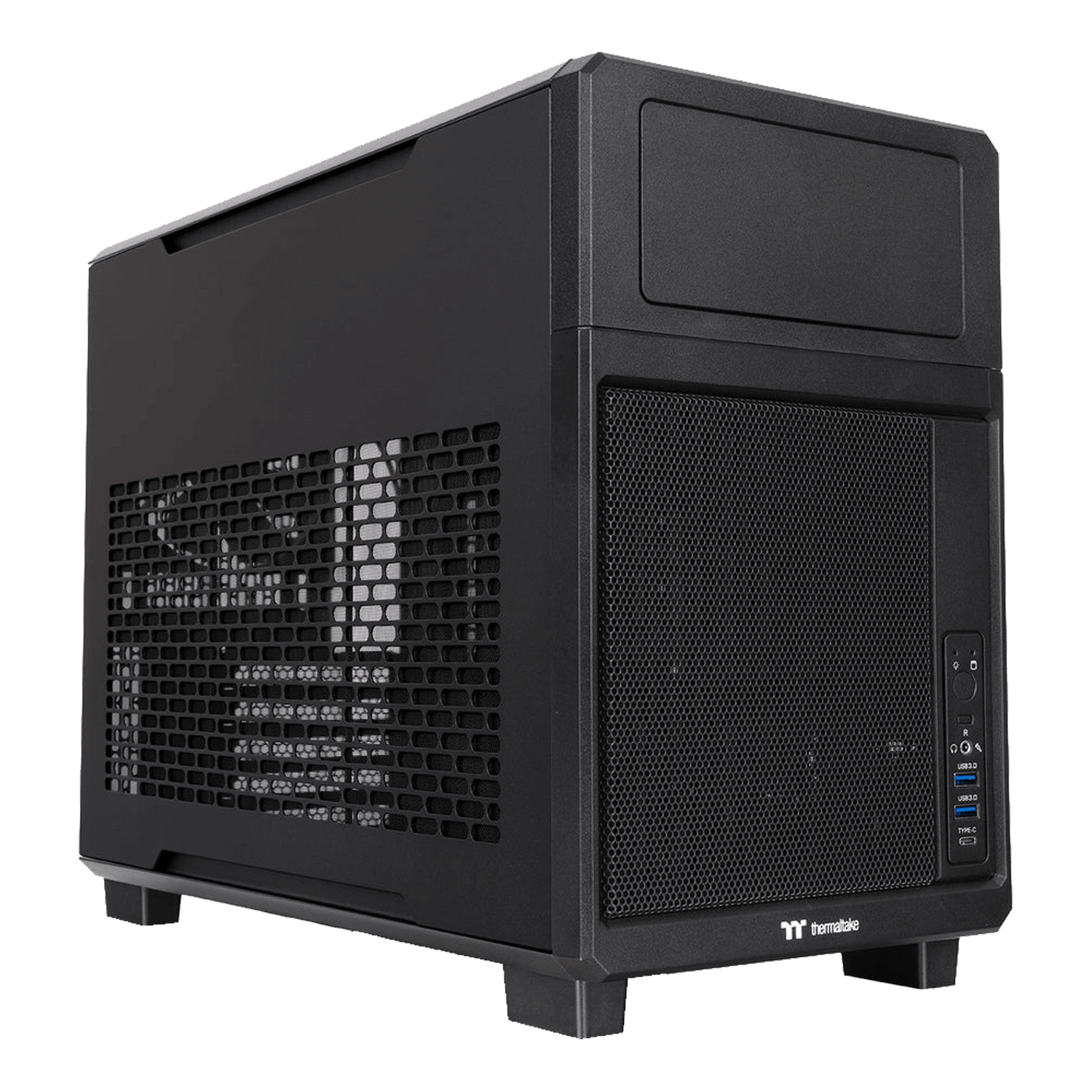

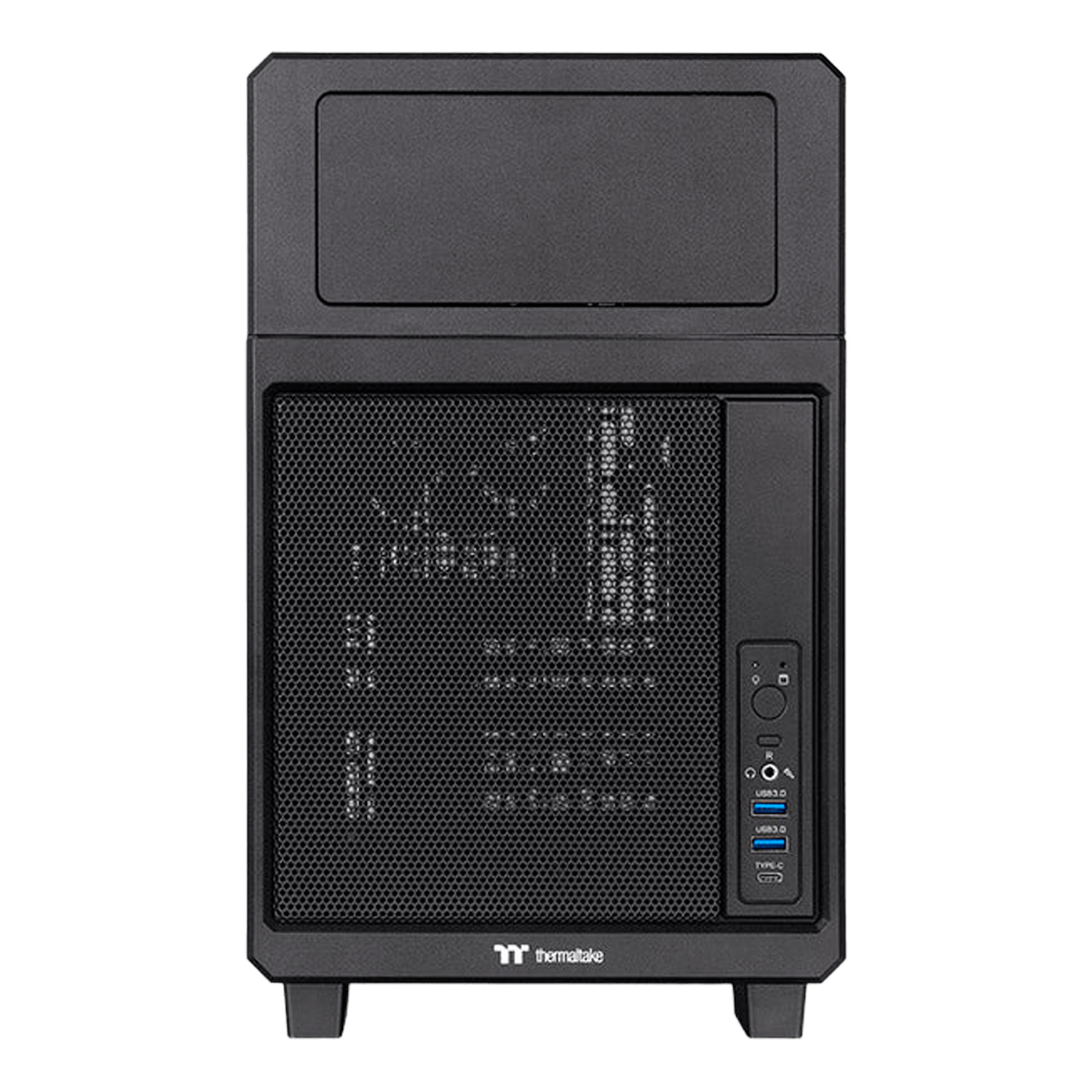

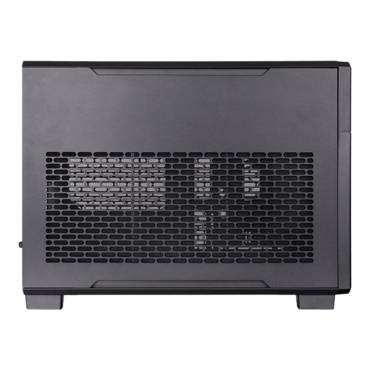

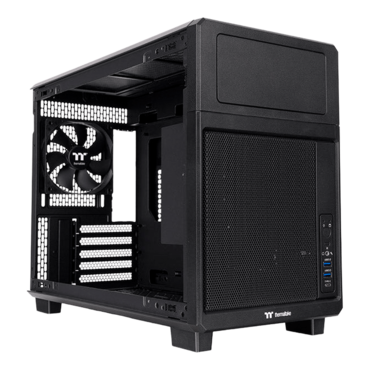

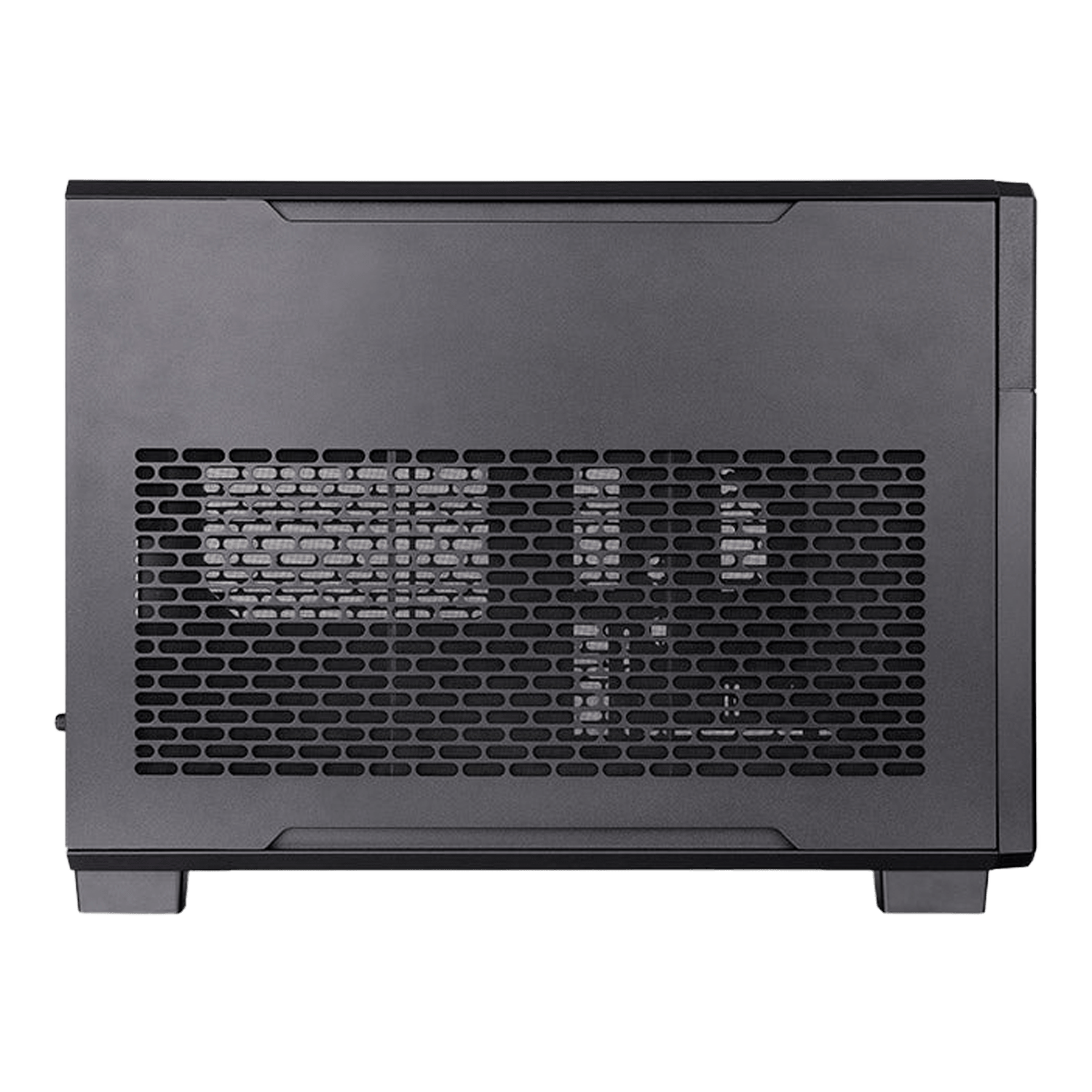

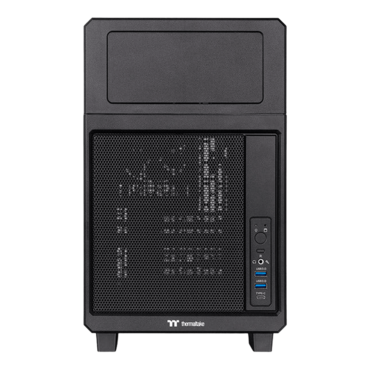

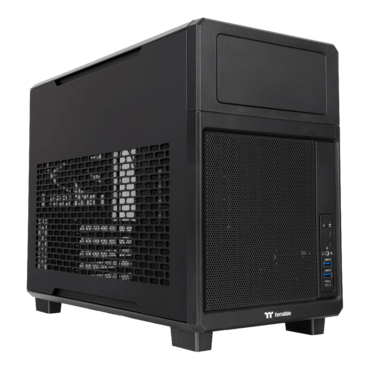

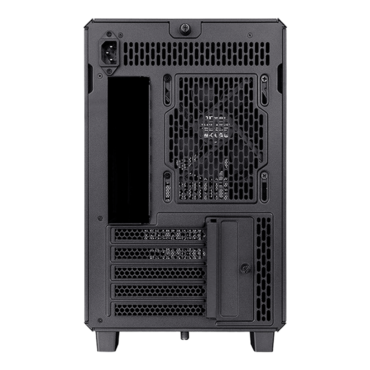

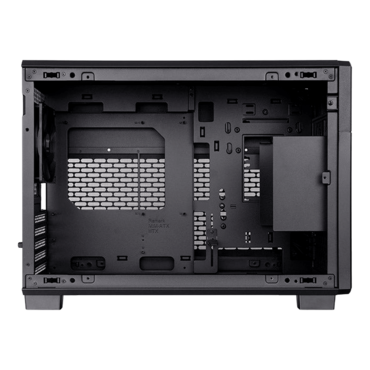

TR200, Mesh Panel, No PSU, microATX, Black, Mini Tower Case
- SKU: 20101530
- Manufacturer: THERMALTAKE
- MPN: CA-11L-00S1NN-00
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
-
Portable Micro-ATX Design with Full-Size Hardware Support
Built for Micro-ATX and Mini-ITX systems with room for up to 365mm GPUs, 175mm CPU coolers, and 258mm PSUs. -
Flexible Cooling Layout
Supports up to seven 120mm fans and up to a 360mm top radiator for high-airflow or liquid-cooled builds. -
5.25” Expansion Ready
Adds support for optical drives, hot-swap storage, fan controllers, or other 5.25” accessories. -
Smart Personalization Ready
Upgrade with the optional 6.0” LCD Screen Kit to display system stats, custom images, and GIFs through TT RGB PLUS 3.0. -
Build-Friendly Convenience
Features easy-access panels, removable dust filters, and an adjustable GPU support brace for easier building and maintenance.
| P/N | CA-11L-00S1NN-00 |
| Series | TR Series |
| Case Type | Micro Case |
| Dimensions | 364 x 220 x 494 mm (14.33 x 8.66 x 19.45 inch) |
| Side Panel | Steel |
| Color | Black |
| Material | SPCC |
| Cooling System | Rear(exhaust): 120 x 120 x 25 mm Standard fan (1400rpm, 23.2 dBA) x 1 |
| Expansion Slots | 5 |
| Motherboard | 6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Top: 3 x 120mm |
| Radiator Support | Top(AIO) : 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear(AIO) : 1 x 120mm |
| Clearance | CPU cooler height limitation: 175mm VGA length limitation: 365mm PSU length limitation: 258mm |
