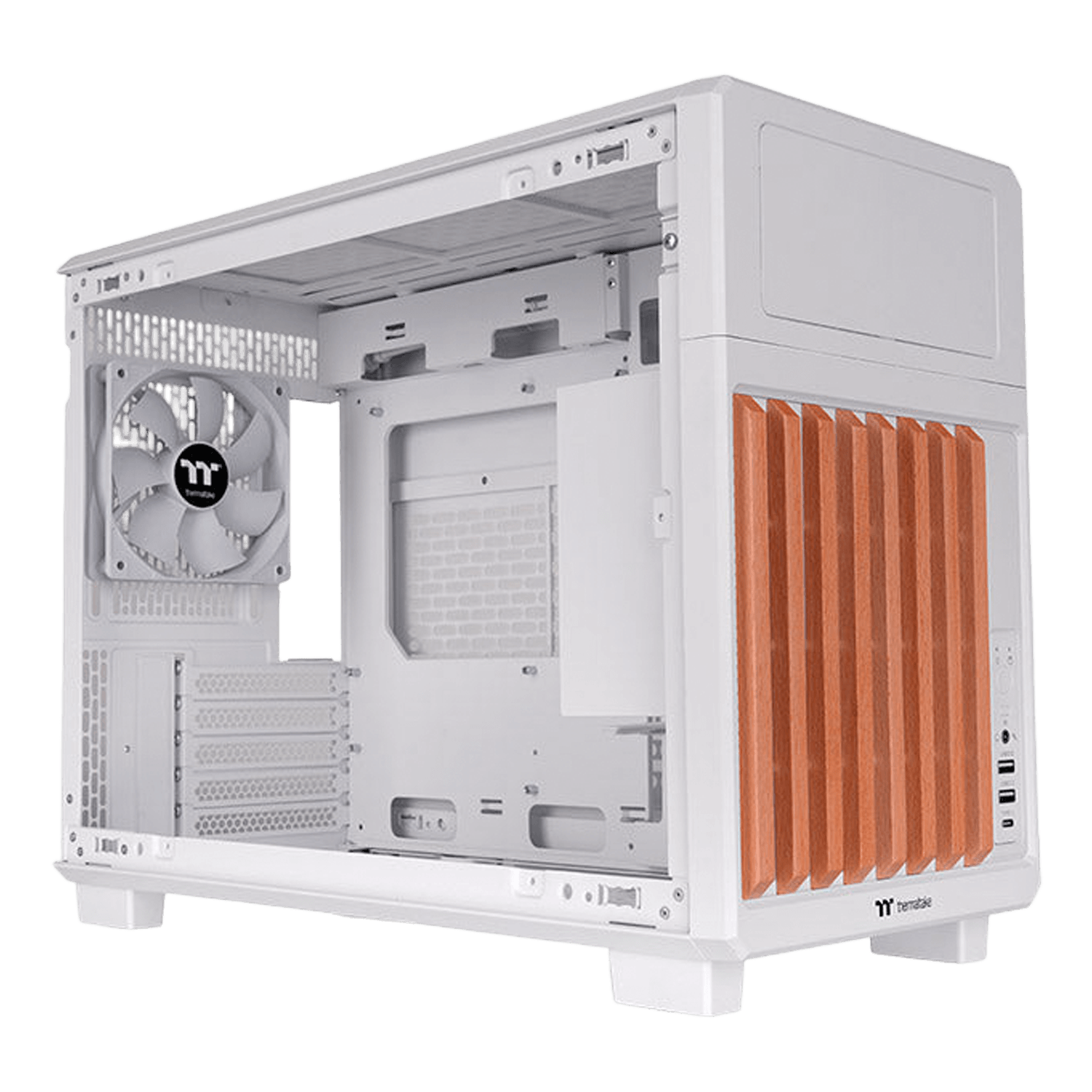

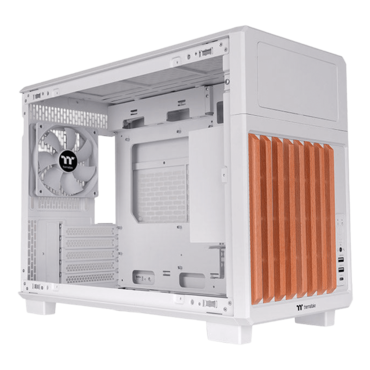

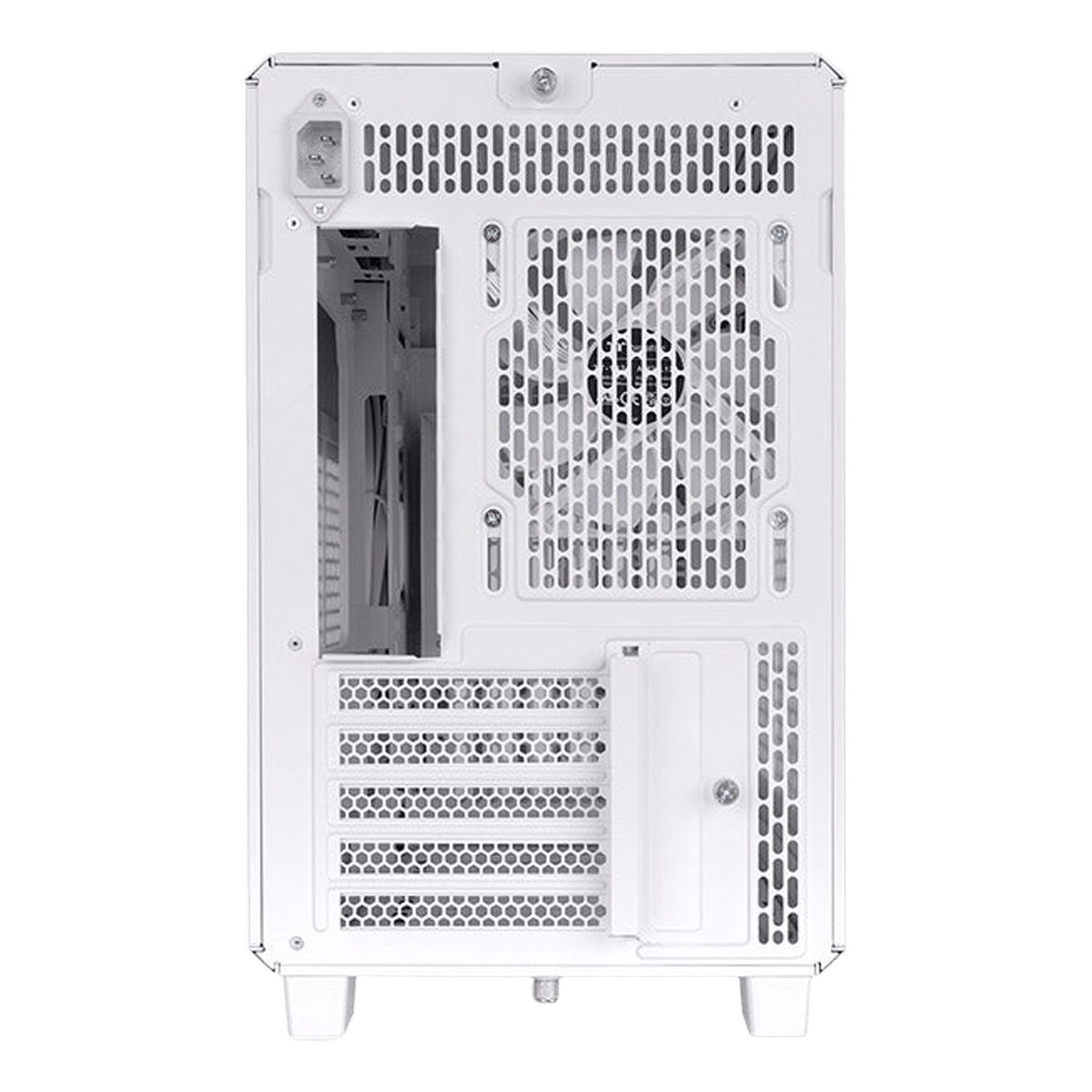

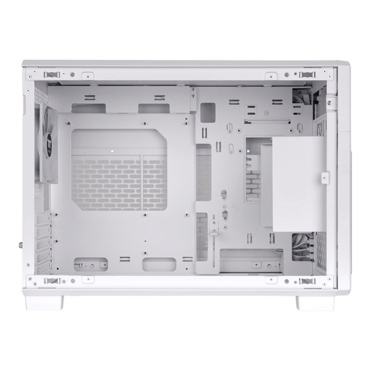

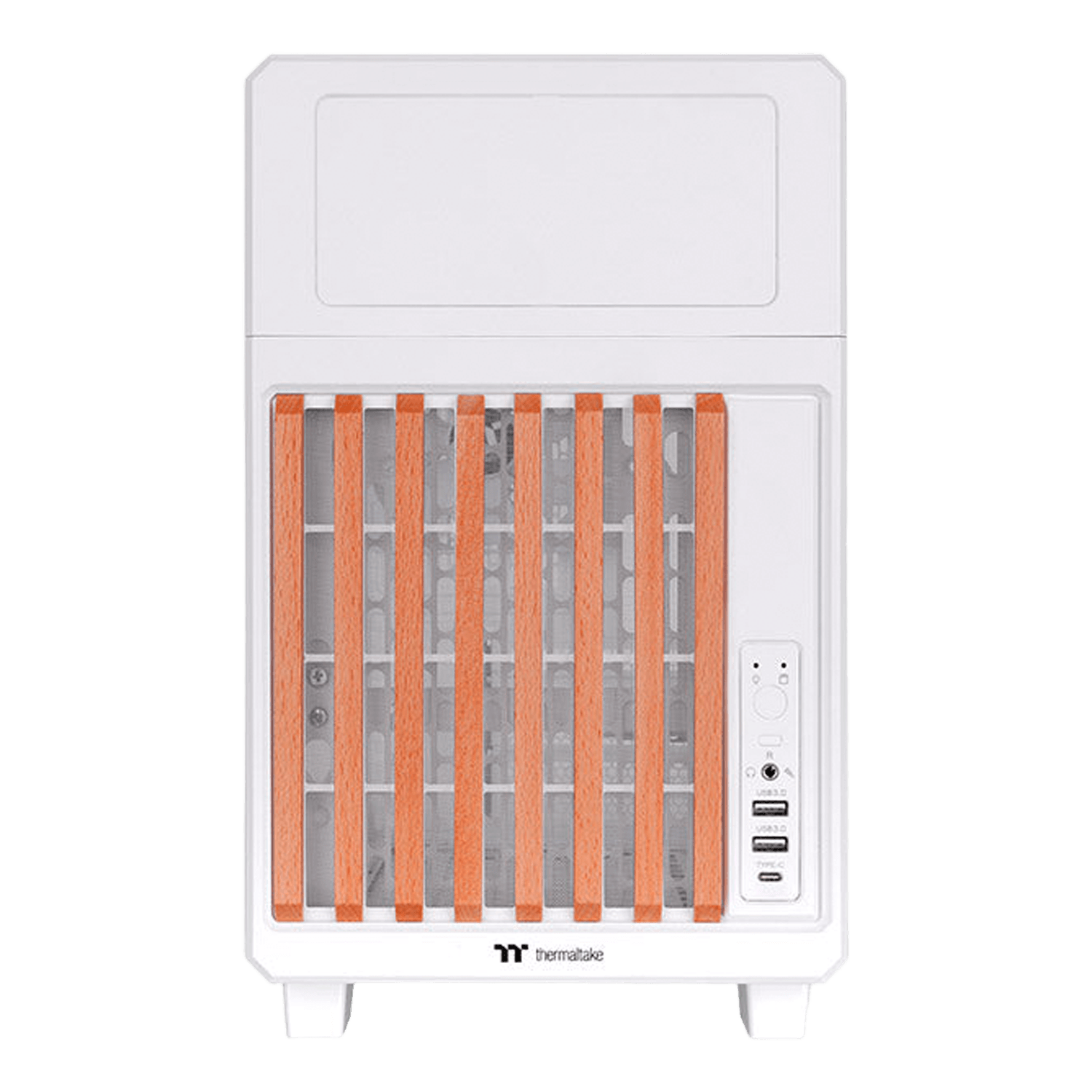

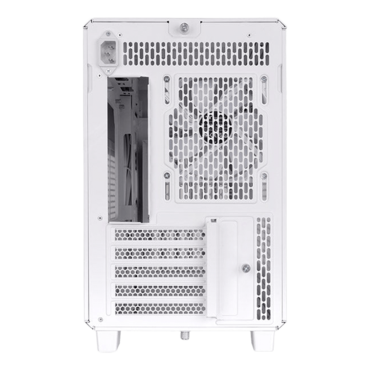

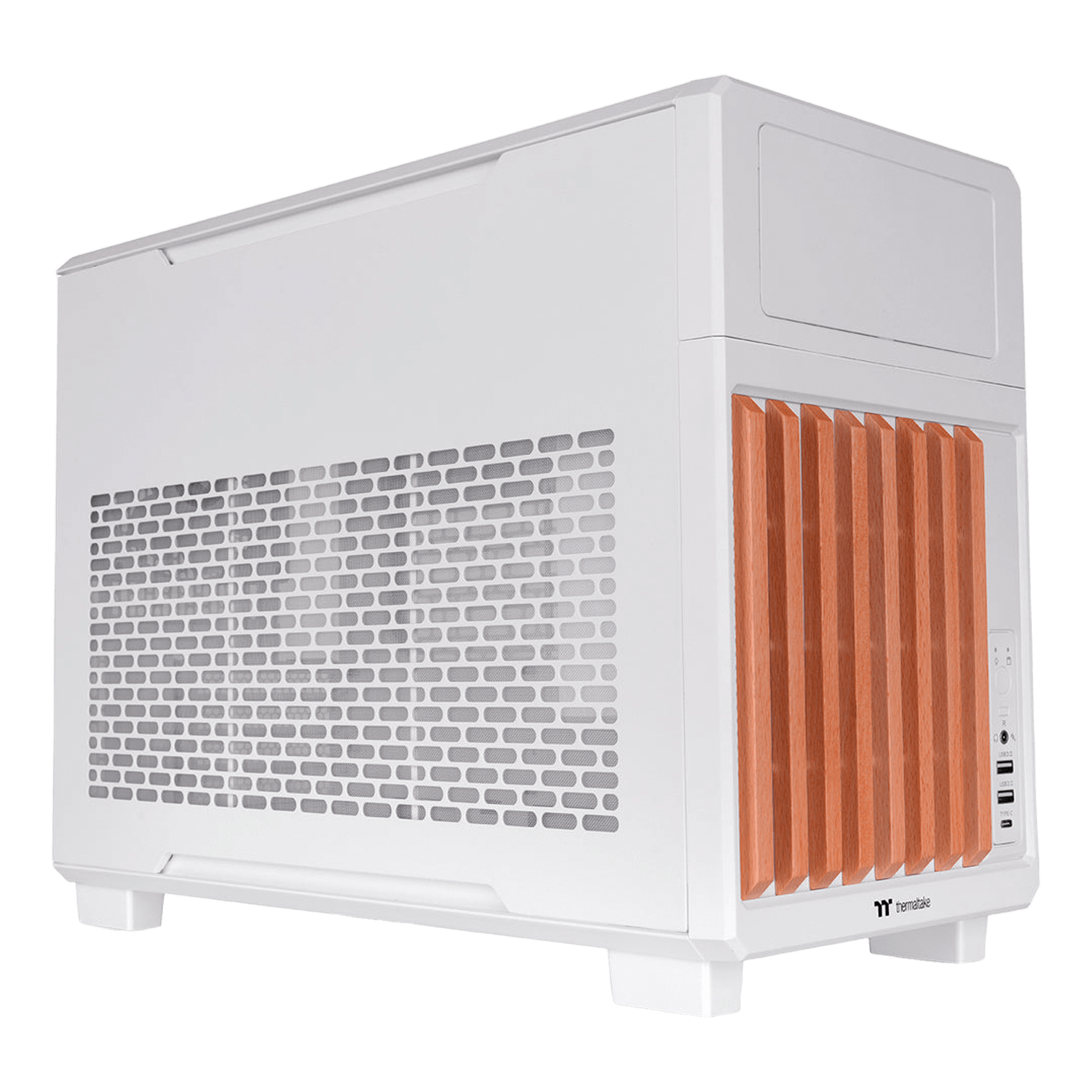

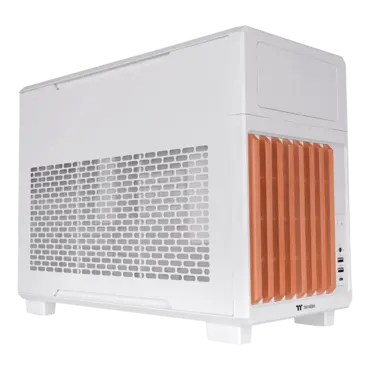

TR200 WS, Mesh Panel, No PSU, microATX, Snow, Mini Tower Case
- SKU: 20152862
- Manufacturer: THERMALTAKE
- MPN: CA-11L-00S6NN-WS
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
TR200 WS, Mesh Panel, No PSU, microATX, Snow, Mini Tower Case

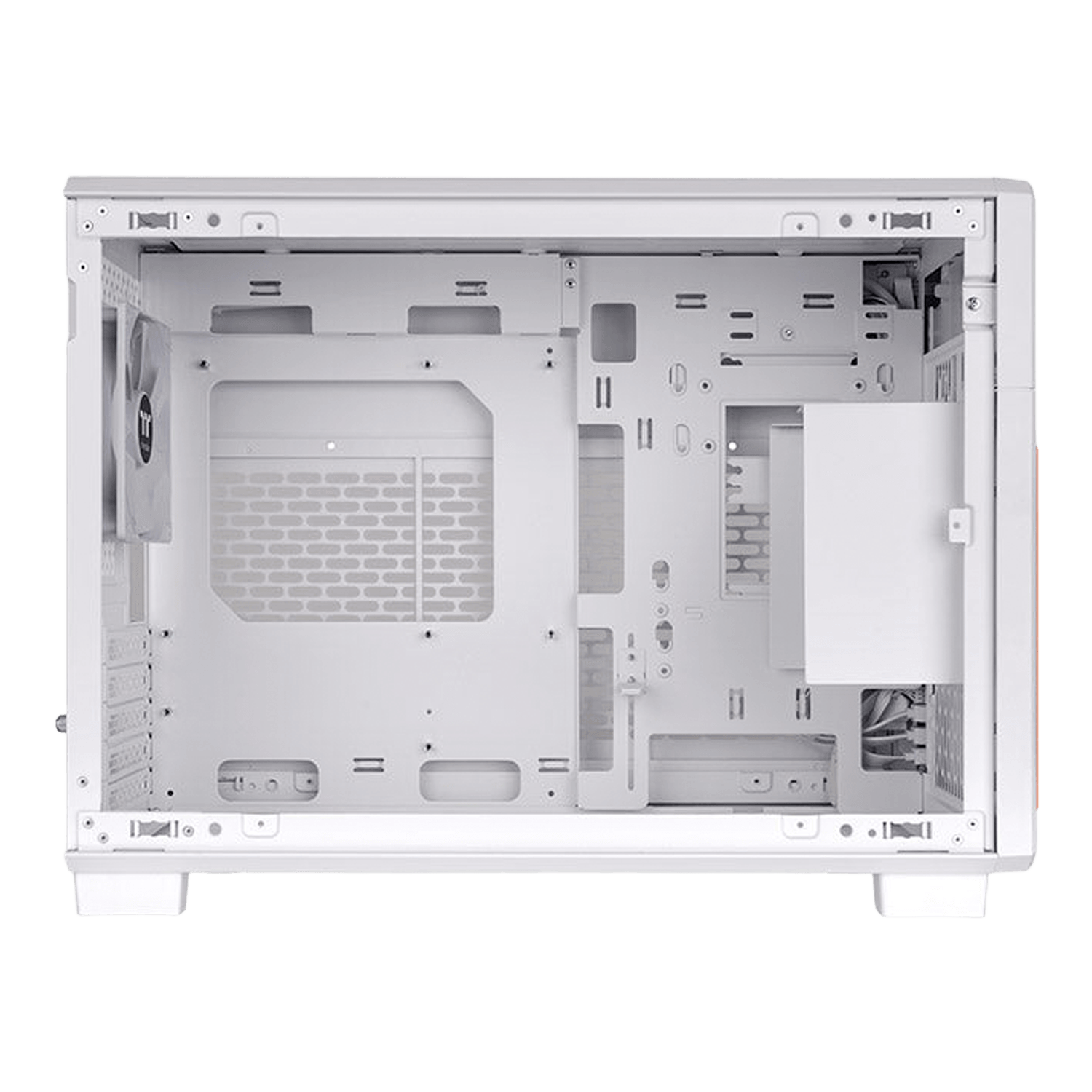

Designed to offer more space for components and building than a dedicated SFF chassis while still maintaining a portable design, the TR200 WS is a perfect combination. Accommodating mATX & mITX boards, 360mm radiators, 365mm GPUs, air coolers up to 175mm in height, power supplies up to 365mm in length, and even a 5.25 bay mount. With enough space for up to 7x120mm fans in the chassis to provide options for intake and exhaust, with a single 120mm PWM fan preinstalled on the rear of the chassis.
Designed to offer more space for components and building than a dedicated SFF chassis while still maintaining a portable design, the TR200 WS is a perfect combination. Accommodating mATX & mITX boards, 360mm radiators, 365mm GPUs, air coolers up to 175mm in height, power supplies up to 365mm in length, and even a 5.25 bay mount. With enough space for up to 7x120mm fans in the chassis to provide options for intake and exhaust, with a single 120mm PWM fan preinstalled on the rear of the chassis.
| P/N | CA-11L-00S6NN-WS |
| Series | TR Series |
| Case Type | Micro Case |
| Dimensions | 364 x 220 x 494 mm (14.33 x 8.66 x 19.45 inch) |
| Side Panel | Steel |
| Color | Snow |
| Material | SPCC |
| Cooling System | Rear(exhaust): 120 x 120 x 25 mm Standard fan (1400rpm, 23.2 dBA) x 1 |
| Expansion Slots | 5 |
| Motherboard | 6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX) |
| I/O Port | USB 3.1 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Top: 3 x 120mm, 2x 120mm ,1x 120mm 2 x 140mm, 1 x 140mm Rear: 1 x 120mm Bottom: 3x 120mm, 2x 120mm, 1x 120mm |
| Radiator Support | Top(AIO) : 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear(AIO) : 1 x 120mm |
| Clearance | CPU cooler height limitation: 175mm VGA length limitation: 365mm PSU length limitation: 258mm |
