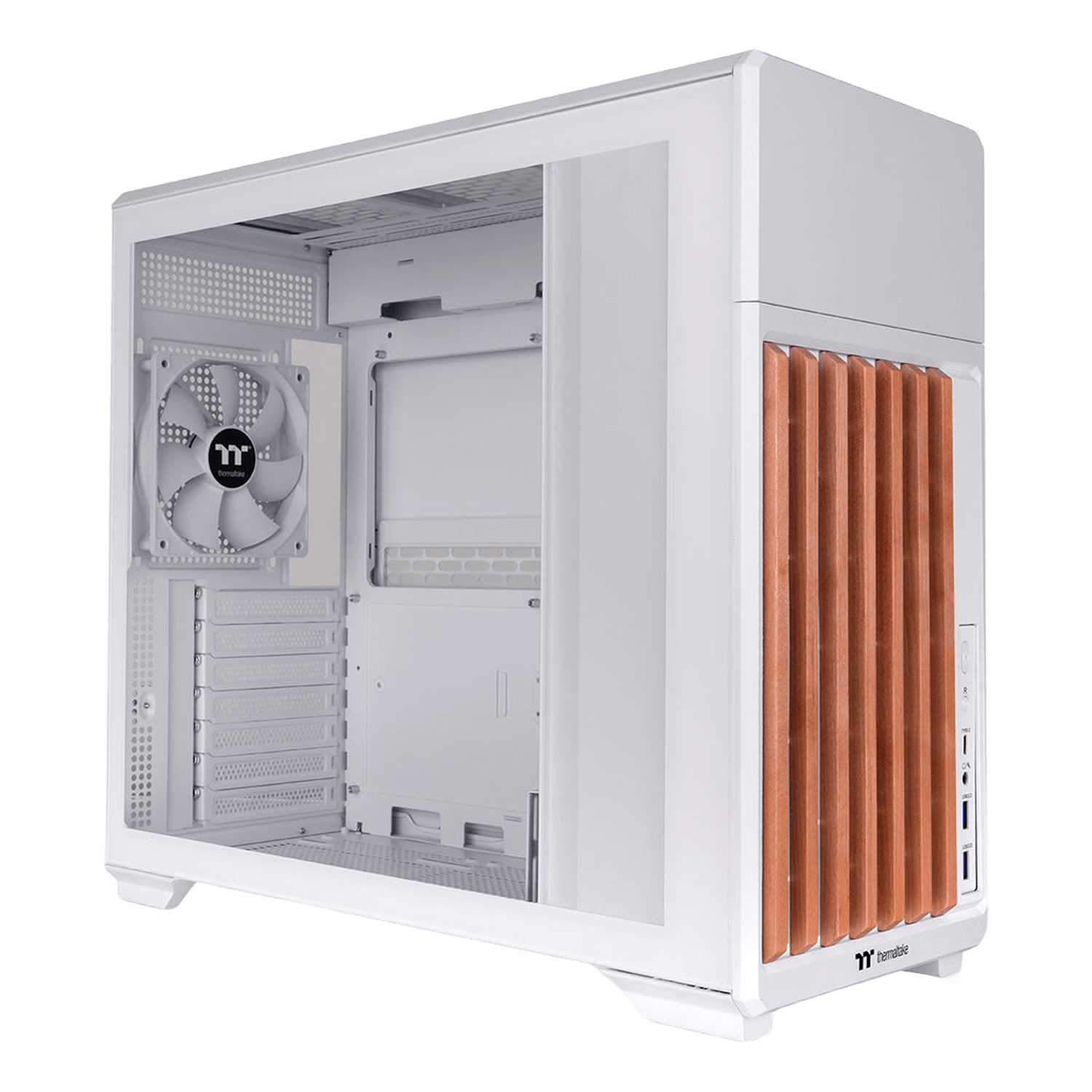

TR300 WS, Tempered Glass, No PSU, ATX, Snow, Mid Tower Case
- SKU: 20152859
- Manufacturer: THERMALTAKE
- MPN: CA-11M-00M6WN-WS
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
TR300 WS, Tempered Glass, No PSU, ATX, Snow, Mid Tower Case
Designed to perform as a compact mid tower while still offering plenty of space to build the TR300 WS merges a small footprint with a full-size PC. Accented with a vertical slant front stained wood trim to add some extra style. In terms of space the TR300 WS can fit ATX/mATX/mITX motherboards, 410mm GPUs, 360mm radiators, and up to eight 120mm fans. For some extra upgrades there is the 6.0 inch LCD Screen Kit for custom pictures, GIF, and even real-time system info. (6.0 Screen Sold Separately)
Designed to perform as a compact mid tower while still offering plenty of space to build the TR300 WS merges a small footprint with a full-size PC. Accented with a vertical slant front stained wood trim to add some extra style. In terms of space the TR300 WS can fit ATX/mATX/mITX motherboards, 410mm GPUs, 360mm radiators, and up to eight 120mm fans. For some extra upgrades there is the 6.0 inch LCD Screen Kit for custom pictures, GIF, and even real-time system info. (6.0 Screen Sold Separately)
| P/N | CA-11M-00M6WN-WS |
| Series | TR Series |
| Case Type | Mid Tower |
| Dimensions | 419 x 205 x 467 mm (16.5 x 8.07 x 18.39 inch) |
| Side Panel | 3 mm Tempered Glass x 1 |
| Color | Snow |
| Material | SPCC |
| Cooling System | Rear(exhaust): 120 x 120 x 25 mm Standard Fan (1400rpm, 23.2 dBA) x 1 |
| Expansion Slots | 7 |
| Motherboard | 6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX) |
| I/O Port | USB 3.1 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 1 x 120mm Top: 3 x 120mm, 2x 120mm |
| Radiator Support |
Top (AIO) : 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear (AIO) : 1 x 120mm |
| Clearance |
CPU cooler height limitation: 165mm VGA length limitation: 410mm (PSU length≤160mm) PSU length limitation: 260mm(VGA length<325mm) 160mm(VGA length>325mm) |
