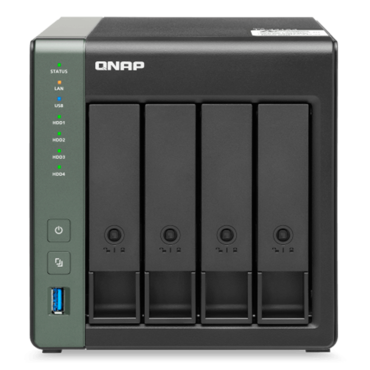

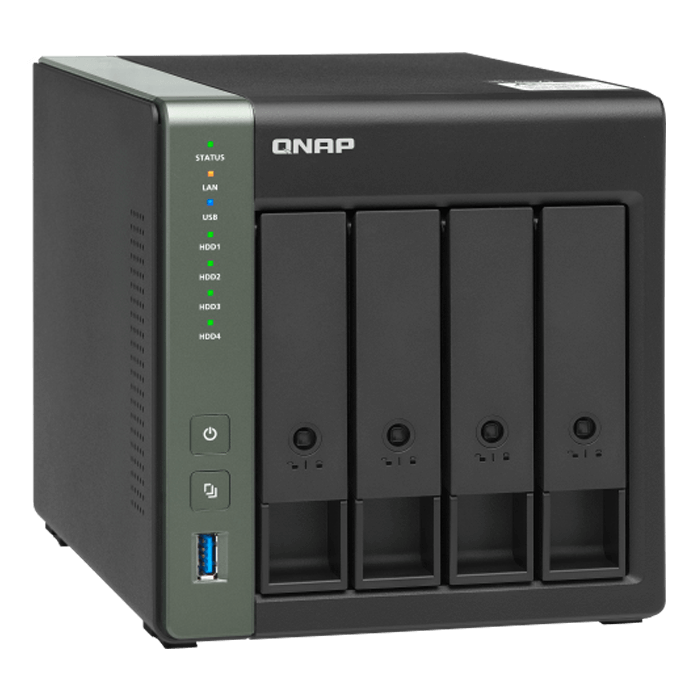

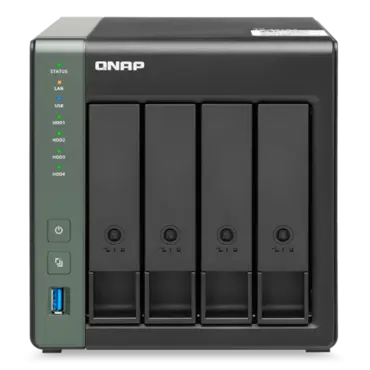

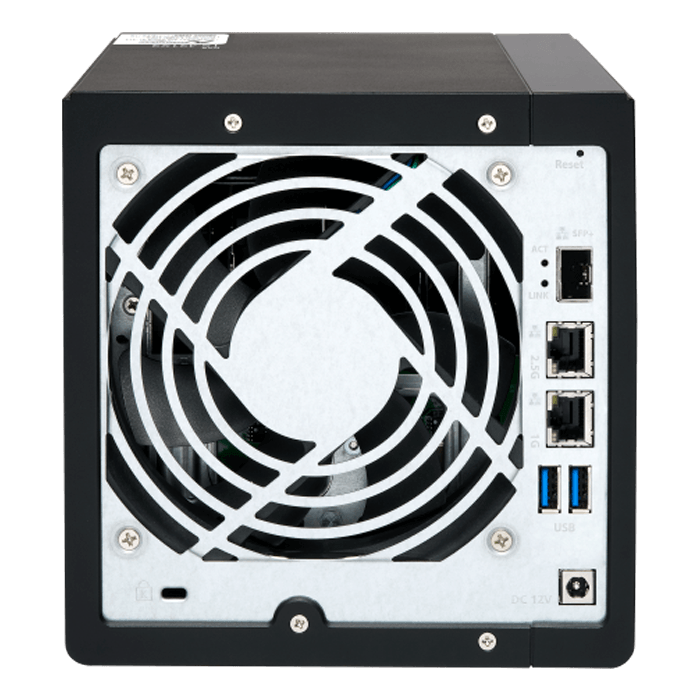

TS-431X3-4G, 4-bay NAS Server, Alpine AL314, 4-core 1.7GHz processor, 8GB DDR3 RAM (4GB pre-installed), SATA 6Gb/s, 2.5 GbLAN, 1GbLAN, USB 3.2 Gen 1 / 3, 90W PSU
Quantity:
- SKU: 13543996
- Manufacturer: QNAP
- MPN: TS-431X3-4G-US
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$657.67
| CPU | AnnapurnaLabs, an Amazon company Alpine AL314, 4-core, 1.7GHz |
| CPU Architecture | 32-bit ARM |
| Floating Point Unit | ✔ |
| Encryption Engine | ✔ |
| System Memory | 4 GB SODIMM DDR3 (1 x 4 GB) |
| Maximum Memory | 8 GB (1 x 8 GB) |
| Memory Slot | 1 x SODIMM DDR3 |
| Flash Memory | 512 MB (Dual boot OS protection) |
| Drive Bay | 4x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility |
3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | ✔ |
| SSD Cache Acceleration Support | ✔ |
| Gigabit Ethernet Port (RJ45) | 1 |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 1(2.5G/1G/100M) |
| 10 Gigabit Ethernet Port | 1 x 10GbE SFP+ |
| Wake on LAN (WOL) |
Only the 1GbE port
|
| Jumbo Frame | ✔ |
| USB 3.2 Gen 1 port | 3 |
| Form Factor | Tower |
| LED Indicators | Power, Status, LAN, USB, HDD1-4 |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 169 × 160 × 219 mm |
| Weight (Net) | 2.01 kg |
| Weight (Gross) | 3.47 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit |
90W adapter (12VDC), 100-240VAC |
| Fan | 1 x 120mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | ✔ |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 400 |
